CM30G-MN (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CM3#,KM3#,YM3#

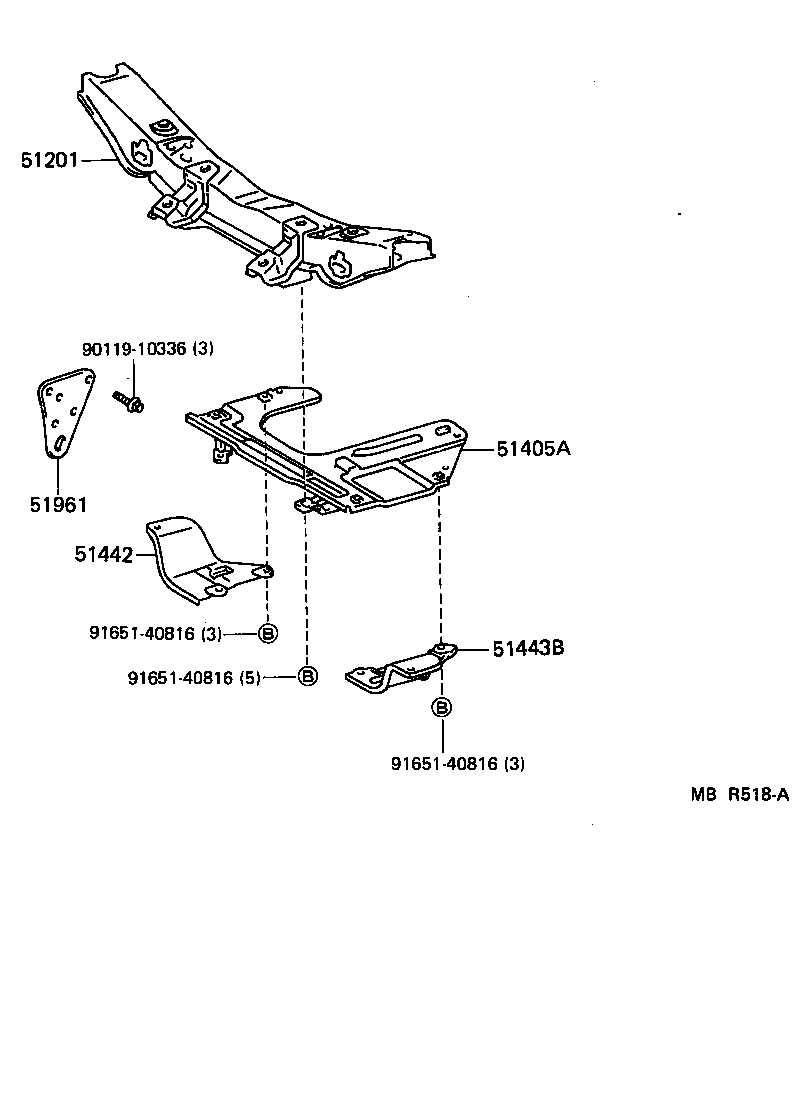

Click highlighted areas on diagram

diagram 51201 51405A 51442 51443B 51961 9011910336 9165140816 9165140816 9165140816
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-95702

CM3#,KM30,31,36,YM31..DLX,LD,SSW,SUP,SW

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
51203-95703

CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW

 1
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-95707

CM3#

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-95700

CM3#,KM3#,YM3#

 1
51443B - COVER, ENGINE UNDER, NO.3
51443-95700

CM3#,KM3#,YM3#

 1
51961 - HOOK, NO.1
51961-95700

CM3#,KM3#,YM3#

 2
Common parts
90119-10336
91651-40816
