CM30G-MGS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

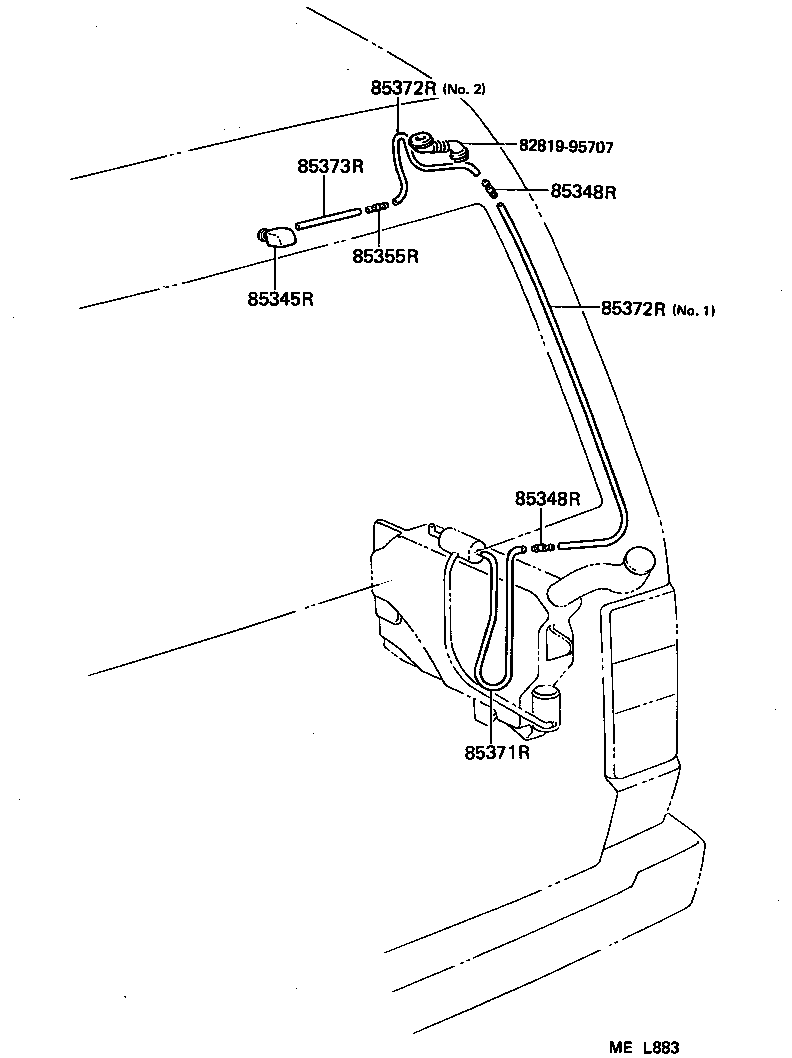

Click highlighted areas on diagram

diagram 8281995707 85345R 85348R 85348R 85355R 85371R 85372R 85372R 85373R
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85035-95712

CM3#,4#,KM3#,YM3#,40..HRF,MRF

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

CM3#,4#,KM3#,YM3#,40..HRF,MRF

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

CM3#,4#,KM3#,YM3#,40..HRF,MRF

 2
85355R - VALVE, REAR WASHER HOSE
85031-12250

KM31;CM3#,4#,KM30,35,36,YM30,40..HRF,MRF

 1
85031-12250

CM3#,4#,KM3#,YM30,40

 1
85031-12250

KM31,YM31..SUP;CM3#,4#,KM30,36,YM30,40..HRF,MRF

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06013

CM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,SCA,SUC,SUP

*H,L=530

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90445-08226

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

長さ=200,NO.2

 1
90446-06013

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

*H,L=950,NO.1

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90445-08226

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

長さ=200,NO.2

 1
90446-06013

CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC

*H,L=950,NO.1

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-07001

CM30,31,40,KM30,36,YM3#,40..FXV,GXL,SCA,SUC,SUP

*H,L=230

 1
90446-07001

CM30,31,40,KM30,36,YM3#,40..FXV,GXL,SCA,SUC,SUP

*H,L=215

 1
Common parts
82819-95707
