CM30G-MGS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

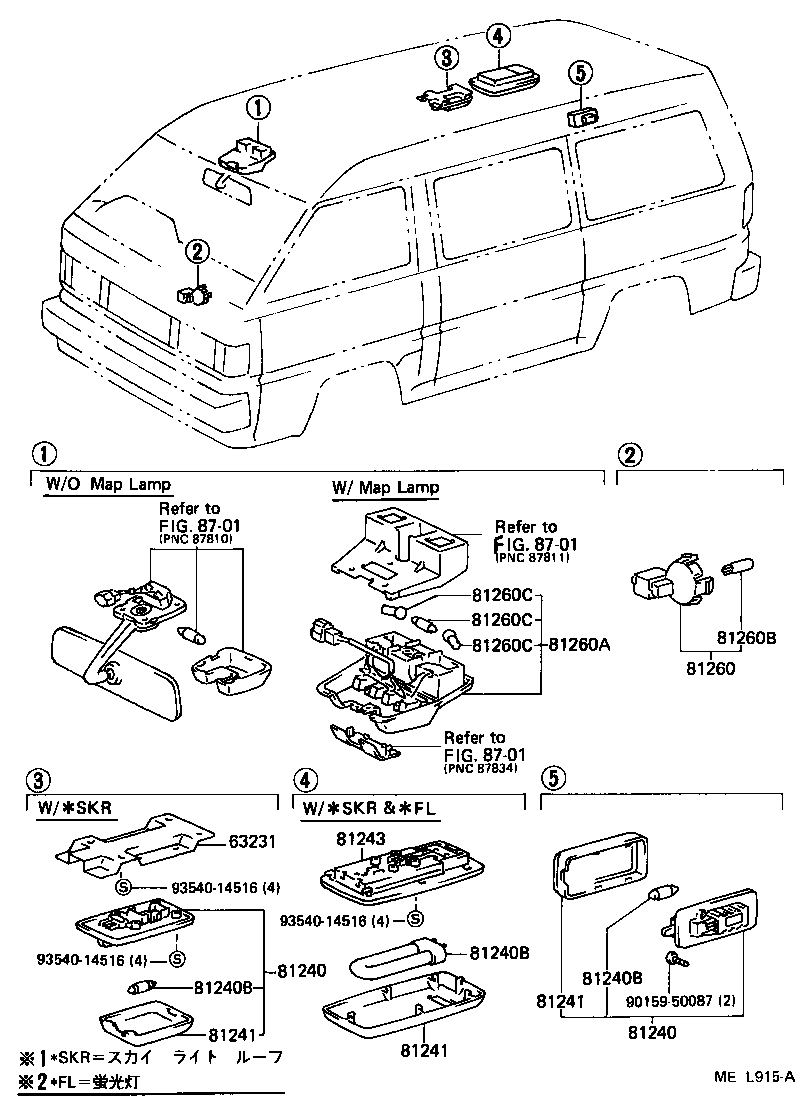

Click highlighted areas on diagram

diagram 63231 81240 81240 81240B 81240B 81240B 81241 81241 81241 81243 81260 81260A 81260B 81260C 81260C 81260C 8701 8701 8701 9015950087 9354014516 9354014516 9354014516
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-9570803

CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

GRAY,TRIM1#

 1
81240-9570806

CM30..5F..GXL;CM30..SUC..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SCA,SUC

SABLE,TRIM4#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-9570803

CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

GRAY,TRIM1#

 1
81240-9570806

CM30..5F..GXL;CM30..SUC..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SCA,SUC

SABLE,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11004

CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11004

CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11004

CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-95013

CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

 1
81241 - LENS, ROOM LAMP, NO.1
81241-95013

CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

 1
81241 - LENS, ROOM LAMP, NO.1
81241-95013

CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

 1
Common parts
90159-50087
93540-14516
Linked diagrams
8701
