CM30G-MGS (1988)
Toyota Liteace Van,Wagon

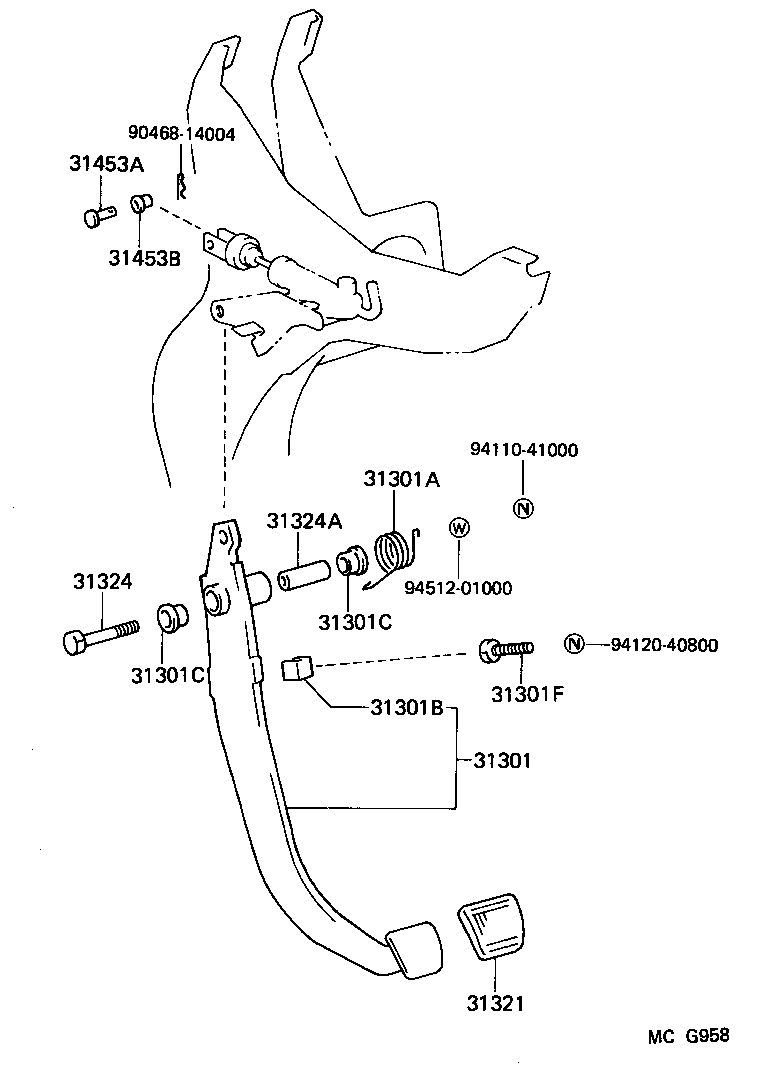

ILLUST NO. 1 OF 3(8808- )5F,5H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-27151 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-32002 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 47131-10020 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
CM3#,4#,KM3#,YM3#,40..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
CM3#,4#,KM3#,YM3#,40..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51060 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
CM3#,4#,KM3#,YM3#,40..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| Common parts | ||||
| 90468-14004 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||

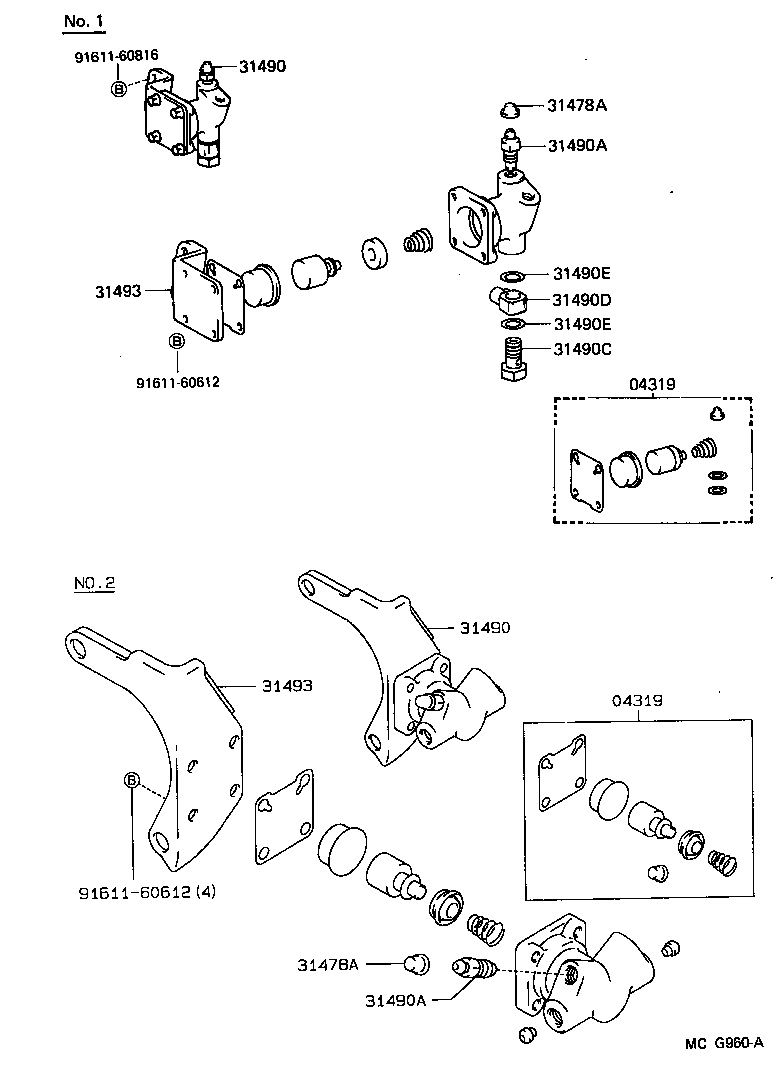

ILLUST NO. 3 OF 3(8808- )CM3#,4#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04319 - CUP KIT, CLUTCH ACCUMULATOR | ||||
| 04319-27010 |
CM3#,41..5F..DSL |
1 | ||
| 04319-27020 |
CM3#,41..5F..DSL |
1 | ||
| 04319 - CUP KIT, CLUTCH ACCUMULATOR | ||||
| 04319-27010 |
CM3#,41..5F..DSL |
1 | ||
| 04319-27020 |
CM3#,41..5F..DSL |
1 | ||
| 31478A - CAP, BLEEDER PLUG(FOR CLUTCH ACCUMULATOR) | ||||
| 31478-30010 |
CM3#,41..5F..DSL |
1 | ||
| 31478A - CAP, BLEEDER PLUG(FOR CLUTCH ACCUMULATOR) | ||||
| 31478-30010 |
CM3#,41..5F..DSL |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-27030 |
CM3#,41..5F..DSL |
1 | ||
| 31490-27031 |
CM3#,41..5F..DSL |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-27030 |
CM3#,41..5F..DSL |
1 | ||
| 31490-27031 |
CM3#,41..5F..DSL |
1 | ||
| 31490A - PLUG, BLEEDER(FOR CLUTCH ACCUMULATOR) | ||||
| 47547-12010 |
CM3#,41..5F..DSL |
1 | ||
| 31490A - PLUG, BLEEDER(FOR CLUTCH ACCUMULATOR) | ||||
| 47547-12010 |
CM3#,41..5F..DSL |
1 | ||
| 31490C - BOLT, UNION(FOR CLUTCH ACCUMULATOR) | ||||
| 90401-12014 |
CM3#,4#..5F |
1 | ||
| 31490D - UNION(FOR CLUTCH ACCUMULATOR) | ||||
| 90404-12002 |
CM3#,4#..5F |
1 | ||
| 31490E - GASKET(FOR CLUTCH ACCUMULATOR) | ||||
| 90430-12221 |
CM3#,4#..5F |
2 | ||
| 31490E - GASKET(FOR CLUTCH ACCUMULATOR) | ||||
| 90430-12221 |
CM3#,4#..5F |
2 | ||
| 31493 - BRACKET, CLUTCH ACCUMULATOR | ||||
| 31493-27020 |
CM3#,41..5F..DSL |
1 | ||
| 31493 - BRACKET, CLUTCH ACCUMULATOR | ||||
| 31493-27020 |
CM3#,41..5F..DSL |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||

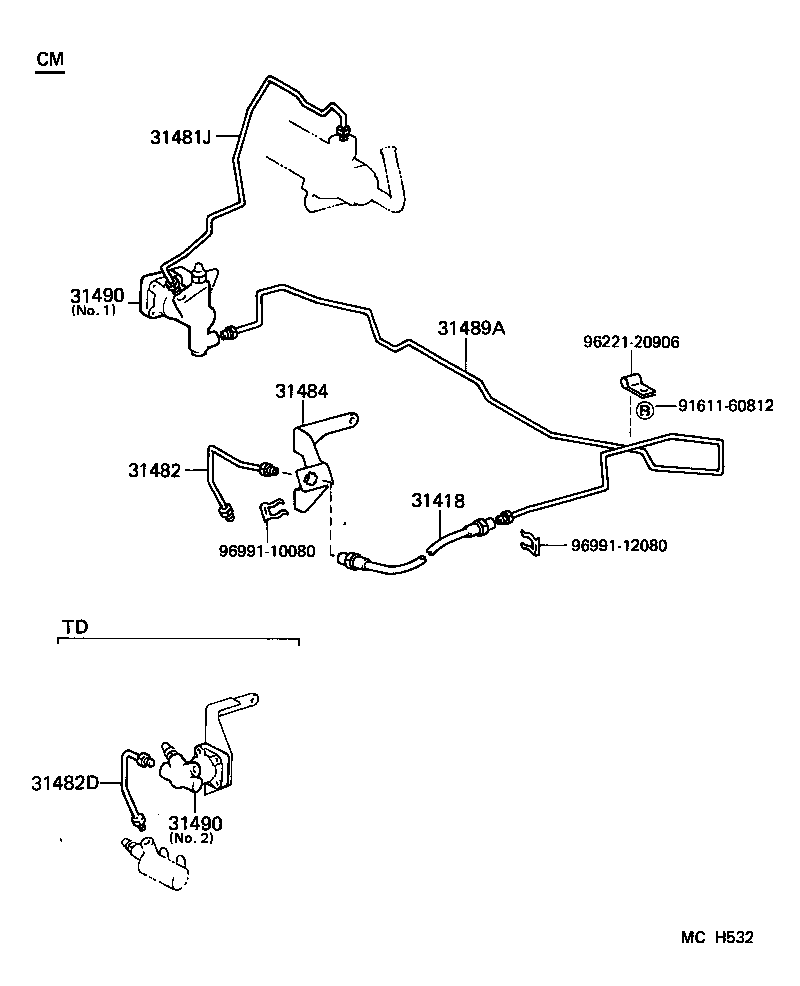

ILLUST NO. 2 OF 3(8808- )CM3#,4#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 31418-28020 |
CM36..V1..5F;CM30,31,41..5F..DSL |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-27070 |
CM3#,4#..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-27090 |
CM3#,41..5F..DSL |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-27040 |
CM3#,41..5F..DSL |
1 | ||
| 31489A - TUBE, 2 WAY TO FLEXIBLE HOSE | ||||
| 31489-27070 |
CM30,31..5F;CM36..V1..5F |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-27030 |
CM3#,41..5F..DSL |
1 | ||
| 31490-27031 |
CM3#,41..5F..DSL |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-27030 |
CM3#,41..5F..DSL |
1 | ||
| 31490-27031 |
CM3#,41..5F..DSL |
1 | ||
| Common parts | ||||
| 91611-60812 | ||||
| 96221-20906 | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
