Toyota Liteace van,wagon CM30 METER

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
99132-12034	CM3#,4#,KM3#,YM30,40 12V 3.4W,12V 3.4W	09/1985 - 08/1988	12
83100G - GLASS, COMBINATION METER
83134-95707	CM30,KM30,31,36..SCA,SUC,SUP,XL7	09/1985 - 08/1988	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040	CM3#,4#,KM3#,YM30,40 BULB:12V 3.4W	09/1985 - 08/1988	12
83101-20070	CM3#,4#,KM3#,YM30,40 BULB:GREEN CAP,12V 3.4W	09/1985 - 08/1988	4
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040	CM3#,4#,KM3#,YM30,40 BULB:12V 3.4W	09/1985 - 08/1988	12
83101-20070	CM3#,4#,KM3#,YM30,40 BULB:GREEN CAP,12V 3.4W	09/1985 - 08/1988	4
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95717	CM30..MRF..DSL	09/1985 - 08/1988	1
83109 - BULB, COMBINATION METER, NO.2
83109-24030	CM3#,4#,KM3#,YM30,40 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,GREEN CAP,12V 3.4W	09/1985 - 08/1988	4
83110 - SPEEDOMETER ASSY
83110-95732	CM30,KM30,31,36..FXV,GXL,SCA,SUC,SUP,XL7	08/1987 - 08/1988	1
83110-95717	CM30..MRF	09/1985 - 08/1987	1
83128 - KNOB, TRIP COUNTER
83128-95J00	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	1
83132 - CASE, COMBINATION METER
83132-95J05	CM30,KM30,31,36..SCA,SUC,SUP,XL7	09/1985 - 08/1988	1
83145 - LENS, METER, NO.1
83145-95735	CM30..MRF..DSL	09/1985 - 08/1988	1
83145A - LENS, METER, NO.2
83145-95G05	CM30,KM30,31,36,YM30..FXV,GXL,SCA,SUC,SUP,XL7	08/1986 - 08/1987	1
83145-95G05	CM30,40,KM30,31,36,YM30,40..FXV,GXL,SCA,SUC,SUP,XL7	08/1987 - 08/1988	1
83145-95726	CM30,KM30,31,36,YM30..FXV,GXL,SUC,SUP,XL7	09/1985 - 08/1986	1
83145B - LENS, METER, NO.3
83145-95727	CM30,KM30,31,36..(3FC,4F,5F)..(SCA,SUC,SUP,XL7)	09/1985 - 08/1988	1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95712	CM30,KM30,31,36..SCA,SUC,SUP,XL7	09/1985 - 08/1988	1
83909 - KNOB, CLOCK
83909-14012	CM30,40,KM30,31,36..SCA,SUC,SUP,XL7	09/1985 - 08/1988	1
83910 - CLOCK ASSY
83910-95703	CM30,KM30,31,36..(SCA,SUC,SUP,XL7)..(CBR,DSL)	09/1985 - 08/1988	1
83919 - SCREW, CLOCK
83919-14012	CM30,KM30,31,36..SCA,SUC,SUP,XL7	09/1985 - 08/1988	1
Common parts
83161-20380
83161-20400
83161-20480
90183-05032
93560-55016

Part #	Description	Period	Qty
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95719	CM3#,YM30	09/1985 - 08/1988	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95719	CM3#,YM30	09/1985 - 08/1988	1
Common parts
83791-95706
83791-95708
90467-08069
90468-04021
90989-01065
91611-60814

CM30G-MES (1985)

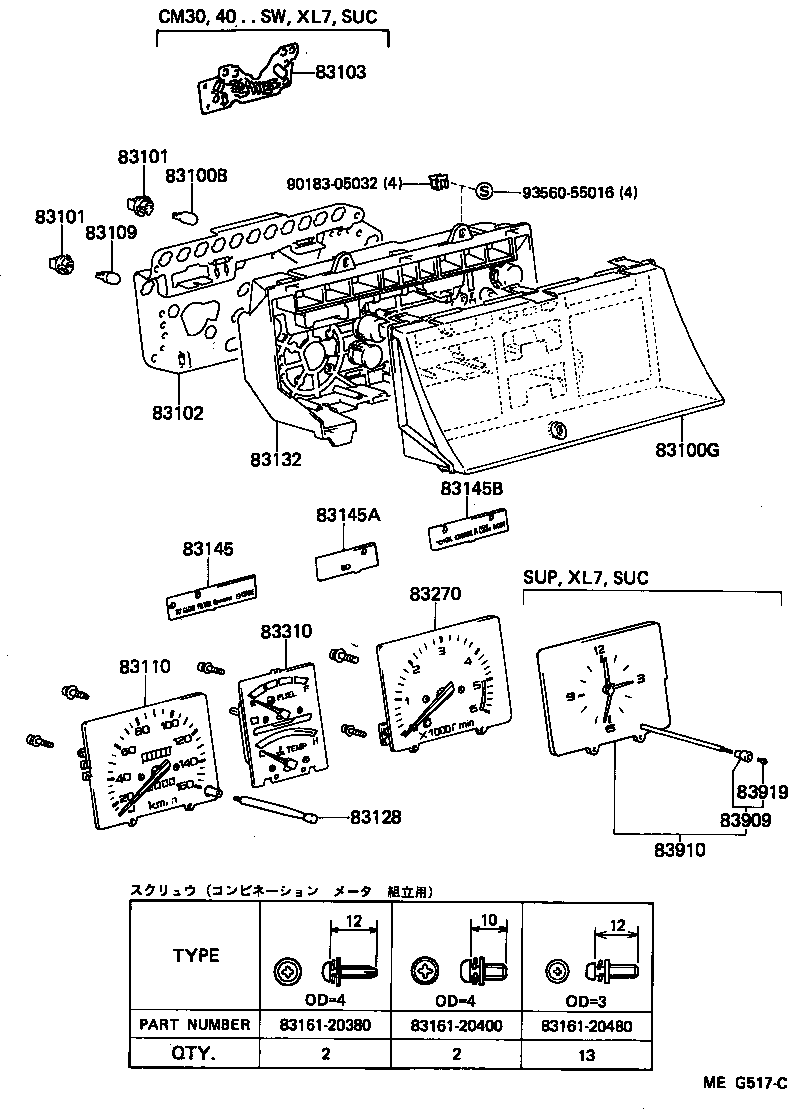

ILLUST NO. 1 OF 3(8509- )CM30,KM30,31,36,YM30..FXV,GXL,SCA,SUC,SUP,XL7 ; (8510- )CM40,YM40

ILLUST NO. 2 OF 3(8509- )

ILLUST NO. 3 OF 3(8509- )
