CM30G-MBZ (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )MTM

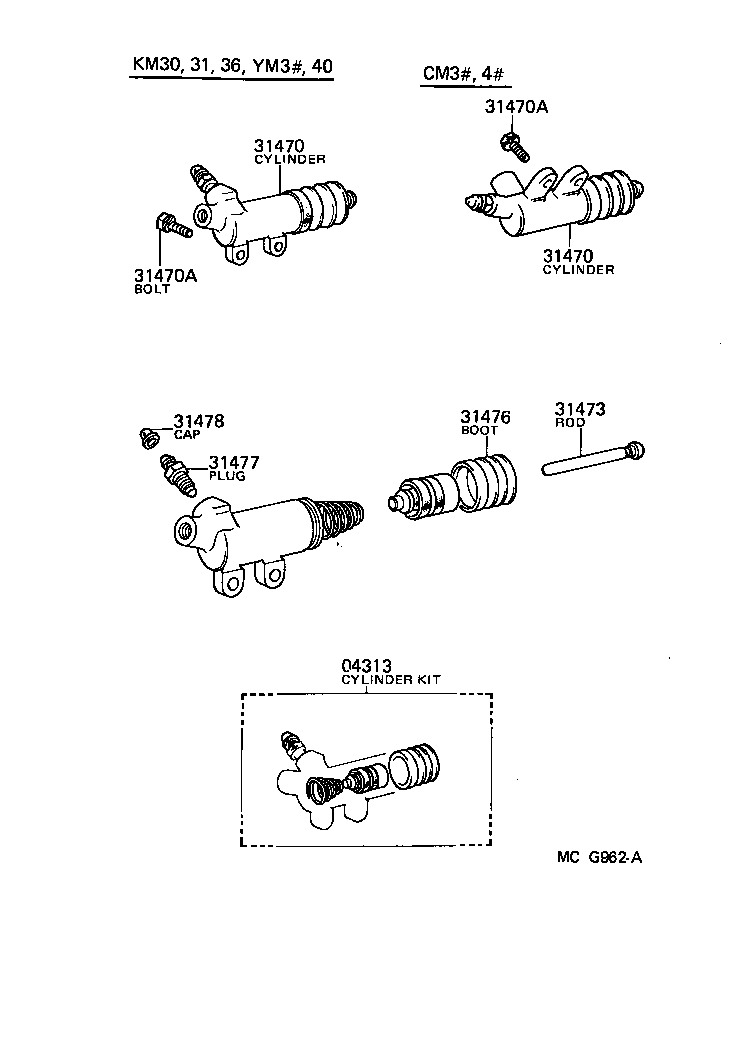

Click highlighted areas on diagram

diagram 04313 31470 31470 31470A 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-12030

CM3#,4#,KM30,31,36..5F,5H

 1
04313-22020

CM3#,4#..5F

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-28040

CM3#,4#..5F

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-28040

CM3#,4#..5F

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

CM3#,4#,KM30,31,36,YM3#,40..5F,5H

*8−1.25PX25−25

 2
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

CM3#,4#,KM30,31,36,YM3#,40..5F,5H

*8−1.25PX25−25

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-22010

CM3#,4#,KM30,31,36,YM3#,40..5F,5H

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

CM3#,4#,KM30,31,36,YM3#,40..5F,5H

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

CM3#,4#,KM30,31,36,YM3#,40..5F,5H

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

CM3#,4#,KM30,31,36,YM3#,40..5F,5H

 1
