CM30G-MBZ (1988)
Toyota Liteace Van,Wagon
Production
Aug 1988
-
Jan 1992
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )2C#

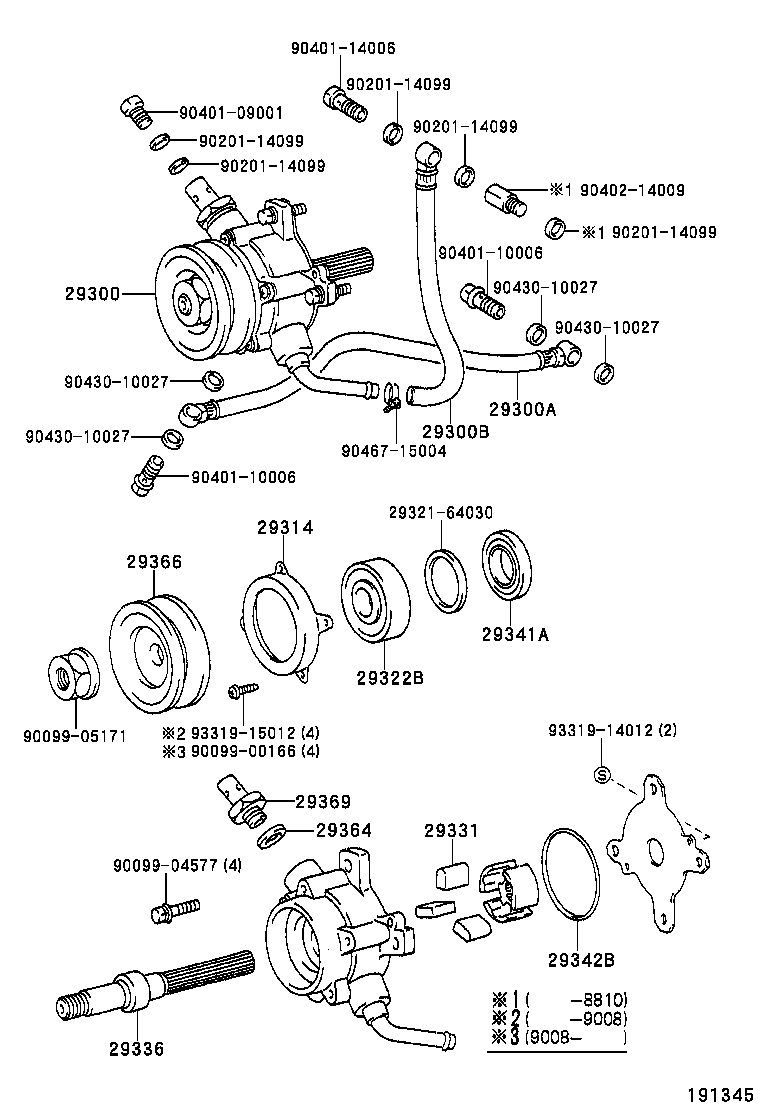

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-64060 |
2C#..CM3#,4# |
1 | ||
| 29300-64031 |
2C#..CM3#,41;2CT..CM40..5F |
1 | ||
| 29300A - HOSE, VACUUM PUMP OIL INLET | ||||
| 90923-02099 |
2C#..CM3#,4# |
1 | ||
| 29300B - HOSE, VACUUM PUMP OIL OUTLET | ||||
| 29611-64010 |
2C#..CM3#,4# |
1 | ||
| 90923-02102 |
2C#..CM3#,4# |
1 | ||
| 29314 - RING, STOP | ||||
| 29314-64030 |
2C#..CM3#,4# |
1 | ||
| 29322B - BEARING, VACUUM PUMP | ||||
| 90099-10166 |
2C#..CM3#,4# |
1 | ||
| 29331 - BLADE, VACUUM PUMP, A | ||||
| 29331-64030 |
2C#..CM3#,4# |
3 | ||
| 29336 - SHAFT, VACUUM PUMP | ||||
| 29336-64030 |
2C#..CM3#,4# |
1 | ||
| 29336-64031 |
2C#..CM3#,4# |
1 | ||
| 29341A - SEAL, OIL | ||||
| 29341-64030 |
2C#..CM3#,4# |
1 | ||
| 29342B - RING, O | ||||
| 29342-64030 |
2C#..CM3#,4# |
1 | ||
| 29364 - WASHER, VACUUM PUMP | ||||
| 29364-66010 |
2C#..CM3#,4# |
1 | ||
| 29366 - PULLEY, VACUUM PUMP | ||||
| 29366-64031 |
2C#..CM3#,41;2CT..CM40..5F |
1 | ||
| 29366-64060 |
2C#..CM3#,4# |
1 | ||
| 29369 - VALVE SUB-ASSY, CHECK | ||||
| 29369-64030 |
2C#..CM3#,4# |
1 | ||
| Common parts | ||||
| 29321-64030 | ||||
| 90099-00166 | ||||
| 90099-04577 | ||||
| 90099-05171 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 90401-10006 | ||||
| 90401-14006 | ||||
| 90402-14009 | ||||
| 90430-10027 | ||||
| 90467-15004 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
