YM60-TSQDS (1990)
Toyota Lite/Townace Truck
(9611- )DX
ｴｸｽﾄﾗﾊﾟｯｹｰｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58801D - BOX ASSY, CONSOLE | ||||
| 58801-27010B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 58907B - HINGE, CONSOLE COMPARTMENT DOOR | ||||
| 58907-60030 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95706 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 71011-95706 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 71011-95706 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-9570504 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,DEEP BLUE |
1 | ||
| 71095-27020B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71095-27040B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71095-27060B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71095-9570604 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71095-27061B2 |
CM65..TS;CM5#,60,61,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71095-27080B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71095-27081B1 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-9572104 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 71071-9571514 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71071-27020B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71071-27040B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71071-27030B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71071-27050B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71071-27041B1 |
CM5#,6#,KM51,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71071-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-9574004 |
CM5#,6#,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71072-9573804 |
CM5#,6#,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,DEEP BLUE |
1 | ||
| 71072-27081B1 |
CM65..TS;CM5#,60,61,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71072-27100B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71072-27030B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71072-27101B1 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-27080B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71072-27050B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-9572104 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 71073-9571314 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71073-27020B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71073-27050B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71073-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-27040B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71073-27041B1 |
CM5#,6#,KM51,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71073-27030B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-9572004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 71074-9571414 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71074-27020B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71074-27040B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71074-27041B1 |
CM5#,6#,KM51,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71074-27030B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71074-27050B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71074-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71280A - HINGE ASSY, FRONT SEAT BACK, LH | ||||
| 71320-9570104 |
CM5#,6#,KM5#,YM55,60..DX BLUE,TRIM8# |
1 | ||
| 71320-95701C0 |
CM5#,6#,KM51,YM55,6#..DX BLACK,TRIM1# |
1 | ||
| 71320-9570103 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71320-95701C0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX BLACK,TRIM1# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-9572404 |
CM5#,6#,KM5#,YM55,60..DX ***,DEEP BLUE,TRIM8# |
1 | ||
| 71350-9572304 |
CM5#,6#,KM5#,YM55,60..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,DEEP BLUE,TRIM8# |
1 | ||
| 71350-27060B0 |
CM5#,6#,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71350-27040B0 |
CM5#,6#,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71350-27020B0 |
CM5#,6#,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71350-27061B1 |
CM5#,6#,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71350-27080B0 |
CM5#,6#,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71350-27081B1 |
CM5#,6#,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-27010 |
CM65..TS;CM5#,60,61,YM55,6#..DX |
1 | ||
| 71033-95702 |
CM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H |
1 | ||
| 71033-27030 |
CM65..TS;CM5#,60,61,YM55,6#..DX |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-9570104 |
CM5#,6#,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71380-95701C0 |
CM60,65..GUT,TS;CM5#,61,YM55,6#..DX BLACK,TRIM1# |
1 | ||
| 71390A - HINGE ASSY, CENTER SEAT, LH | ||||
| 71378-95703C0 |
CM60,65..GUT,TS;CM5#,61,YM55,6#..DX BLACK,TRIM1# |
1 | ||
| 71378-9570304 |
CM5#,6#,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71397A - COVER, CENTER SEAT HINGE | ||||
| 71396-9570404 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX LH,BLUE,DEEP BLUE |
1 | ||
| 71395-9570204 |
CM5#,6#,YM55,60..(1SO,3SO)..DX RH,BLUE,DEEP BLUE |
1 | ||
| 71395-95702B0 |
CM60,65..GUT,TS;CM5#,61,YM55,6#..DX LIGHT GRAY,TRIM1#,右側 |
1 | ||
| 71396-95704B0 |
CM60,65..GUT,TS;CM5#,61,KM51,YM55,6#..DX LIGHT GRAY,TRIM1#,左側 |
1 | ||
| 71397A - COVER, CENTER SEAT HINGE | ||||
| 71396-9570404 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX LH,BLUE,DEEP BLUE |
1 | ||
| 71395-9570204 |
CM5#,6#,YM55,60..(1SO,3SO)..DX RH,BLUE,DEEP BLUE |
1 | ||
| 71395-95702B0 |
CM60,65..GUT,TS;CM5#,61,YM55,6#..DX LIGHT GRAY,TRIM1#,右側 |
1 | ||
| 71396-95704B0 |
CM60,65..GUT,TS;CM5#,61,KM51,YM55,6#..DX LIGHT GRAY,TRIM1#,左側 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-9576714 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ***,BLUE,DEEP BLUE |
1 | ||
| 71410-9577304 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ***,EXTRA,BLUE,BLUE |
1 | ||
| 71410-27020B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71410-27030B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71410-27041B1 |
CM5#,6#,KM51,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-27040B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71410-27050B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-9573504 |
CM5#,6#,YM55,60..(1SO,3SO)..DX ***,EXTRA,BLUE,DEEP BLUE |
1 | ||
| 71420-9573704 |
CM5#,6#,YM55,60..(1SO,3SO)..DX ***,BLUE,DEEP BLUE |
1 | ||
| 71420-27030B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71420-27080B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71420-27100B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71420-27050B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71420-27081B1 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-27101 |
CM65..TS;CM5#,60,61,YM55,6#..DX |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-9573704 |
CM5#,6#,KM5#,YM55,60..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,DEEP BLUE,TRIM8# |
1 | ||
| 71430-9573804 |
CM5#,6#,KM5#,YM55,60..DX ***,DEEP BLUE,TRIM8# |
1 | ||
| 71430-27020B0 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71430-27040B0 |
CM5#,6#,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71430-27010B0 |
CM5#,6#,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71430-27050B0 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71430-27041B1 |
CM5#,6#,KM51,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-9572114 |
CM5#,6#,KM5#,YM55,60..DX ***,BLUE,TRIM8# |
1 | ||
| 71440-9574304 |
CM5#,6#,KM5#,YM55,60..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,DEEP BLUE,TRIM8# |
1 | ||
| 71440-27060B0 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71440-27020B0 |
CM5#,6#,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71440-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-27061B1 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-27030B0 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71440-27050B0 |
CM5#,6#,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95701 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 71511-95701 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 71511-95701 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95714 |
CM5#,6#,YM55,60..DX |
1 | ||
| 71502-95717 |
CM65..TS;CM5#,60,61,YM55,6#..DX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-95703 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 71505-95705 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 71505-95703 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71505-95705 |
CM65..TS;CM5#,60,61,YM55,6#..DX |
1 | ||
| 71505-95705 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 71505-95705 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 71505-95703 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-95702 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 71506-95702 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 71506-95703 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 71506-95703 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71506-95702 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 71506-95703 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71588-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71588-95700B0 |
CM5#,6#,KM51,YM55,6# LIGHT GRAY,TRIM1# |
1 | ||
| 71588-9570013 |
CM65..TS;CM5#,60,61,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71588-95700B0 |
CM60..GUT,TS;CM5#,61,65,KM51,YM55,6# LIGHT GRAY,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71801-9570104 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71801-9570113 |
CM65..TS;CM5#,60,61,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 71801-95701B0 |
CM5#,6#,KM51,YM55,6# LIGHT GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71812-95700B0 |
CM60..GUT,TS;CM5#,61,65,KM51,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-9570013 |
CM65..TS;CM5#,60,61,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 71831-9570013 |
CM5#,6#,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 71831-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J0204 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,DEEP BLUE |
2 | ||
| 71910-95J0213 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71910-95J0213 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71910-95J0213 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J0204 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,DEEP BLUE |
2 | ||
| 71910-95J0213 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71910-95J0213 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71910-95J0213 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002024 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ﾛｯｸ無,EXTRA,W/O LOCK,BLUE,DEEP BLUE |
2 | ||
| 71990-3002024 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ﾛｯｸ付,EXTRA,W/LOCK,BLUE,DEEP BLUE |
2 | ||
| 71931-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
CM5#,6#,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71931-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71930-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
CM5#,6#,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002024 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ﾛｯｸ無,EXTRA,W/O LOCK,BLUE,DEEP BLUE |
2 | ||
| 71990-3002024 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ﾛｯｸ付,EXTRA,W/LOCK,BLUE,DEEP BLUE |
2 | ||
| 71931-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
CM5#,6#,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71931-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71930-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
CM5#,6#,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002024 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ﾛｯｸ無,EXTRA,W/O LOCK,BLUE,DEEP BLUE |
2 | ||
| 71990-3002024 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ﾛｯｸ付,EXTRA,W/LOCK,BLUE,DEEP BLUE |
2 | ||
| 71931-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
CM5#,6#,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71931-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71930-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
CM5#,6#,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002024 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ﾛｯｸ無,EXTRA,W/O LOCK,BLUE,DEEP BLUE |
2 | ||
| 71990-3002024 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ﾛｯｸ付,EXTRA,W/LOCK,BLUE,DEEP BLUE |
2 | ||
| 71931-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
CM5#,6#,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71931-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71930-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
CM5#,6#,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-9571104 |
CM5#,6#,KM5#,YM55,60..DX DEEP BLUE,TRIM8# |
1 | ||
| 72510-27010B1 |
CM5#,6#,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 72510-27010B0 |
CM5#,6#,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 72510-27010B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 72510-9571104 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| Common parts | ||||
| 71389-27010 | ||||
| 90109-08150 | ||||
| 90119-08079 | ||||
| 90159-50050 | ||||
| 90164-45013 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90386-12051 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 90541-03006 | ||||
| 91611-61020 | ||||
| 91612-61020 | ||||
| 93540-55016 | ||||
| 93560-54010 | ||||
(9611- )DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95706 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 71011-95706 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 71011-95706 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-9572104 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 71071-9571514 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71071-27020B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71071-27040B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71071-27030B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71071-27050B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71071-27041B1 |
CM5#,6#,KM51,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71071-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-9574004 |
CM5#,6#,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71072-9573804 |
CM5#,6#,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,DEEP BLUE |
1 | ||
| 71072-27081B1 |
CM65..TS;CM5#,60,61,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71072-27100B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71072-27030B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71072-27101B1 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-27080B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71072-27050B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-9572104 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 71073-9571314 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71073-27020B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71073-27050B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71073-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-27040B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71073-27041B1 |
CM5#,6#,KM51,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71073-27030B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-9572004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 71074-9571414 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71074-27020B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71074-27040B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71074-27041B1 |
CM5#,6#,KM51,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71074-27030B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71074-27050B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71074-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71280A - HINGE ASSY, FRONT SEAT BACK, LH | ||||
| 71320-9570104 |
CM5#,6#,KM5#,YM55,60..DX BLUE,TRIM8# |
1 | ||
| 71320-95701C0 |
CM5#,6#,KM51,YM55,6#..DX BLACK,TRIM1# |
1 | ||
| 71320-9570103 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71320-95701C0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX BLACK,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-9576714 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ***,BLUE,DEEP BLUE |
1 | ||
| 71410-9577304 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ***,EXTRA,BLUE,BLUE |
1 | ||
| 71410-27020B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71410-27030B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71410-27041B1 |
CM5#,6#,KM51,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-27040B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71410-27050B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-9573504 |
CM5#,6#,YM55,60..(1SO,3SO)..DX ***,EXTRA,BLUE,DEEP BLUE |
1 | ||
| 71420-9573704 |
CM5#,6#,YM55,60..(1SO,3SO)..DX ***,BLUE,DEEP BLUE |
1 | ||
| 71420-27030B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71420-27080B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71420-27100B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71420-27050B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71420-27081B1 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-27101 |
CM65..TS;CM5#,60,61,YM55,6#..DX |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-9573704 |
CM5#,6#,KM5#,YM55,60..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,DEEP BLUE,TRIM8# |
1 | ||
| 71430-9573804 |
CM5#,6#,KM5#,YM55,60..DX ***,DEEP BLUE,TRIM8# |
1 | ||
| 71430-27020B0 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71430-27040B0 |
CM5#,6#,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71430-27010B0 |
CM5#,6#,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71430-27050B0 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71430-27041B1 |
CM5#,6#,KM51,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-9572114 |
CM5#,6#,KM5#,YM55,60..DX ***,BLUE,TRIM8# |
1 | ||
| 71440-9574304 |
CM5#,6#,KM5#,YM55,60..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,DEEP BLUE,TRIM8# |
1 | ||
| 71440-27060B0 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71440-27020B0 |
CM5#,6#,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71440-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-27061B1 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-27030B0 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71440-27050B0 |
CM5#,6#,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95701 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 71511-95701 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 71511-95701 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95714 |
CM5#,6#,YM55,60..DX |
1 | ||
| 71502-95717 |
CM65..TS;CM5#,60,61,YM55,6#..DX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-95703 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 71505-95705 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 71505-95703 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71505-95705 |
CM65..TS;CM5#,60,61,YM55,6#..DX |
1 | ||
| 71505-95705 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 71505-95705 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 71505-95703 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-95702 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 71506-95702 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 71506-95703 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 71506-95703 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71506-95702 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 71506-95703 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71588-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71588-95700B0 |
CM5#,6#,KM51,YM55,6# LIGHT GRAY,TRIM1# |
1 | ||
| 71588-9570013 |
CM65..TS;CM5#,60,61,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71588-95700B0 |
CM60..GUT,TS;CM5#,61,65,KM51,YM55,6# LIGHT GRAY,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71801-9570104 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71801-9570113 |
CM65..TS;CM5#,60,61,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 71801-95701B0 |
CM5#,6#,KM51,YM55,6# LIGHT GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71812-95700B0 |
CM60..GUT,TS;CM5#,61,65,KM51,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-9570013 |
CM65..TS;CM5#,60,61,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 71831-9570013 |
CM5#,6#,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 71831-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-9571104 |
CM5#,6#,KM5#,YM55,60..DX DEEP BLUE,TRIM8# |
1 | ||
| 72510-27010B1 |
CM5#,6#,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 72510-27010B0 |
CM5#,6#,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 72510-27010B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 72510-9571104 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| Common parts | ||||
| 90119-10424 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90386-12051 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91611-61020 | ||||

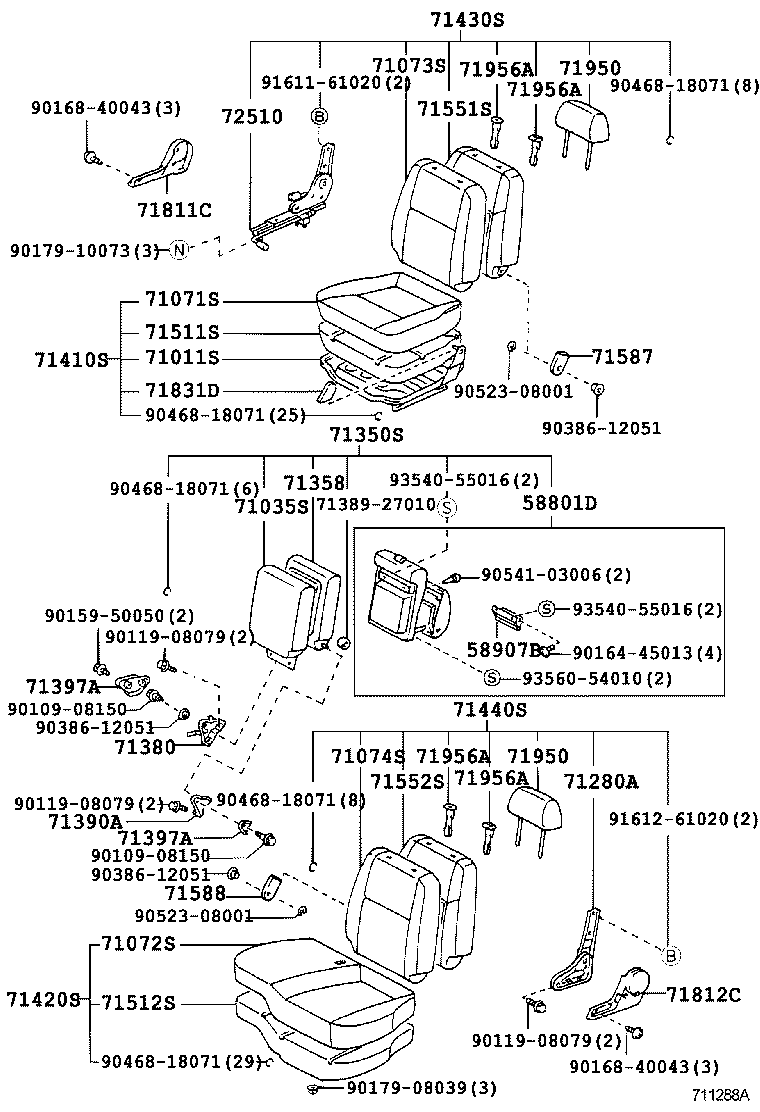

(8610-9611)DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95706 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 71011-95706 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 71011-95706 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-9570504 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,DEEP BLUE |
1 | ||
| 71095-27020B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71095-27040B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71095-27060B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71095-9570604 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71095-27061B2 |
CM65..TS;CM5#,60,61,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71095-27080B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71095-27081B1 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-9572104 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 71071-9571514 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71071-27020B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71071-27040B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71071-27030B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71071-27050B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71071-27041B1 |
CM5#,6#,KM51,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71071-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-9574004 |
CM5#,6#,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71072-9573804 |
CM5#,6#,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,DEEP BLUE |
1 | ||
| 71072-27081B1 |
CM65..TS;CM5#,60,61,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71072-27100B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71072-27030B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71072-27101B1 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-27080B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71072-27050B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-9572104 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 71073-9571314 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71073-27020B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71073-27050B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71073-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-27040B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71073-27041B1 |
CM5#,6#,KM51,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71073-27030B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-9572004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 71074-9571414 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71074-27020B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71074-27040B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71074-27041B1 |
CM5#,6#,KM51,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71074-27030B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71074-27050B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71074-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71280A - HINGE ASSY, FRONT SEAT BACK, LH | ||||
| 71320-9570104 |
CM5#,6#,KM5#,YM55,60..DX BLUE,TRIM8# |
1 | ||
| 71320-95701C0 |
CM5#,6#,KM51,YM55,6#..DX BLACK,TRIM1# |
1 | ||
| 71320-9570103 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 71320-95701C0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX BLACK,TRIM1# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-9572404 |
CM5#,6#,KM5#,YM55,60..DX ***,DEEP BLUE,TRIM8# |
1 | ||
| 71350-9572304 |
CM5#,6#,KM5#,YM55,60..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,DEEP BLUE,TRIM8# |
1 | ||
| 71350-27060B0 |
CM5#,6#,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71350-27040B0 |
CM5#,6#,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71350-27020B0 |
CM5#,6#,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71350-27061B1 |
CM5#,6#,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71350-27080B0 |
CM5#,6#,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71350-27081B1 |
CM5#,6#,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-27010 |
CM65..TS;CM5#,60,61,YM55,6#..DX |
1 | ||
| 71033-95702 |
CM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H |
1 | ||
| 71033-27030 |
CM65..TS;CM5#,60,61,YM55,6#..DX |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-9570104 |
CM5#,6#,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71380-95701C0 |
CM60,65..GUT,TS;CM5#,61,YM55,6#..DX BLACK,TRIM1# |
1 | ||
| 71390A - HINGE ASSY, CENTER SEAT, LH | ||||
| 71378-95703C0 |
CM60,65..GUT,TS;CM5#,61,YM55,6#..DX BLACK,TRIM1# |
1 | ||
| 71378-9570304 |
CM5#,6#,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71397A - COVER, CENTER SEAT HINGE | ||||
| 71396-9570404 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX LH,BLUE,DEEP BLUE |
1 | ||
| 71395-9570204 |
CM5#,6#,YM55,60..(1SO,3SO)..DX RH,BLUE,DEEP BLUE |
1 | ||
| 71395-95702B0 |
CM60,65..GUT,TS;CM5#,61,YM55,6#..DX LIGHT GRAY,TRIM1#,右側 |
1 | ||
| 71396-95704B0 |
CM60,65..GUT,TS;CM5#,61,KM51,YM55,6#..DX LIGHT GRAY,TRIM1#,左側 |
1 | ||
| 71397A - COVER, CENTER SEAT HINGE | ||||
| 71396-9570404 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX LH,BLUE,DEEP BLUE |
1 | ||
| 71395-9570204 |
CM5#,6#,YM55,60..(1SO,3SO)..DX RH,BLUE,DEEP BLUE |
1 | ||
| 71395-95702B0 |
CM60,65..GUT,TS;CM5#,61,YM55,6#..DX LIGHT GRAY,TRIM1#,右側 |
1 | ||
| 71396-95704B0 |
CM60,65..GUT,TS;CM5#,61,KM51,YM55,6#..DX LIGHT GRAY,TRIM1#,左側 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-9576714 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ***,BLUE,DEEP BLUE |
1 | ||
| 71410-9577304 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ***,EXTRA,BLUE,BLUE |
1 | ||
| 71410-27020B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71410-27030B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71410-27041B1 |
CM5#,6#,KM51,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-27040B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71410-27050B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-9573504 |
CM5#,6#,YM55,60..(1SO,3SO)..DX ***,EXTRA,BLUE,DEEP BLUE |
1 | ||
| 71420-9573704 |
CM5#,6#,YM55,60..(1SO,3SO)..DX ***,BLUE,DEEP BLUE |
1 | ||
| 71420-27030B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71420-27080B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71420-27100B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71420-27050B0 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71420-27081B1 |
CM65..TS;CM5#,60,61,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-27101 |
CM65..TS;CM5#,60,61,YM55,6#..DX |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-9573704 |
CM5#,6#,KM5#,YM55,60..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,DEEP BLUE,TRIM8# |
1 | ||
| 71430-9573804 |
CM5#,6#,KM5#,YM55,60..DX ***,DEEP BLUE,TRIM8# |
1 | ||
| 71430-27020B0 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71430-27040B0 |
CM5#,6#,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71430-27010B0 |
CM5#,6#,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71430-27050B0 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71430-27041B1 |
CM5#,6#,KM51,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-9572114 |
CM5#,6#,KM5#,YM55,60..DX ***,BLUE,TRIM8# |
1 | ||
| 71440-9574304 |
CM5#,6#,KM5#,YM55,60..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,DEEP BLUE,TRIM8# |
1 | ||
| 71440-27060B0 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71440-27020B0 |
CM5#,6#,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71440-27051B1 |
CM5#,6#,KM51,YM55,6#..DX ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-27061B1 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-27030B0 |
CM5#,6#,KM51,YM55,6#..DX ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71440-27050B0 |
CM5#,6#,KM51,YM55,6#..DX ***,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95701 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 71511-95701 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 71511-95701 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95714 |
CM5#,6#,YM55,60..DX |
1 | ||
| 71502-95717 |
CM65..TS;CM5#,60,61,YM55,6#..DX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-95703 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 71505-95705 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 71505-95703 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71505-95705 |
CM65..TS;CM5#,60,61,YM55,6#..DX |
1 | ||
| 71505-95705 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 71505-95705 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 71505-95703 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-95702 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 71506-95702 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 71506-95703 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 71506-95703 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71506-95702 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 71506-95703 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71588-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71588-95700B0 |
CM5#,6#,KM51,YM55,6# LIGHT GRAY,TRIM1# |
1 | ||
| 71588-9570013 |
CM65..TS;CM5#,60,61,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71588-95700B0 |
CM60..GUT,TS;CM5#,61,65,KM51,YM55,6# LIGHT GRAY,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71801-9570104 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 71801-9570113 |
CM65..TS;CM5#,60,61,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 71801-95701B0 |
CM5#,6#,KM51,YM55,6# LIGHT GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71812-95700B0 |
CM60..GUT,TS;CM5#,61,65,KM51,YM55,6#..DX LIGHT GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-9570013 |
CM65..TS;CM5#,60,61,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 71831-9570013 |
CM5#,6#,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 71831-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J0204 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,DEEP BLUE |
2 | ||
| 71910-95J0213 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71910-95J0213 |
CM5#,6#,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71910-95J0213 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002024 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ﾛｯｸ無,EXTRA,W/O LOCK,BLUE,DEEP BLUE |
2 | ||
| 71990-3002024 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ﾛｯｸ付,EXTRA,W/LOCK,BLUE,DEEP BLUE |
2 | ||
| 71931-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
CM5#,6#,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71931-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71930-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
CM5#,6#,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002024 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ﾛｯｸ無,EXTRA,W/O LOCK,BLUE,DEEP BLUE |
2 | ||
| 71990-3002024 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX ﾛｯｸ付,EXTRA,W/LOCK,BLUE,DEEP BLUE |
2 | ||
| 71931-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
CM5#,6#,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71931-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 71930-26010B1 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX ﾛｯｸ付,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
CM5#,6#,KM51,YM55,6#..DX ﾛｯｸ無,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-9571104 |
CM5#,6#,KM5#,YM55,60..DX DEEP BLUE,TRIM8# |
1 | ||
| 72510-27010B1 |
CM5#,6#,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 72510-27010B0 |
CM5#,6#,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 72510-27010B0 |
CM65..TS;CM5#,60,61,KM51,YM55,6# GRAY,TRIM1# |
1 | ||
| 72510-9571104 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 78769 - TRAY, SUB SEAT BACK | ||||
| 78769-9570213 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX GRAY,TRIM1# |
1 | ||
| 78769-9570204 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| Common parts | ||||
| 90109-08150 | ||||
| 90119-08079 | ||||
| 90119-10424 | ||||
| 90159-50050 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90386-12018 | ||||
| 90386-12051 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91611-61020 | ||||
| 93540-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
