YM60-TSMNS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )

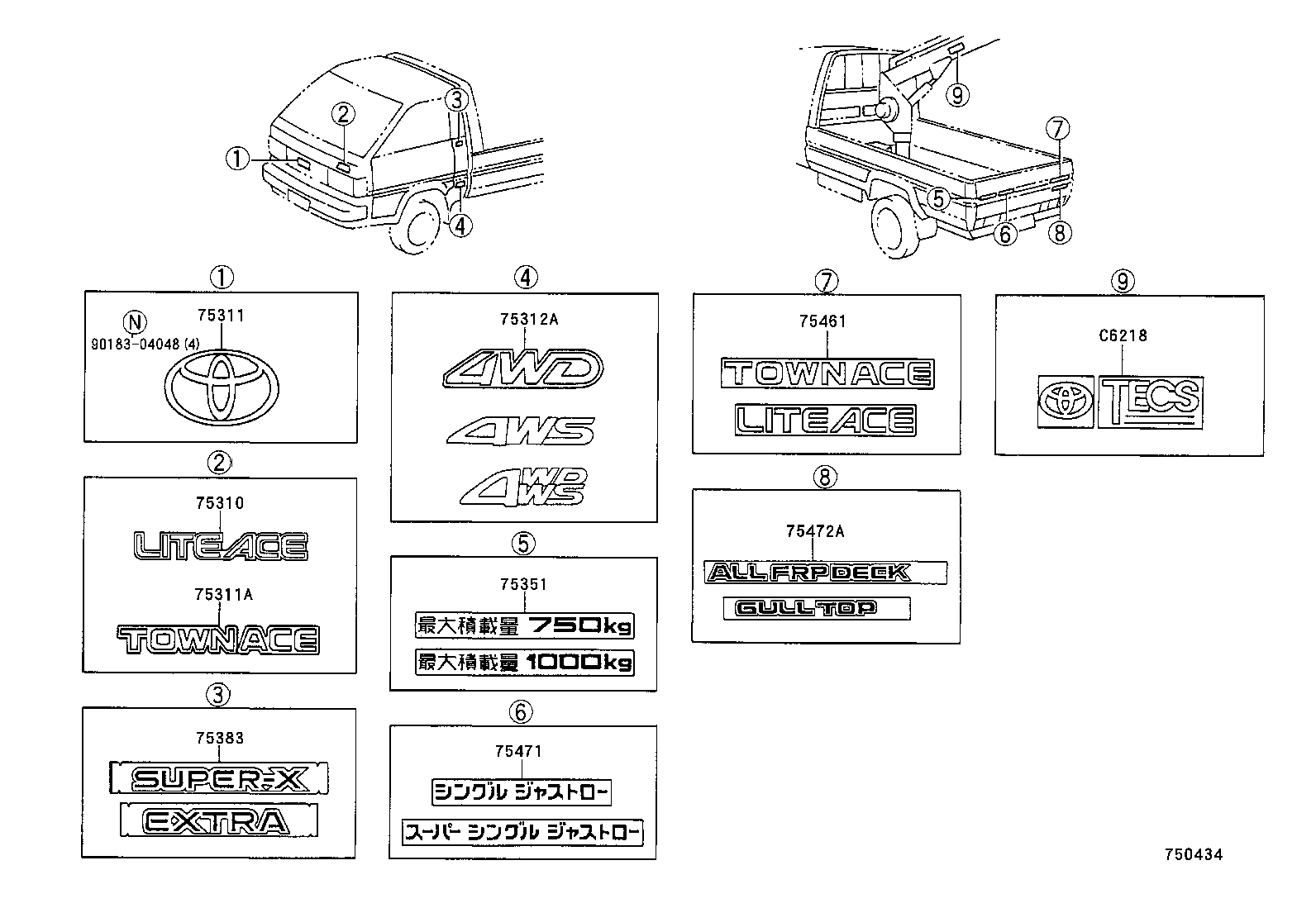

Click highlighted areas on diagram

diagram 75310 75311 75311A 75312A 75351 75383 75461 75471 75472A 9018304048 C6218
Part # Description Qty Price
75310 - PLATE ASSY, FRONT PANEL
75311-95705

CM5#,6#,KM5#,YM55,6#

LITEACE

 1
75311-95705

CM5#,6#,KM5#,YM55,60

LITEACE,LITEACE

 1
75311-95705

CM65..TS;CM5#,60,61,KM51,YM55,6#

LITEACE

 1
75311-27090

CM65..TS;CM5#,60,61,KM51,YM55,6#

LITEACE

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-27100

CM5#,6#,KM51,YM55,6#

 1
75311A - PLATE, FRONT NAME, NO.1
75311-27050

CM5#,6#,KM51,YM55,6#

TOWNACE,ﾀｳﾝｴ-ｽ

 1
75312A - PLATE, FRONT NAME, NO.2
75312-95704

CM60,65,YM6#

TOWNACE

 1
75312-95704

CM6#,YM60

TOWNACE,TOWNACE

 1
75312-9570313

YM60..SPX

LITEACE,SILVER,25D

 1
75312-9570303

YM60..SPX

LITEACE,DARK GRAY,160 ,20P

 1
75312-9570313

YM60..SPX

LITEACE,SILVER,29N

 1
75312-9570313

YM60..SPX

LITEACE,SILVER,29W

 1
75312-95704

CM65..TS;CM60,YM6#

TOWNACE

 1
75312-27010

CM60,65,YM6#

 1
75351 - PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)
75472-95704

CM50,51,60,KM5#,YM60..TB,TS

750KG,750KG

 1
75472-27010A1

KM51,YM60..SPX

750KG,CLEAR,2CL ,8E8

 1
75472-95704

CM50,51,60,KM5#,YM60..(TB,TS)..CBU

750KG

 1
75472-95704

CM60,YM60..1SO,3SO;CM51,KM51..JL..MTM..IV;CM51,52,61,KM5#..(TB,TS)..CBU

750KG

 1
75383 - PLATE, QUARTER PANEL OR SIDE PANEL NAME (GRADE MARK)
75385-95702

KM51,YM60..SPX

SUPER−X,SUPER-X

 2
75385-95702

KM51,YM60..SPX

SUPER−X

 2
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75471-95703

CM5#,6#,KM5#,YM55,6#..TB,TS

TOYOTA LITEACE

 1
75471-95705

CM5#,6#,KM5#,YM55,60..TB,TS

TOYOTA TOWNACE,TOYOTA TOWNACE

 1
75471-95703

CM5#,6#,KM5#,YM55,60..TB,TS

TOYOTA LITEACE,TOYOTA LITEACE

 1
75471-27010A1

KM51,YM60..SPX

TOYOTA LITEACE,CLEAR,2CL ,8E8

 1
75471-95703

CM65..TS;CM5#,60,61,KM51,YM55,6#..TB,TS

TOYOTA LITEACE

 1
75471-27020A1

KM51,YM60..SPX

TOYOTA TOWNACE,CLEAR,2CL ,8E8

 1
75471-95705

CM5#,6#,KM5#,YM55,6#..TB,TS

TOYOTA TOWNACE

 1
75471-95705

CM65..TS;CM5#,60,61,KM51,YM55,6#..TB,TS

TOYOTA TOWNACE

 1
Common parts
90183-04048

(8610-9611)

Click highlighted areas on diagram

diagram 75310 75311 75312A 75351 75383 75384 75441 75461 75471 75472A 9020205021 9046706060 C6218
Part # Description Qty Price
75310 - PLATE ASSY, FRONT PANEL
75311-95705

CM5#,6#,KM5#,YM55,6#

LITEACE

 1
75311-95705

CM5#,6#,KM5#,YM55,60

LITEACE,LITEACE

 1
75311-95705

CM65..TS;CM5#,60,61,KM51,YM55,6#

LITEACE

 1
75311-27090

CM65..TS;CM5#,60,61,KM51,YM55,6#

LITEACE

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-27100

CM5#,6#,KM51,YM55,6#

 1
75312A - PLATE, FRONT NAME, NO.2
75312-95704

CM60,65,YM6#

TOWNACE

 1
75312-95704

CM6#,YM60

TOWNACE,TOWNACE

 1
75312-9570313

YM60..SPX

LITEACE,SILVER,25D

 1
75312-9570303

YM60..SPX

LITEACE,DARK GRAY,160 ,20P

 1
75312-9570313

YM60..SPX

LITEACE,SILVER,29N

 1
75312-9570313

YM60..SPX

LITEACE,SILVER,29W

 1
75312-95704

CM65..TS;CM60,YM6#

TOWNACE

 1
75312-27010

CM60,65,YM6#

 1
75351 - PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)
75472-95704

CM50,51,60,KM5#,YM60..TB,TS

750KG,750KG

 1
75472-27010A1

KM51,YM60..SPX

750KG,CLEAR,2CL ,8E8

 1
75472-95704

CM50,51,60,KM5#,YM60..(TB,TS)..CBU

750KG

 1
75472-95704

CM60,YM60..1SO,3SO;CM51,KM51..JL..MTM..IV;CM51,52,61,KM5#..(TB,TS)..CBU

750KG

 1
75383 - PLATE, QUARTER PANEL OR SIDE PANEL NAME (GRADE MARK)
75385-95702

KM51,YM60..SPX

SUPER−X,SUPER-X

 2
75385-95702

KM51,YM60..SPX

SUPER−X

 2
75384 - PLATE, QUARTER PANEL OR SIDE PANEL NAME, NO.3 (MECHANIS
75312-95704

CM6#,YM60

TOWNACE,TOWN ACE

 2
75312-9570303

YM60..SPX

LITEACE,DARK GRAY,160 ,20P

 2
75312-9570313

YM60..SPX

LITEACE,SILVER,29N

 2
75312-95704

CM60,65,YM6#

TOWNACE

 2
75312-95704

CM65..TS;CM60,YM6#

TOWNACE

 2
75312-9570313

YM60..SPX

LITEACE,SILVER,25D

 2
75312-9570313

YM60..SPX

LITEACE,SILVER,29W

 2
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75471-95703

CM5#,6#,KM5#,YM55,6#..TB,TS

TOYOTA LITEACE

 1
75471-95705

CM5#,6#,KM5#,YM55,60..TB,TS

TOYOTA TOWNACE,TOYOTA TOWNACE

 1
75471-95703

CM5#,6#,KM5#,YM55,60..TB,TS

TOYOTA LITEACE,TOYOTA LITEACE

 1
75471-27010A1

KM51,YM60..SPX

TOYOTA LITEACE,CLEAR,2CL ,8E8

 1
75471-95703

CM65..TS;CM5#,60,61,KM51,YM55,6#..TB,TS

TOYOTA LITEACE

 1
75471-27020A1

KM51,YM60..SPX

TOYOTA TOWNACE,CLEAR,2CL ,8E8

 1
75471-95705

CM5#,6#,KM5#,YM55,6#..TB,TS

TOYOTA TOWNACE

 1
75471-95705

CM65..TS;CM5#,60,61,KM51,YM55,6#..TB,TS

TOYOTA TOWNACE

 1
Common parts
90202-05021
90467-06060
