YM60-TSMNS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )CM52,6#,YM6#

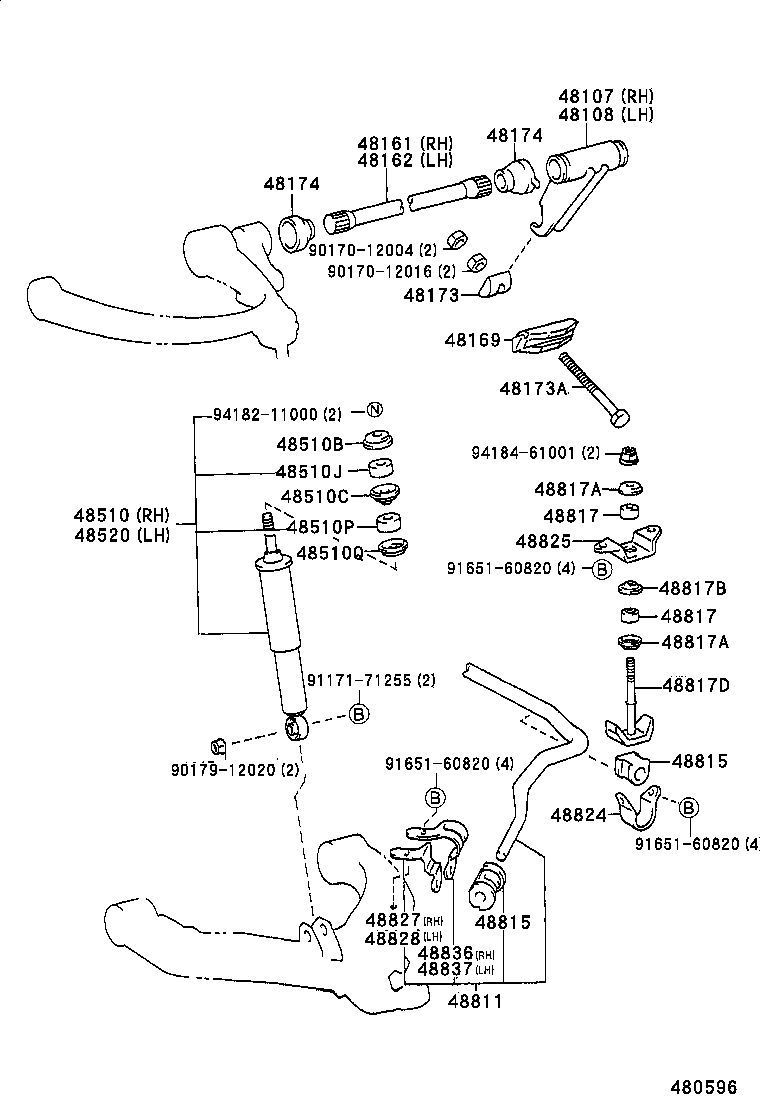

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169 48173 48173A 48174 48174 48510 48510B 48510C 48510J 48510P 48510Q 48520 48811 48815 48815 48817 48817 48817A 48817A 48817B 48817D 48824 48825 48827 48828 48836 48837 9017012004 9017012016 9017912020 9117171255 9165160820 9165160820 9165160820 9418211000 9418461001
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-27030

CM5#,6#,KM5#,YM55,60

 1
48107-27050

CM5#,6#,KM51,YM55,6#

 1
48107-27050

CM5#,6#,KM5#,YM55,6#

 1
48107-27050

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-27040

CM5#,6#,KM5#,YM55,60

 1
48108-27050

CM5#,6#,KM5#,YM55,6#

 1
48108-27050

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
48108-27050

CM5#,6#,KM51,YM55,6#

 1
48161 - SPRING, TORSION BAR, RH
48161-27120

CM65..TS;CM52,60,61,YM6#

 1
48161-27120

CM52,6#,YM6#

 1
48161-27120

CM52,6#,YM6#

 1
48162 - SPRING, TORSION BAR, LH
48162-27120

CM52,6#,YM6#

 1
48162-27120

CM52,6#,YM6#

 1
48162-27120

CM65..TS;CM52,60,61,YM6#

 1
48169 - SWIVEL, ANCHOR ARM
48169-27020

CM5#,6#,KM5#,YM55,60

 1
48169-27020

CM5#,6#,KM51,YM55,6#

 2
48169-27020

CM65..TS;CM5#,60,61,KM51,YM55,6#

 2
48169-27020

CM5#,6#,KM5#,YM55,6#

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27020

CM5#,6#,KM5#,YM55,60

RH

 1
48173-27010

CM5#,6#,KM5#,YM55,60

LH

 1
48173-27010

CM5#,6#,KM5#,YM55,6#

左側

 1
48173-27020

CM5#,6#,KM5#,YM55,6#

右側

 1
48173-27010

CM5#,6#,KM51,YM55,6#

左側

 1
48173-27020

CM5#,6#,KM51,YM55,6#

右側

 1
48173-27020

CM65..TS;CM5#,60,61,KM51,YM55,6#

右側

 1
48173-27010

CM65..TS;CM5#,60,61,KM51,YM55,6#

左側

 1
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12059

CM65..TS;CM5#,60,61,KM51,YM55,6#

 2
90101-12059

CM5#,6#,KM5#,YM55,6#

 2
90101-12059

CM5#,6#,KM51,YM55,6#

 2
48174 - COVER, TORSION BAR DUST
48175-27010

CM5#,6#,KM5#,YM55,6#

 2
48174-27010

CM5#,6#,KM5#,YM55,60

FR

 2
48174-27010

CM5#,6#,KM5#,YM55,60

ﾌﾛﾝﾄ

 2
48175-27010

CM5#,6#,KM51,YM55,6#

 2
48175-27010

CM5#,6#,KM5#,YM55,60

ﾘﾔ

 2
48175-27010

CM65..TS;CM5#,60,61,KM51,YM55,6#

 2
48175-27010

CM5#,6#,KM5#,YM55,60

RR

 2
48174 - COVER, TORSION BAR DUST
48175-27010

CM5#,6#,KM5#,YM55,6#

 2
48174-27010

CM5#,6#,KM5#,YM55,60

FR

 2
48174-27010

CM5#,6#,KM5#,YM55,60

ﾌﾛﾝﾄ

 2
48175-27010

CM5#,6#,KM51,YM55,6#

 2
48175-27010

CM5#,6#,KM5#,YM55,60

ﾘﾔ

 2
48175-27010

CM65..TS;CM5#,60,61,KM51,YM55,6#

 2
48175-27010

CM5#,6#,KM5#,YM55,60

RR

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48500-27130

CM6#,YM60

 1
48500-29375

CM60,65,YM6#

 1
48500-29375

CM65..TS;CM60,YM6#

 1
48500-29375

CM60,65,YM6#

 1
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

CM5#,6#,KM5#,YM55,6#

 2
90948-02002

CM65..TS;CM5#,60,61,KM51,YM55,6#

 2
90948-02002

CM5#,6#,KM51,YM55,6#

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02017

CM5#,6#,KM5#,YM55,60

 2
90948-02123

CM5#,6#,KM51,YM55,6#

 2
90948-02123

CM5#,6#,KM5#,YM55,6#

 2
90948-02123

CM65..TS;CM5#,60,61,KM51,YM55,6#

 2
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90948-01003

CM5#,6#,KM51,YM55,6#

 2
90948-01003

CM5#,6#,KM5#,YM55,6#

 2
90948-01003

CM65..TS;CM5#,60,61,KM51,YM55,6#

 2
48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2
90948-01029

CM5#,6#,KM51,YM55,6#

 2
90948-01029

CM5#,6#,KM5#,YM55,6#

 2
90948-01029

CM65..TS;CM5#,60,61,KM51,YM55,6#

 2
48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
90948-02076

CM65..TS;CM5#,60,61,KM51,YM55,6#

 2
90948-02076

CM5#,6#,KM51,YM55,6#

 2
90948-02076

CM5#,6#,KM5#,YM55,6#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48500-27130

CM6#,YM60

 1
48500-29375

CM65..TS;CM60,YM6#

 1
48500-29375

CM60,65,YM6#

 1
48500-29375

CM60,65,YM6#

 1
Common parts
90170-12004
90170-12016
90179-12020
91171-71255
91651-60820
94182-11000
94184-61001
