YM60-TSMNS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )2Y

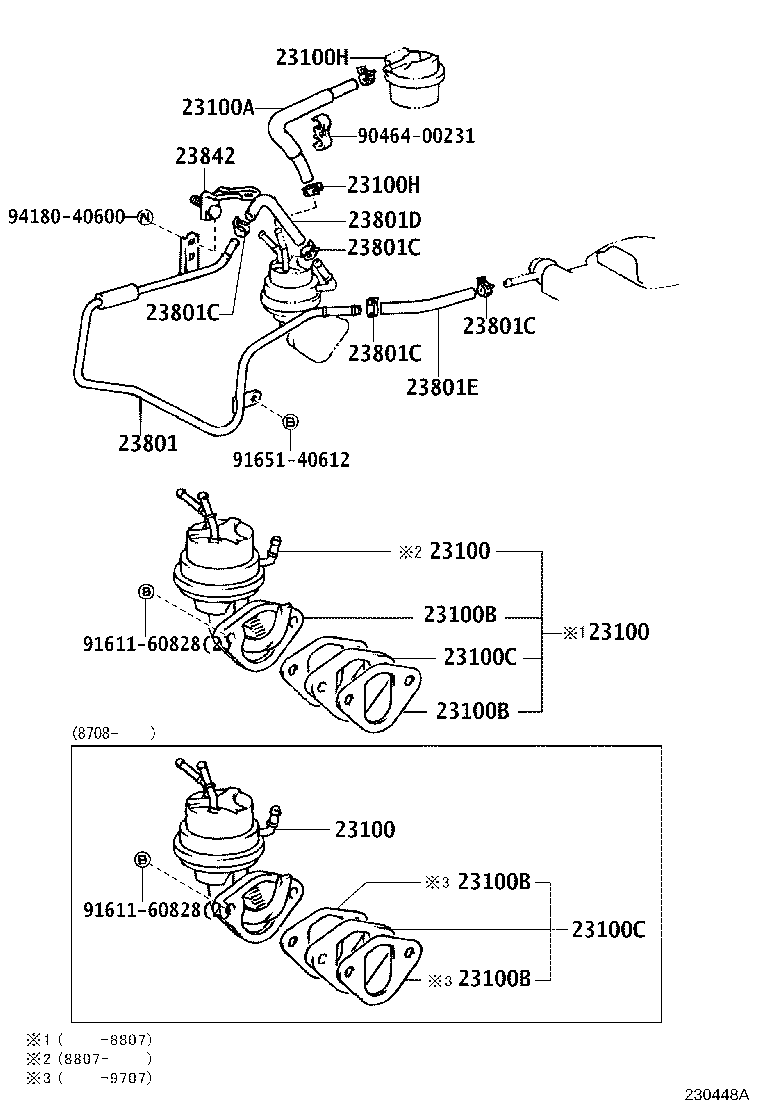

Click highlighted areas on diagram

diagram 23100 23100 23100 23100A 23100B 23100B 23100B 23100B 23100C 23100C 23100H 23100H 23801 23801C 23801C 23801C 23801C 23801D 23801E 23842 9046400231 9161160828 9161160828 9165140612 9418040600
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-73031

2Y..YM55,6#

 1
23100-79055

2Y..YM55,60

 1
23100-79015

2Y..YM55,60

 1
23100 - PUMP ASSY, FUEL
23100-73031

2Y..YM55,6#

 1
23100-79055

2Y..YM55,60

 1
23100-79015

2Y..YM55,60

 1
23100 - PUMP ASSY, FUEL
23100-73031

2Y..YM55,6#

 1
23100-79055

2Y..YM55,60

 1
23100-79015

2Y..YM55,60

 1
23100A - HOSE, FUEL
23271-13030

2Y..YM55,6#

 1
90447-12058

2Y..YM55,6#

 1
23100B - GASKET, FUEL PUMP
90923-05022

2Y..YM55,6#

 2
90923-05005

2Y..YM55,60

 2
90923-05016

2Y..YM55,60

 2
23100B - GASKET, FUEL PUMP
90923-05022

2Y..YM55,6#

 2
90923-05005

2Y..YM55,60

 2
90923-05016

2Y..YM55,60

 2
23100B - GASKET, FUEL PUMP
90923-05022

2Y..YM55,6#

 2
90923-05005

2Y..YM55,60

 2
90923-05016

2Y..YM55,60

 2
23100B - GASKET, FUEL PUMP
90923-05022

2Y..YM55,6#

 2
90923-05005

2Y..YM55,60

 2
90923-05016

2Y..YM55,60

 2
23100C - INSULATOR, FUEL PUMP
90923-06018

2Y..YM55,6#

 1
90923-06014

2Y..YM55,6#

 1
90923-06001

2Y..YM55,60

 1
23100C - INSULATOR, FUEL PUMP
90923-06018

2Y..YM55,6#

 1
90923-06014

2Y..YM55,6#

 1
90923-06001

2Y..YM55,60

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2Y..YM55,6#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2Y..YM55,6#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-71011

2Y..YM55,6#

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2Y..YM55,6#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2Y..YM55,6#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2Y..YM55,6#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2Y..YM55,6#

 4
23801D - HOSE, FUEL PIPE, NO.1
95333-06010

2Y..YM55,6#

*H,L=100

 1
95332-06010

2Y..YM55,60

*H,L=100

 1
23801E - HOSE, FUEL PIPE, NO.2
95332-06010

2Y..YM55,60

 1
95333-06010

2Y..YM55,6#

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-71011

2Y..YM55,60

 1
23841-71012

2Y..YM55,6#

 1
Common parts
90464-00231
91611-60828
91651-40612
94180-40600
