YM60-TSJDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8610- )2Y

Click highlighted areas on diagram

diagram 17879 17883 17911 17911C 17911F 17912 17912B 17912C 17913C 17913C 9011908198 9011908337 9011908470 9038708016 9048016005 9048022006 9056008018
Part # Description Qty Price
17879 - PAD, AIR CLEANER INLET
17879-95702

2Y..YM55,6#

 1
17879-95702

2Y..YM55,6#

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-95700

2Y..YM55,6#

 1
17883-95700

2Y..YM55,6#

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-95703

2Y..YM55,6#

 1
52810-95703

2Y..YM55,6#

 1
17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1
96111-10750

2Y..YM55,6#

 1
96111-10750

2Y..YM55,6#

 1
96111-10750

2Y..YM55,60

 2
96111-10750

2Y..YM55,60

 2
17911F - PROTECTOR, COOL AIR INTAKE INLET
53298-95700

2Y..YM55,6#

 1
53298-95700

2Y..YM55,6#

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-95702

2Y..YM55,6#

 1
52820-95702

2Y..YM55,6#

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52854-95701

2Y..YM55,6#

 1
52854-95701

2Y..YM55,6#

 1
17912C - CLAMP, COOL AIR INTAKE DUCT, NO.2
90460-71001

2Y..YM55,6#

 1
90460-71001

2Y..YM55,6#

 1
17913C - CLAMP, COOL AIR INTAKE DUCT, NO.3
90460-01044

2Y..YM55,60

NO.2

 1
90460-01044

2Y..YM55,60

NO.2

 1
90460-01041

2Y..YM55,60

NO.1

 1
90460-01041

2Y..YM55,60

NO.1

 1
90460-01049

2Y..YM55,60

NO.1

 1
90460-01049

2Y..YM55,60

NO.1

 1
90460-01044

2Y..YM55,6#

NO.2

 1
90460-01044

2Y..YM55,6#

NO.2

 1
90460-01049

2Y..YM55,6#

NO.1

 1
90460-01049

2Y..YM55,6#

NO.1

 1
17913C - CLAMP, COOL AIR INTAKE DUCT, NO.3
90460-01044

2Y..YM55,60

NO.2

 1
90460-01044

2Y..YM55,60

NO.2

 1
90460-01041

2Y..YM55,60

NO.1

 1
90460-01041

2Y..YM55,60

NO.1

 1
90460-01049

2Y..YM55,60

NO.1

 1
90460-01049

2Y..YM55,60

NO.1

 1
90460-01044

2Y..YM55,6#

NO.2

 1
90460-01044

2Y..YM55,6#

NO.2

 1
90460-01049

2Y..YM55,6#

NO.1

 1
90460-01049

2Y..YM55,6#

NO.1

 1
Common parts
90119-08198
90119-08337
90119-08470
90387-08016
90480-16005
90480-22006
90560-08018

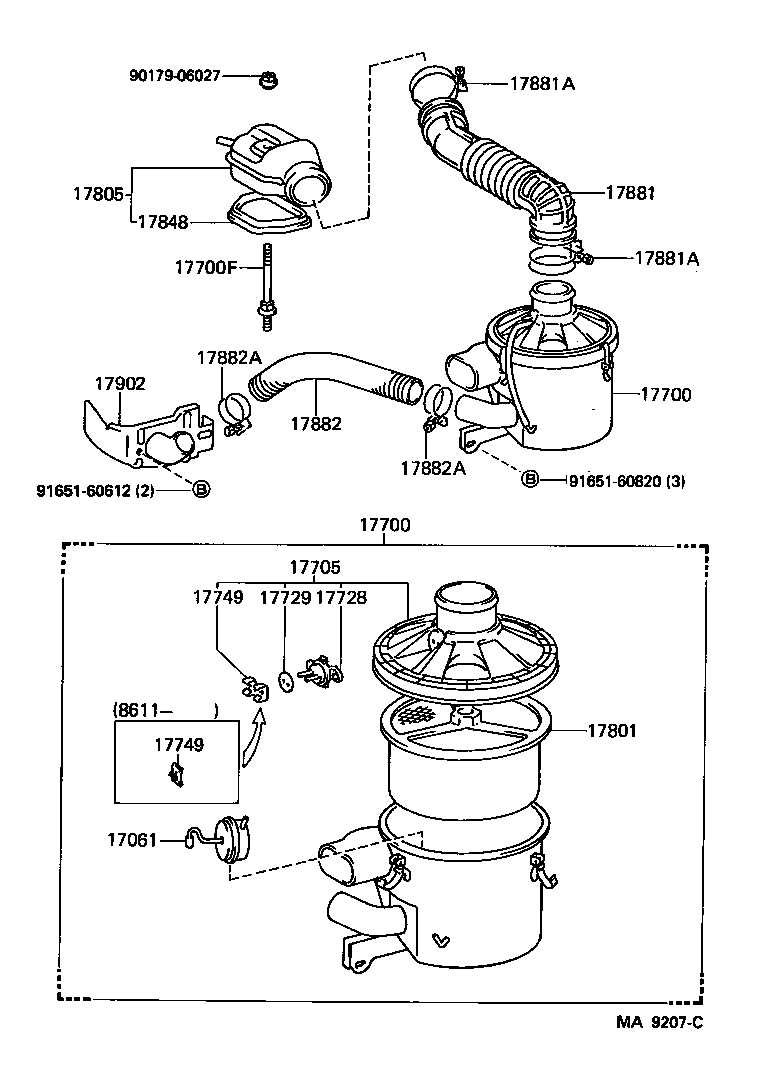

ILLUST NO. 1 OF 2(8610- )2Y

Click highlighted areas on diagram

diagram 17061 17700 17700 17700F 17705 17728 17729 17749 17749 17801 17805 17848 17881 17881A 17881A 17882 17882A 17882A 17902 9017906027 9165160612 9165160820
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-13040

2Y..YM55,6#

 1
17700 - CLEANER ASSY, AIR
17700-72150

2Y..YM6#

 1
17700 - CLEANER ASSY, AIR
17700-72150

2Y..YM6#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06222

2Y..YM55,6#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-72070

2Y..YM6#

 1
17728 - VALVE, THERMOSTATIC
17728-31030

2Y..YM55,6#

 1
17729 - GASKET, THERMOSTAT VALVE
17729-31010

2Y..YM55,6#

 1
17749 - SUPPORT, THERMOSTAT VALVE
17749-13010

2Y..YM55,6#

 2
17749-31010

2Y..YM55,60

 1
17749 - SUPPORT, THERMOSTAT VALVE
17749-13010

2Y..YM55,6#

 2
17749-31010

2Y..YM55,60

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-13050

2Y..YM55,6#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-72020

2Y..YM55,6#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

2Y..YM55,6#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-72030

2Y..YM55,6#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001

2Y..YM55,6#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001

2Y..YM55,6#

 2
17882 - HOSE, AIR CLEANER, NO.2
17881-74040

2Y..YM55,60

 1
17882-71021

2Y..YM55,6#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-47036

2Y..YM55,6#

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-47036

2Y..YM55,6#

 2
17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1
17895-72020

2Y..YM55,6#

 1
Common parts
90179-06027
91651-60612
91651-60820
