YM60-TSJDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )2Y

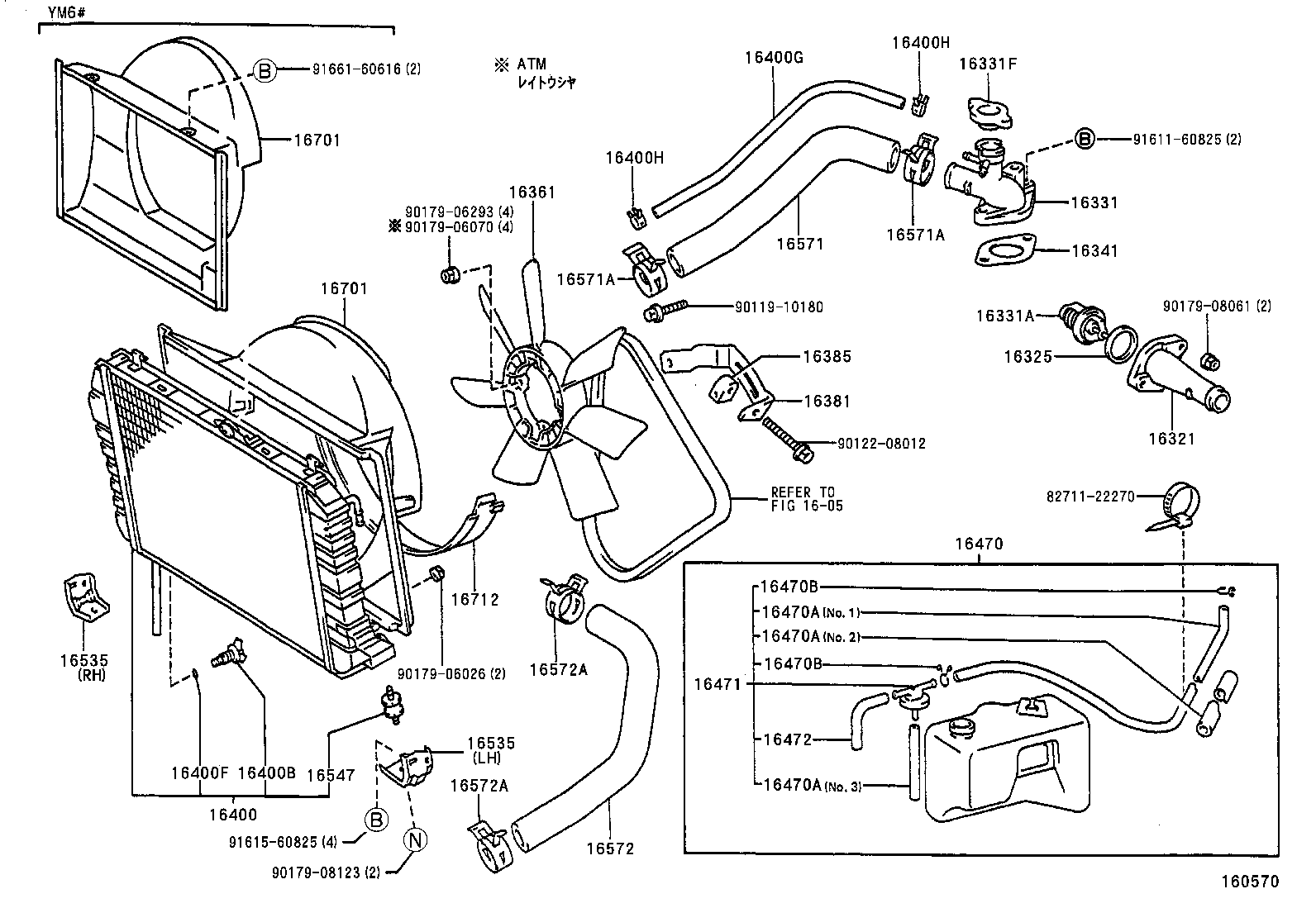

Click highlighted areas on diagram

diagram 1605 16321 16325 16331 16331A 16331F 16341 16361 16381 16385 16400 16400B 16400F 16400G 16400H 16400H 16470 16470A 16470A 16470A 16470B 16470B 16471 16472 16535 16535 16547 16571 16571A 16571A 16572 16572A 16572A 16701 16701 16712 8271122270 9011910180 9012208012 9017906026 9017906070 9017906293 9017908061 9017908123 9161160825 9161560825 9166160616
Part # Description Qty Price
16321 - INLET, WATER
16321-71010

2Y..YM55,6#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

2Y..YM55,6#

 1
16331 - OUTLET, WATER
16304-71010

2Y..YM55,6#

 1
16331A - THERMOSTAT
90916-03069

2Y..YM55,6#

*WAX 82−95

 1
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16401-63010

2Y..YM55,60

DENSO

 1
16401-15210

2Y..YM55,60

TOYO RADIATOR

 1
16401-15210

2Y..YM55,6#

TOYO

 1
16401-63010

2Y..YM55,6#

NIPPONDENSO

 1
16341 - GASKET, WATER OUTLET
16341-71010

2Y..YM55,60

 1
16361 - FAN
16361-44041

2Y..YM6#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-73011

2Y..YM55,6#

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-71010

2Y..YM55,6#

 1
16400 - RADIATOR ASSY
16400-73280

2Y..YM6#

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

2Y..YM55,6#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

2Y..YM55,6#

 1
16400G - HOSE(FOR RADIATOR BREATHER)
99555-10460

2Y..YM6#

*H,L=460

 1
16400H - CLAMP OR CLIP(FOR RADIATOR BREATHER HOSE)
90467-13001

2Y..YM55,6#

 2
16400H - CLAMP OR CLIP(FOR RADIATOR BREATHER HOSE)
90467-13001

2Y..YM55,6#

 2
16470 - TANK ASSY, RADIATOR RESERVE
16470-73020

2Y..YM55,60

 1
16470-73021

2Y..YM55,60

 1
16470-73022

2Y..YM55,6#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2Y..YM55,6#

*H,L=105,NO.3

 1
85338-73030

2Y..YM55,6#

長さ=400,NO.2

 1
85338-73010

2Y..YM55,6#

NO.1

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2Y..YM55,6#

*H,L=105,NO.3

 1
85338-73030

2Y..YM55,6#

長さ=400,NO.2

 1
85338-73010

2Y..YM55,6#

NO.1

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2Y..YM55,6#

*H,L=105,NO.3

 1
85338-73030

2Y..YM55,6#

長さ=400,NO.2

 1
85338-73010

2Y..YM55,6#

NO.1

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y..YM55,6#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y..YM55,6#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16471-73010

2Y..YM55,60

 1
16471-73011

2Y..YM55,60

 1
16471-73012

2Y..YM55,6#

 1
16472 - HOSE, BREATHER
85338-30010

2Y..YM55,6#

 1
16535 - SUPPORT, RADIATOR, LOWER
16534-64020

2Y..YM60

LH

 1
16533-64080

2Y..YM60

RH

 1
16533-64080

2Y..YM6#

右側

 1
16534-64020

2Y..YM6#

左側

 1
16535 - SUPPORT, RADIATOR, LOWER
16534-64020

2Y..YM60

LH

 1
16533-64080

2Y..YM60

RH

 1
16533-64080

2Y..YM6#

右側

 1
16534-64020

2Y..YM6#

左側

 1
16571 - HOSE, RADIATOR, INLET
16571-73060

2Y..YM6#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

2Y..YM55,6#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

2Y..YM55,6#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-73050

2Y..YM6#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

2Y..YM55,6#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

2Y..YM55,6#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-73050

2Y..YM6#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-73050

2Y..YM6#

 1
16712 - SHROUD, FAN, NO.2
16712-73050

2Y..YM6#

 1
Common parts
82711-22270
90119-10180
90122-08012
90179-06026
90179-06070
90179-06293
90179-08061
90179-08123
91611-60825
91615-60825
91661-60616
