YM60-TFQDS (1990)

Toyota Lite/Townace Truck

Production Aug 1990 - Jun 1999
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610-9508)CM6#,YM6#

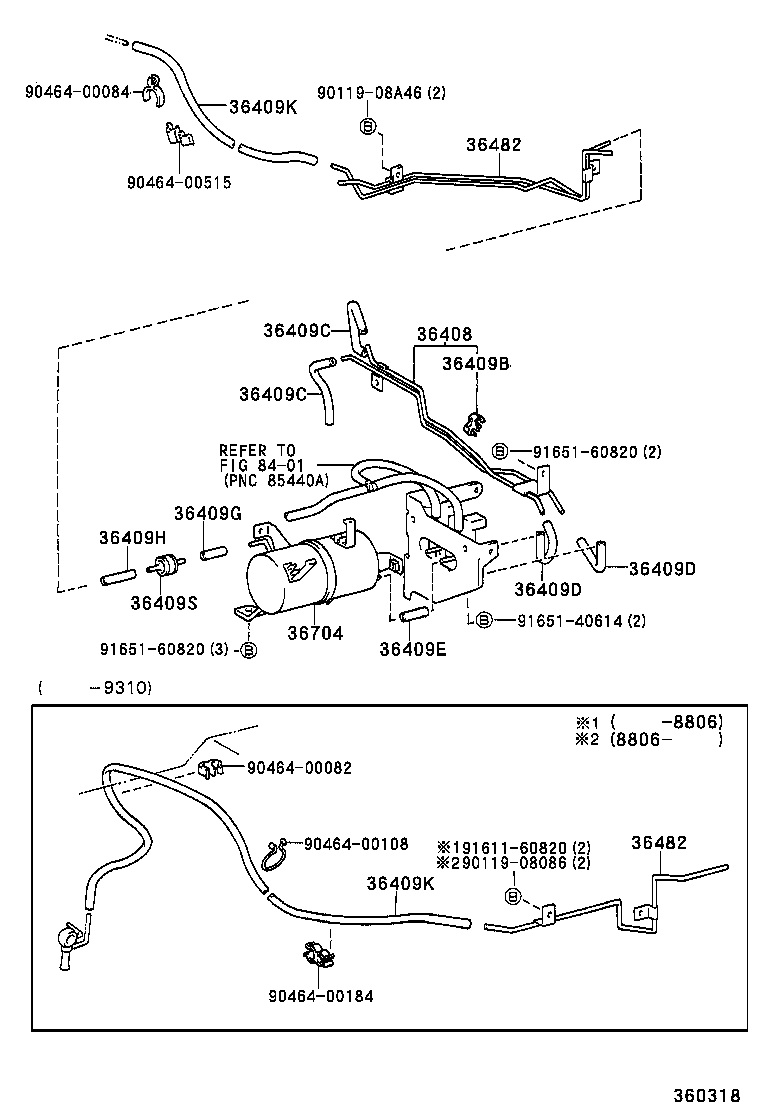

Click highlighted areas on diagram

diagram 36408 36409B 36409C 36409C 36409D 36409D 36409E 36409G 36409H 36409K 36409K 36409S 36482 36482 36704 8401 9011908086 9011908A46 9046400082 9046400084 9046400108 9046400184 9046400515 9161160820 9165140614 9165160820 9165160820
Part # Description Qty Price
36408 - TUBE SUB-ASSY, TRANSFER VACUUM
36408-27010

CM6#,YM6#

 1
36408-27010

CM6#,YM6#

 1
36408-27010

CM6#,YM6#

 1
36408-27010

CM6#,YM6#

 1
36408-27010

CM6#,YM6#

 1
36409B - CLAMP, VACUUM TUBE
90464-00403

CM6#,YM6#

 1
90464-00403

CM6#,YM6#

 1
90464-00403

CM6#,YM6#

 1
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
90445-10027

CM6#,YM6#

長さ=150

 2
90445-10027

CM6#,YM6#

長さ=150

 2
90446-10005

YM6#

長さ=280

 1
90446-10005

CM6#,YM6#

長さ=280

 1
95411-49933

CM6#,YM6#

長さ=210

 1
90445-10082

CM6#,YM6#

長さ=205

 1
95411-49906

CM6#,YM6#

長さ=40

 1
90446-10005

CM6#,YM6#

長さ=280

 1
90446-10004

CM6#,YM6#

長さ=230

 1
95411-49933

YM6#

長さ=210

 1
90445-10082

CM6#,YM6#

長さ=205

 1
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
90445-10027

CM6#,YM6#

長さ=150

 2
90445-10027

CM6#,YM6#

長さ=150

 2
90446-10005

YM6#

長さ=280

 1
90446-10005

CM6#,YM6#

長さ=280

 1
95411-49933

CM6#,YM6#

長さ=210

 1
90445-10082

CM6#,YM6#

長さ=205

 1
95411-49906

CM6#,YM6#

長さ=40

 1
90446-10005

CM6#,YM6#

長さ=280

 1
90446-10004

CM6#,YM6#

長さ=230

 1
95411-49933

YM6#

長さ=210

 1
90445-10082

CM6#,YM6#

長さ=205

 1
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
95411-49913

CM6#,YM6#

長さ=130

 1
90445-10028

CM6#,YM6#

長さ=100

 2
90445-10028

CM6#,YM6#

長さ=100

 2
90445-10028

CM6#,YM6#

長さ=100

 2
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
95411-49913

CM6#,YM6#

長さ=130

 1
90445-10028

CM6#,YM6#

長さ=100

 2
90445-10028

CM6#,YM6#

長さ=100

 2
90445-10028

CM6#,YM6#

長さ=100

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
90445-10025

CM6#,YM6#

長さ=40

 2
90445-10025

CM6#,YM6#

長さ=40

 2
90445-10025

CM6#,YM6#

長さ=40

 2
36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)
90999-92002

CM6#,YM6#

*H,L=30

 1
90999-92002

CM6#,YM6#

*H,L=30

 1
90999-92002

CM6#,YM6#

*H,L=30

 1
36409H - HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)
90999-92002

CM6#,YM6#

*H,L=140,ﾏｰｸ=#*

 1
90999-92002

CM6#,YM6#

*H,L=140,ﾏｰｸ=#*

 1
95411-49933

CM6#,YM6#

長さ=260

 1
95411-49933

CM6#,YM6#

長さ=260

 1
90999-92002

CM6#,YM6#

*H,L=140,ﾏｰｸ=#*

 1
36409K - HOSE, VACUUM, NO.6 (FOR FRONT DRIVE SHIFT)
90999-92003

YM60

 1
95411-10095

YM60

*H,L=750

 1
36409K - HOSE, VACUUM, NO.6 (FOR FRONT DRIVE SHIFT)
90999-92003

YM60

 1
95411-10095

YM60

*H,L=750

 1
36409S - VALVE, CHECK (FOR FRONT DRIVE SHIFT)
90917-10065

CM6#,YM60

 1
90917-10049

CM6#,YM6#

 1
90917-10049

CM6#,YM6#

 1
36482 - TUBE, FRONT DRIVE VACUUM, NO.2
36482-27011

CM6#,YM6#

 1
36482-27011

CM6#,YM6#

 1
36482-27011

CM6#,YM6#

 1
36482-27010

CM6#,YM6#

 1
36482 - TUBE, FRONT DRIVE VACUUM, NO.2
36482-27011

CM6#,YM6#

 1
36482-27011

CM6#,YM6#

 1
36482-27011

CM6#,YM6#

 1
36482-27010

CM6#,YM6#

 1
36704 - RESERVOIR SUB-ASSY, TRANSMISSION VACUUM
36704-27010

CM6#,YM6#

 1
36704-27030

CM6#,YM6#

 1
36704-27030

CM6#,YM6#

 1
36704-27030

CM6#,YM6#

 1
Common parts
90119-08086
90119-08A46
90464-00082
90464-00084
90464-00108
90464-00184
90464-00515
91611-60820
91651-40614
91651-60820
Linked diagrams
8401

(9508- )YM6#

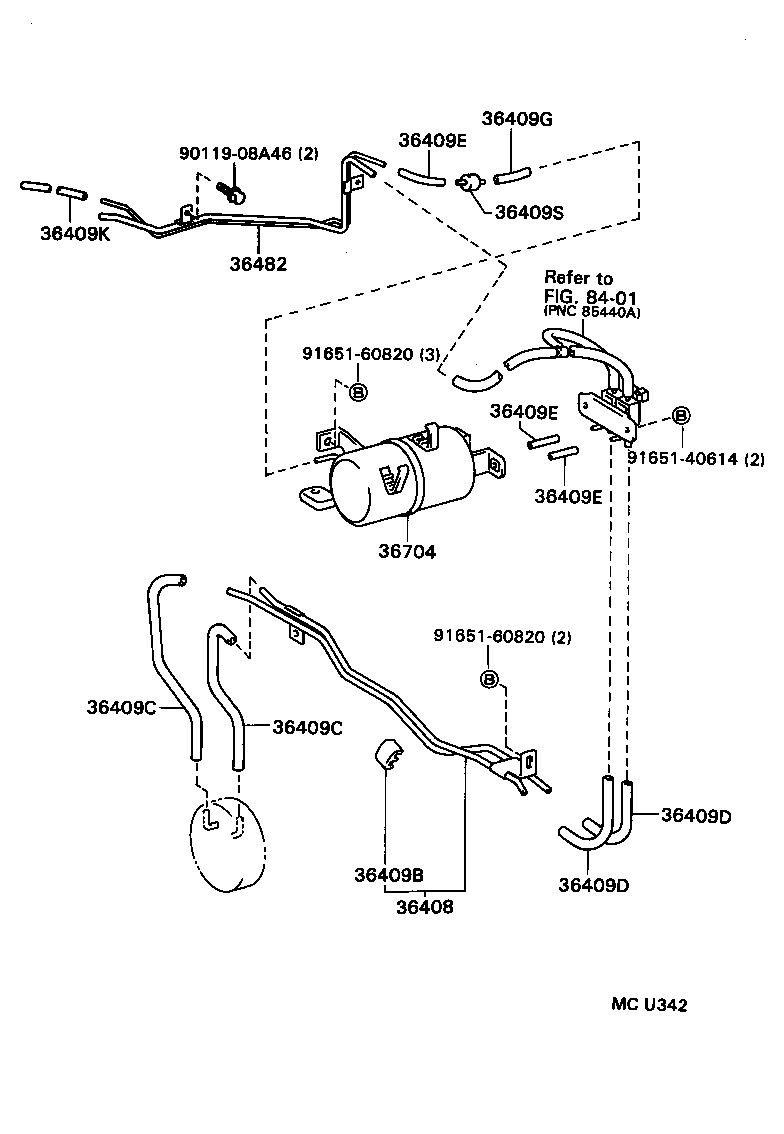

Click highlighted areas on diagram

diagram 36408 36409B 36409C 36409C 36409D 36409D 36409E 36409E 36409E 36409G 36409K 36409S 36482 36704 8401 9011908A46 9165140614 9165160820 9165160820
Part # Description Qty Price
36408 - TUBE SUB-ASSY, TRANSFER VACUUM
36408-27010

CM6#,YM6#

 1
36408-27010

CM6#,YM6#

 1
36408-27010

CM6#,YM6#

 1
36408-27010

CM6#,YM6#

 1
36408-27010

CM6#,YM6#

 1
36409B - CLAMP, VACUUM TUBE
90464-00403

CM6#,YM6#

 1
90464-00403

CM6#,YM6#

 1
90464-00403

CM6#,YM6#

 1
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
90445-10027

CM6#,YM6#

長さ=150

 2
90445-10027

CM6#,YM6#

長さ=150

 2
90446-10005

YM6#

長さ=280

 1
90446-10005

CM6#,YM6#

長さ=280

 1
95411-49933

CM6#,YM6#

長さ=210

 1
90445-10082

CM6#,YM6#

長さ=205

 1
95411-49906

CM6#,YM6#

長さ=40

 1
90446-10005

CM6#,YM6#

長さ=280

 1
90446-10004

CM6#,YM6#

長さ=230

 1
95411-49933

YM6#

長さ=210

 1
90445-10082

CM6#,YM6#

長さ=205

 1
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
90445-10027

CM6#,YM6#

長さ=150

 2
90445-10027

CM6#,YM6#

長さ=150

 2
90446-10005

YM6#

長さ=280

 1
90446-10005

CM6#,YM6#

長さ=280

 1
95411-49933

CM6#,YM6#

長さ=210

 1
90445-10082

CM6#,YM6#

長さ=205

 1
95411-49906

CM6#,YM6#

長さ=40

 1
90446-10005

CM6#,YM6#

長さ=280

 1
90446-10004

CM6#,YM6#

長さ=230

 1
95411-49933

YM6#

長さ=210

 1
90445-10082

CM6#,YM6#

長さ=205

 1
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
95411-49913

CM6#,YM6#

長さ=130

 1
90445-10028

CM6#,YM6#

長さ=100

 2
90445-10028

CM6#,YM6#

長さ=100

 2
90445-10028

CM6#,YM6#

長さ=100

 2
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
95411-49913

CM6#,YM6#

長さ=130

 1
90445-10028

CM6#,YM6#

長さ=100

 2
90445-10028

CM6#,YM6#

長さ=100

 2
90445-10028

CM6#,YM6#

長さ=100

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
90445-10025

CM6#,YM6#

長さ=40

 2
90445-10025

CM6#,YM6#

長さ=40

 2
90445-10025

CM6#,YM6#

長さ=40

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
90445-10025

CM6#,YM6#

長さ=40

 2
90445-10025

CM6#,YM6#

長さ=40

 2
90445-10025

CM6#,YM6#

長さ=40

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
90445-10025

CM6#,YM6#

長さ=40

 2
90445-10025

CM6#,YM6#

長さ=40

 2
90445-10025

CM6#,YM6#

長さ=40

 2
36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)
90999-92002

CM6#,YM6#

*H,L=30

 1
90999-92002

CM6#,YM6#

*H,L=30

 1
90999-92002

CM6#,YM6#

*H,L=30

 1
36409K - HOSE, VACUUM, NO.6 (FOR FRONT DRIVE SHIFT)
90999-92003

YM60

 1
95411-10095

YM60

*H,L=750

 1
36409S - VALVE, CHECK (FOR FRONT DRIVE SHIFT)
90917-10065

CM6#,YM60

 1
90917-10049

CM6#,YM6#

 1
90917-10049

CM6#,YM6#

 1
36482 - TUBE, FRONT DRIVE VACUUM, NO.2
36482-27011

CM6#,YM6#

 1
36482-27011

CM6#,YM6#

 1
36482-27011

CM6#,YM6#

 1
36482-27010

CM6#,YM6#

 1
36704 - RESERVOIR SUB-ASSY, TRANSMISSION VACUUM
36704-27010

CM6#,YM6#

 1
36704-27030

CM6#,YM6#

 1
36704-27030

CM6#,YM6#

 1
36704-27030

CM6#,YM6#

 1
Common parts
90119-08A46
91651-40614
91651-60820
Linked diagrams
8401
