YM60-TFJDS (1986)
Toyota Lite/Townace Truck
(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH | ||||
| 51071-27040 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH | ||||
| 51072-27010 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-27320 |
YM60 |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-27130 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51201-27100 |
CM6#,YM60 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51201-27100 |
CM6#,YM60 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51204-27090 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-27120 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-27110 |
CM60,65,YM6# |
1 | ||
| 51207 - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51209-27040 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51345-27010 |
CM50,51,6#,KM5#,YM60..JL,T1 RH |
1 | ||
| 51346-27010 |
CM50,51,6#,KM5#,YM60..JL,T1 LH |
1 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51345-27010 |
CM50,51,6#,KM5#,YM60..JL,T1 RH |
1 | ||
| 51346-27010 |
CM50,51,6#,KM5#,YM60..JL,T1 LH |
1 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51345-27010 |
CM50,51,6#,KM5#,YM60..JL,T1 RH |
1 | ||
| 51346-27010 |
CM50,51,6#,KM5#,YM60..JL,T1 LH |
1 | ||
| 51355 - BRACKET, REAR SPRING, REAR RH | ||||
| 51355-26010 |
CM50,51,60,65,KM5#,YM6#..JL,JLC,T1 |
1 | ||
| 51355 - BRACKET, REAR SPRING, REAR RH | ||||
| 51355-26010 |
CM50,51,60,65,KM5#,YM6#..JL,JLC,T1 |
1 | ||
| 51356 - BRACKET, REAR SPRING, REAR LH | ||||
| 51356-26010 |
CM50,51,60,65,KM5#,YM6#..JL,JLC,T1 |
1 | ||
| 51356 - BRACKET, REAR SPRING, REAR LH | ||||
| 51356-26010 |
CM50,51,60,65,KM5#,YM6#..JL,JLC,T1 |
1 | ||
| 51365 - STOPPER, REAR BUMPER | ||||
| 51365-27010 |
CM50,51,60,65,KM5#,YM6#..JL,JLC,T1 |
2 | ||
| 51365 - STOPPER, REAR BUMPER | ||||
| 51365-27010 |
CM50,51,60,65,KM5#,YM6#..JL,JLC,T1 |
2 | ||
| 51391 - GUSSET, FRAME REAR CROSSMEMBER, RH | ||||
| 51391-27040 |
CM5#,6#,KM5#,YM55,60 FR |
1 | ||
| 51392-27020 |
CM5#,6#,KM5#,YM55,60 RR |
1 | ||
| 51391 - GUSSET, FRAME REAR CROSSMEMBER, RH | ||||
| 51391-27040 |
CM5#,6#,KM5#,YM55,60 FR |
1 | ||
| 51392-27020 |
CM5#,6#,KM5#,YM55,60 RR |
1 | ||
| 51392 - GUSSET, FRAME REAR CROSSMEMBER, LH | ||||
| 51391-27040 |
CM5#,6#,KM5#,YM55,60 RR |
1 | ||
| 51392-27020 |
CM5#,6#,KM5#,YM55,60 FR |
1 | ||
| 51392 - GUSSET, FRAME REAR CROSSMEMBER, LH | ||||
| 51391-27040 |
CM5#,6#,KM5#,YM55,60 RR |
1 | ||
| 51392-27020 |
CM5#,6#,KM5#,YM55,60 FR |
1 | ||
| 51731 - BRACKET, CAB REAR MOUNTING, RH | ||||
| 51705-27080 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 51732 - BRACKET, CAB REAR MOUNTING, LH | ||||
| 51706-27060 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51743-26010 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51743-26010 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51742-27030 |
KM5#..1SO;KM50..GUT;CM60,YM60..T1 |
2 | ||
| 51742-27030 |
CM51,60,KM5#,YM60 |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51742-27030 |
KM5#..1SO;KM50..GUT;CM60,YM60..T1 |
2 | ||
| 51742-27030 |
CM51,60,KM5#,YM60 |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51742-27030 |
KM5#..1SO;KM50..GUT;CM60,YM60..T1 |
2 | ||
| 51742-27030 |
CM51,60,KM5#,YM60 |
2 | ||
| Common parts | ||||
| 90101-10142 | ||||
| 90119-10454 | ||||
| 90119-12138 | ||||
| 90168-60020 | ||||
| 90170-10015 | ||||
| 90179-08091 | ||||
| 91651-40820 | ||||
| 91651-60825 | ||||
| 91651-61025 | ||||
| 94612-11600 | ||||
| 94613-11001 | ||||
| 95381-04030 | ||||

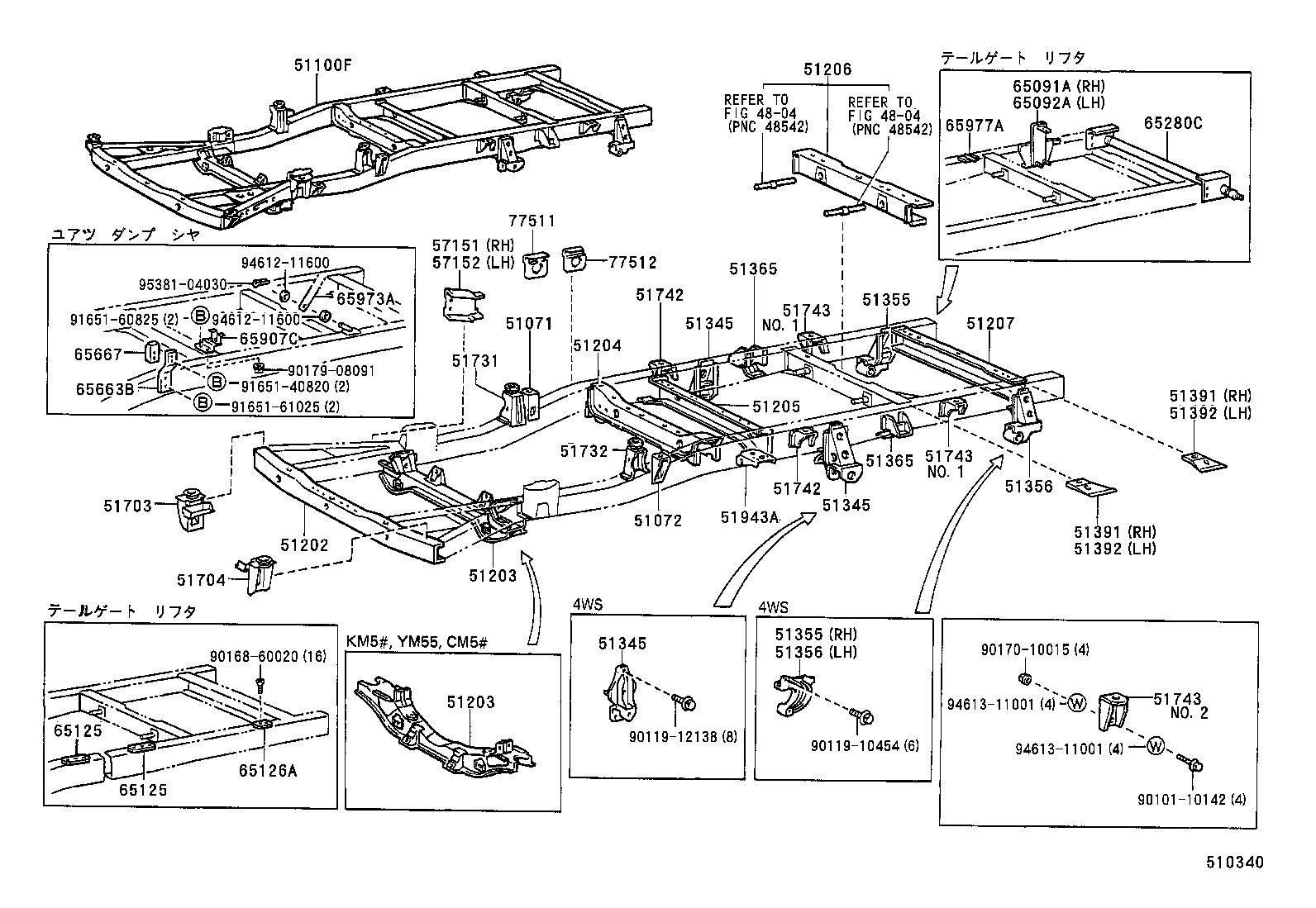

| Linked diagrams | ||||
| 4804 | ||||
