YM60-TFJDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )

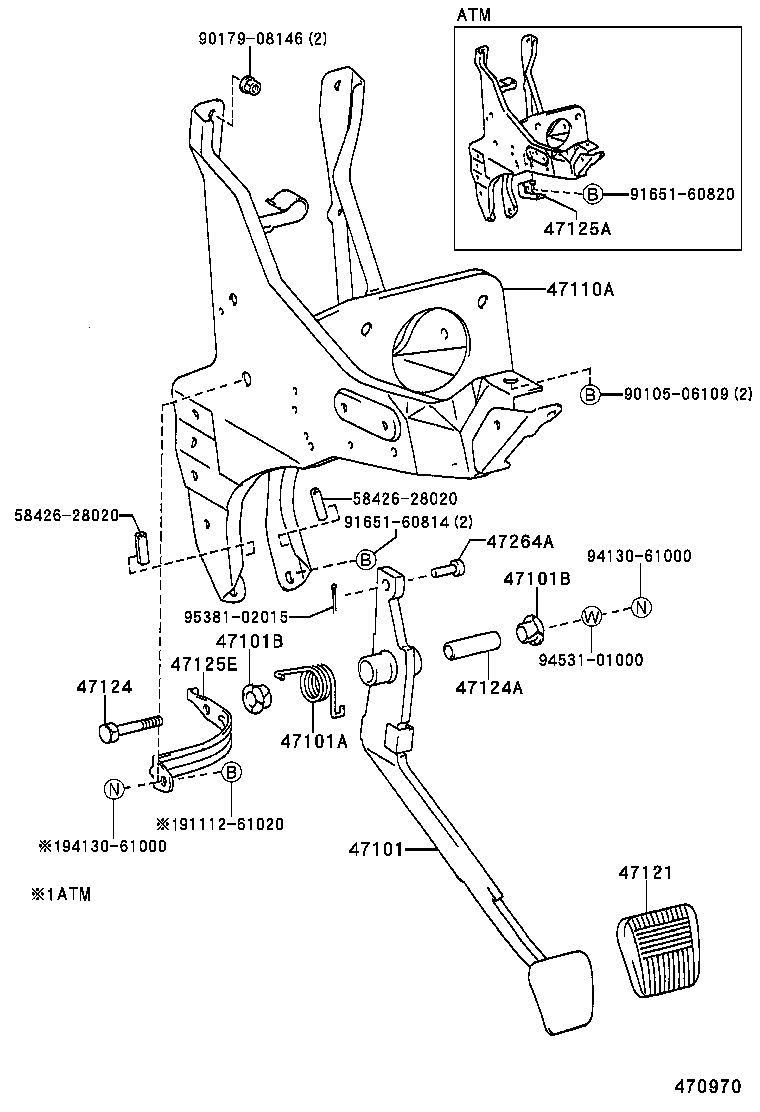

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47110A 47121 47124 47124A 47125A 47125E 47264A 5842628020 5842628020 9010506109 9017908146 9111261020 9165160814 9165160820 9413061000 9413061000 9453101000 9538102015
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-27060

CM5#,6#,KM5#,YM55,60

 1
47101-27060

CM5#,6#,KM5#,YM55,6#..3FC,4H,5F,5H

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90508-35030

CM5#,6#,KM5#,YM55,6#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

CM5#,6#,KM5#,YM55,6#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

CM5#,6#,KM5#,YM55,6#

 2
47110A - BRACKET ASSY, PEDAL
55150-95700

CM5#,6#,KM5#,YM55,6#

 1
47121 - PAD, BRAKE PEDAL
31321-14020

CM5#,6#,KM5#,YM55,6#

 1
47124 - SHAFT, BRAKE PEDAL
91121-51060

CM5#,6#,KM5#,YM55,6#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

CM5#,6#,KM5#,YM55,6#

 1
47125E - SUPPORT, BOOSTER STAY
55172-95703

CM5#,6#,KM5#,YM55,6#

 1
47264A - PIN(FOR PUSH ROD)
90240-08070

CM5#,6#,KM5#,YM55,6#

 1
Common parts
58426-28020
90105-06109
90179-08146
91112-61020
91651-60814
91651-60820
94130-61000
94531-01000
95381-02015
