YM60-TBQDS3 (1990)

Toyota Lite/Townace Truck

Production Aug 1990 - Jun 1999
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )

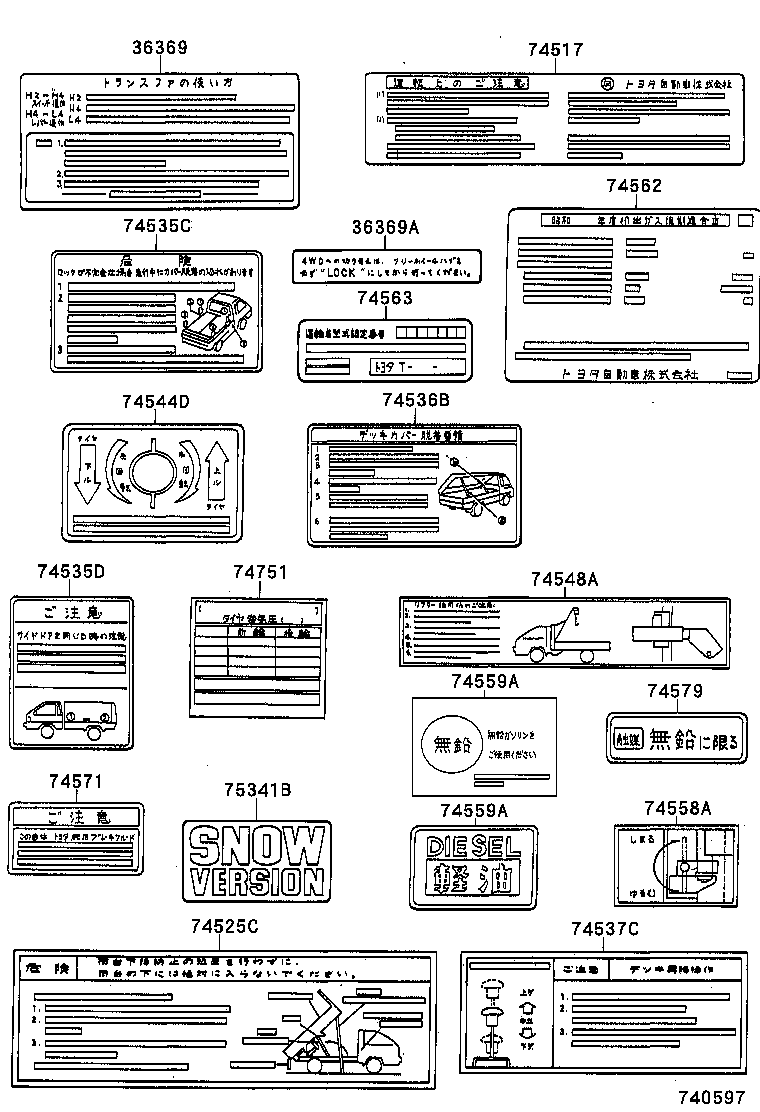

Click highlighted areas on diagram

diagram 36369 36369A 74517 74525C 74535C 74535D 74536B 74537C 74544D 74548A 74558A 74559A 74559A 74562 74563 74571 74579 74751 75341B
Part # Description Qty Price
36369 - LABEL, TRANSFER INFORMATION
36369-27010

CM6#,YM6#

 1
36369-27040

CM65..TS;CM60,61,YM6#

 1
36369-27050

CM6#,YM6#

 1
36369-27010

CM65..TS;CM60,61,YM6#

 1
36369A - LABEL, TRANSFER INFORMATION, NO.2
36369-27060

CM65..TS;CM60,61,YM6#

 1
36369-28110

CM65..TS;CM60,61,YM6#

 1
36369-27030

CM6#,YM6#

 1
36369-27060

CM6#,YM6#

 1
36369-28110

CM6#,YM6#

 1
74517 - PLATE, EXHAUST TEMPERATURE CAUTION
74517-32010

YM55,60..DX

 1
74517-32010

KM51,YM55,6#..DX

ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ

 1
74517-25010

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
74517-26030

CM5#,6#,KM51,YM55,6#

 1
74517-32050

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
74517-32020

CM5#,6#,KM5#..DX

 1
74525C - PLATE, DUMP MANUAL CAUTION
74525-27010

CM51,60,KM51,YM60..JL..5H..IV

 1
74537C - PLATE, DUMP LEVER
74537-27010

CM51,60,KM51,YM60..JL..5H..IV

 1
74559A - PLATE, FUEL CAUTION
74559-14030

CM5#,6#

 1
74559-14030

CM5#,60,61;CM65..JL..TS

 1
74559-14010

KM5#,YM55,60

 1
74559A - PLATE, FUEL CAUTION
74559-14030

CM5#,6#

 1
74559-14030

CM5#,60,61;CM65..JL..TS

 1
74559-14010

KM5#,YM55,60

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-20420

CM51,55,6#

 1
74562-28210

CM65..TS;CM5#,60,61

 1
74562-27140

YM55,60

 1
74562-27190

YM55,6#

 1
74562-27191

YM55,6#

 1
74563 - PLATE, EMISSION CONTROL DEVICE IDENTIFICATION
74563-28090

YM55,6#..MTM

 1
74563-28200

YM55,6#

 1
74563-27080

YM55,60

 1
74563-28200

YM55,60

MARK=T-2Y-JGA

 1
74563-28141

CM65..TS;CM5#,60,61

 1
74563-28140

CM65..TS;CM5#,60,61

 1
74563-28141

CM5#,6#

MARK=T-2C-KB

 1
74571 - PLATE, BRAKE FLUID CAUTION
47288-32010

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
47287-28020

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
47288-32010

CM5#,6#,KM5#,YM55,60

 1
74579 - PLATE, UNLEADED FUEL CAUTION
74579-30011

YM55,60

 1
74579-30011

KM51,YM55,6#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-27210

CM60,YM60..TS..3SO

 1
42661-27201

CM60,YM60..IV

TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ

 1
42661-27211

CM60,YM60..TS..3SO

ﾏｰｸ=RT

 1
42661-27191

CM60,YM60

ﾏｰｸ=QQ

 1
75341B - PLATE, HOOD NAME
75341-20060

CM5#,6#,KM51,YM55,6#

 1
75341-20060

CM5#,6#,KM51,YM55,6#

 1
75341-20060

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
