YM60-TBJDS3 (1986)
Toyota Lite/Townace Truck
Production
Oct 1986
-
Aug 1990
Engine
2Y
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8610-9310)CM52,6#,YM6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-28010 |
CM52,6#,YM6# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95722 |
CM52,6#,YM6# |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-95700 |
CM52,6#,YM6# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95700 |
CM6#,YM60 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95709 |
CM60,65,YM6# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
CM6#,YM60 400G |
1 | ||
| 90986-02001 |
CM5#,6#,KM5#,YM55,60 400G |
2 | ||
| 90986-02004 |
YM60;CM6#,KM51..3FC,3HC,5H 250G |
3 | ||
| 90986-02001 |
YM60;CM6#,KM51..3FC,3HC,5H 400G |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-87002 |
CM52,6#,YM6# |
1 | ||
| 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) | ||||
| 88635-95704 |
CM52,6#,YM6# |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53735-95701 |
CM52,6#,YM6# |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-95713 |
CM52,6#,YM6# |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-95714 |
CM52,6#,YM6# |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 53733-95700 |
CM52,6#,YM6# |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 53737-95702 |
CM52,6#,YM6# |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 53734-95700 |
YM60 |
1 | ||
| Common parts | ||||
| 88718-14450 | ||||
| 88892-95705 | ||||
| 88897-95703 | ||||
| 90091-20612 | ||||
| 90179-06032 | ||||
| 90179-08123 | ||||
| 90464-00165 | ||||
| 91651-60820 | ||||
| 93385-16012 | ||||
| 93385-16020 | ||||

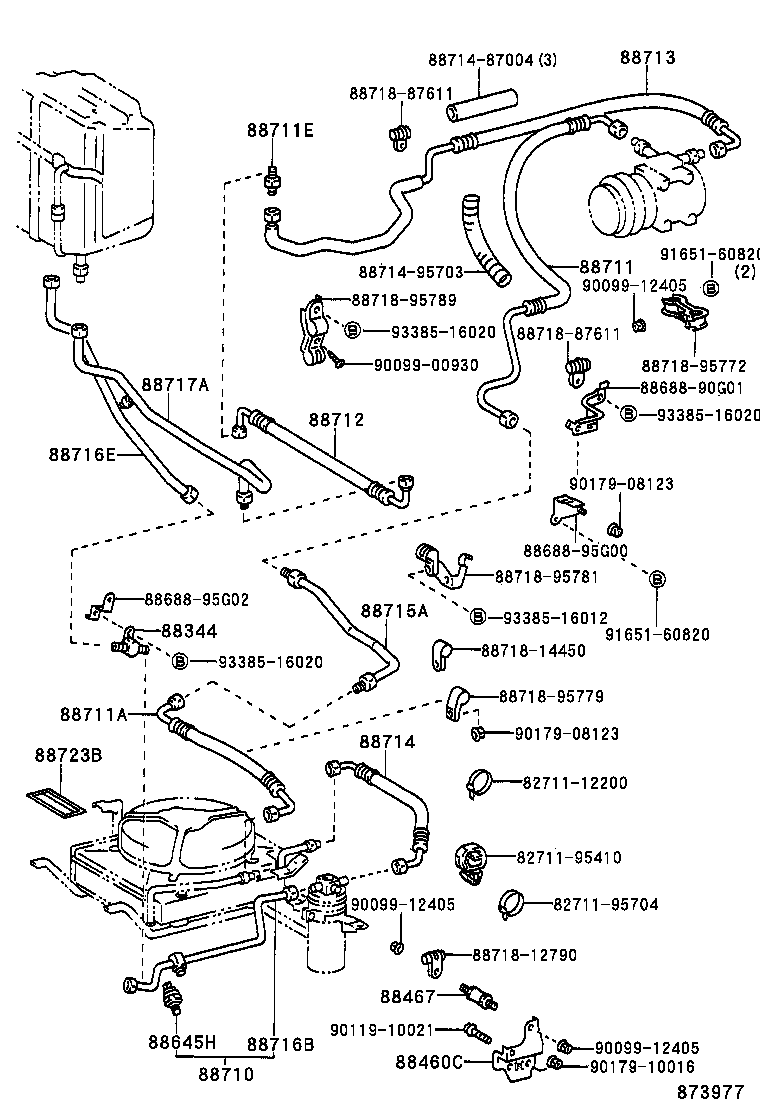

ILLUST NO. 2 OF 2(8610-9310)YM6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88481-87002 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95788 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
YM6# |
2 | ||
| 88467-14040 |
CM5#,6#,KM5#,YM55 |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-90D01 |
CM6#,YM60 |
1 | ||
| 88645-10020 |
CM6#,YM60 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-95701 |
CM60,65,YM6# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95743 |
YM6# |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-95742 |
CM6#,YM6# |
1 | ||
| 88711E - UNION, NO.1(FOR COOLER HOSE) | ||||
| 90404-22005 |
YM6# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95737 |
YM6# |
1 | ||
| 88712-95735 |
CM52,6# |
1 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-95736 |
YM6# |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95714 |
CM52,6#,YM6# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95705 |
CM60,65,YM6# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95761 |
CM60,65,YM6# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95762 |
CM6#,YM60 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95748 |
CM5#,6# |
1 | ||
| 88717-95750 |
YM6# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-95410 | ||||
| 82711-95704 | ||||
| 88688-90G01 | ||||
| 88688-95G00 | ||||
| 88688-95G02 | ||||
| 88714-87004 | ||||
| 88714-95703 | ||||
| 88718-12790 | ||||
| 88718-14450 | ||||
| 88718-87611 | ||||
| 88718-95772 | ||||
| 88718-95779 | ||||
| 88718-95781 | ||||
| 88718-95789 | ||||
| 90099-00930 | ||||
| 90099-12405 | ||||
| 90119-10021 | ||||
| 90179-08123 | ||||
| 90179-10016 | ||||
| 91651-60820 | ||||
| 93385-16012 | ||||
| 93385-16020 | ||||
ILLUST NO. 2 OF 2(8610-9310)CM52,6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88481-87002 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95788 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
YM6# |
2 | ||
| 88467-14040 |
CM5#,6#,KM5#,YM55 |
3 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
YM6# |
2 | ||
| 88467-14040 |
CM5#,6#,KM5#,YM55 |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-90D01 |
CM6#,YM60 |
1 | ||
| 88645-10020 |
CM6#,YM60 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-95701 |
CM60,65,YM6# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95743 |
YM6# |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-95742 |
CM6#,YM6# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95737 |
YM6# |
1 | ||
| 88712-95735 |
CM52,6# |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95714 |
CM52,6#,YM6# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95705 |
CM60,65,YM6# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95761 |
CM60,65,YM6# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95762 |
CM6#,YM60 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95748 |
CM5#,6# |
1 | ||
| 88717-95750 |
YM6# |
1 | ||
| Common parts | ||||
| 88688-95765 | ||||
| 88688-95770 | ||||
| 88688-95789 | ||||
| 88688-95G02 | ||||
| 88688-95G03 | ||||
| 88714-87004 | ||||
| 88714-95703 | ||||
| 88718-12790 | ||||
| 88718-14450 | ||||
| 88718-30720 | ||||
| 88718-87611 | ||||
| 88718-95737 | ||||
| 88718-95770 | ||||
| 88718-95781 | ||||
| 88892-95704 | ||||
| 90099-12405 | ||||
| 90119-10021 | ||||
| 90179-08123 | ||||
| 90179-10016 | ||||
| 90464-00442 | ||||
| 91651-60820 | ||||
| 93385-16020 | ||||
| 93385-18020 | ||||
