YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

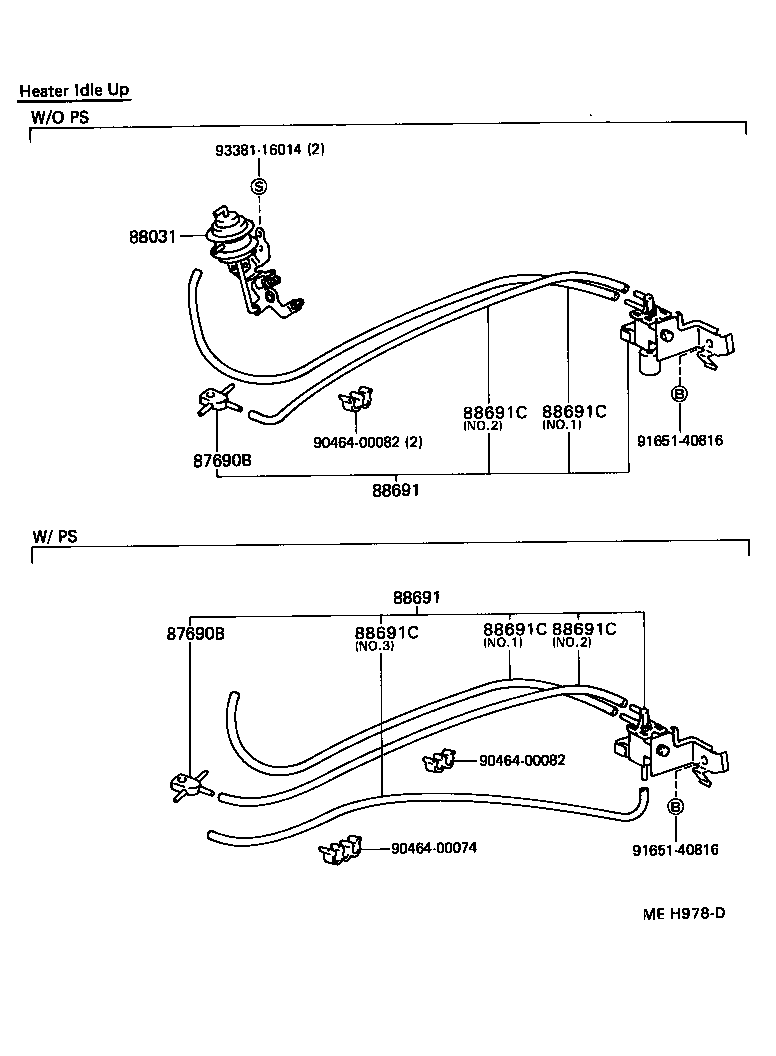

(8610- )YM55,6#

Click highlighted areas on diagram

diagram 87690B 87690B 88031 88691 88691 88691C 88691C 88691C 88691C 88691C 9046400074 9046400082 9046400082 9165140816 9165140816 9338116014
Part # Description Qty Price
87690B - WAY, 3
90413-04005

CM5#,6#,KM5#,YM55,60

ｱﾘ(ｸ-ﾗ-)

 3
90413-04005

CM5#,6#,KM5#,YM55,6#

 1
87690B - WAY, 3
90413-04005

CM5#,6#,KM5#,YM55,60

ｱﾘ(ｸ-ﾗ-)

 3
90413-04005

CM5#,6#,KM5#,YM55,6#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-28020

CM5#,6#

*CIU

 1
88031-28010

YM6#

 1
88031-28020

CM5#,6#

ｱﾘ(ｸ-ﾗ-)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95759

YM55,60

ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88690-95764

YM55,6#

ｱﾘ(ｸ-ﾗ-)

 1
88690-95759

YM6#

ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95759

YM55,60

ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88690-95764

YM55,6#

ｱﾘ(ｸ-ﾗ-)

 1
88690-95759

YM6#

ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YM55,60

長さ=300,ﾏｰｸ=#0,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19960

KM51,YM55,60

*H,L=600,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19930

YM55,60

*H,L=300,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YM55,60

長さ=300,ﾏｰｸ=#0,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19960

KM51,YM55,60

*H,L=600,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19930

YM55,60

*H,L=300,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YM55,60

長さ=300,ﾏｰｸ=#0,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19960

KM51,YM55,60

*H,L=600,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19930

YM55,60

*H,L=300,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YM55,60

長さ=300,ﾏｰｸ=#0,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19960

KM51,YM55,60

*H,L=600,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19930

YM55,60

*H,L=300,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YM55,60

長さ=300,ﾏｰｸ=#0,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19960

KM51,YM55,60

*H,L=600,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19930

YM55,60

*H,L=300,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
Common parts
90464-00074
90464-00082
91651-40816
93381-16014

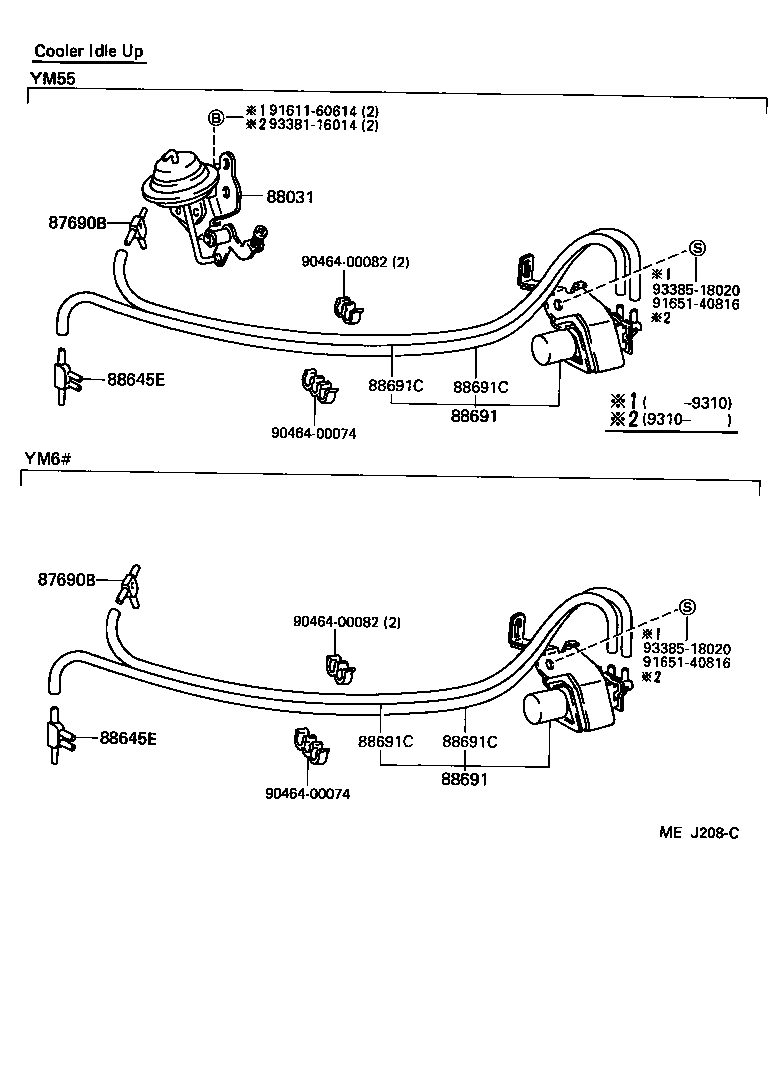

(8610- )YM55,6#

Click highlighted areas on diagram

diagram 87690B 87690B 88031 88645E 88645E 88691 88691 88691C 88691C 88691C 88691C 9046400074 9046400074 9046400082 9046400082 9161160614 9165140816 9165140816 9338116014 9338518020 9338518020
Part # Description Qty Price
87690B - WAY, 3
90413-04005

CM5#,6#,KM5#,YM55,60

ｱﾘ(ｸ-ﾗ-)

 3
90413-04005

CM5#,6#,KM5#,YM55,6#

 1
87690B - WAY, 3
90413-04005

CM5#,6#,KM5#,YM55,60

ｱﾘ(ｸ-ﾗ-)

 3
90413-04005

CM5#,6#,KM5#,YM55,6#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-28020

CM5#,6#

*CIU

 1
88031-28010

YM6#

 1
88031-28020

CM5#,6#

ｱﾘ(ｸ-ﾗ-)

 1
88645E - JOINT, NO.2 (FOR IDLE UP DEVICE)
90414-04002

YM55,60

*CIU

 1
88645E - JOINT, NO.2 (FOR IDLE UP DEVICE)
90414-04002

YM55,60

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95759

YM55,60

ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88690-95764

YM55,6#

ｱﾘ(ｸ-ﾗ-)

 1
88690-95759

YM6#

ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95759

YM55,60

ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88690-95764

YM55,6#

ｱﾘ(ｸ-ﾗ-)

 1
88690-95759

YM6#

ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YM55,60

長さ=300,ﾏｰｸ=#0,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19960

KM51,YM55,60

*H,L=600,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19930

YM55,60

*H,L=300,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YM55,60

長さ=300,ﾏｰｸ=#0,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19960

KM51,YM55,60

*H,L=600,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19930

YM55,60

*H,L=300,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YM55,60

長さ=300,ﾏｰｸ=#0,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19960

KM51,YM55,60

*H,L=600,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19930

YM55,60

*H,L=300,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YM55,60

長さ=300,ﾏｰｸ=#0,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19960

KM51,YM55,60

*H,L=600,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19930

YM55,60

*H,L=300,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
Common parts
90464-00074
90464-00082
91611-60614
91651-40816
93381-16014
93385-18020

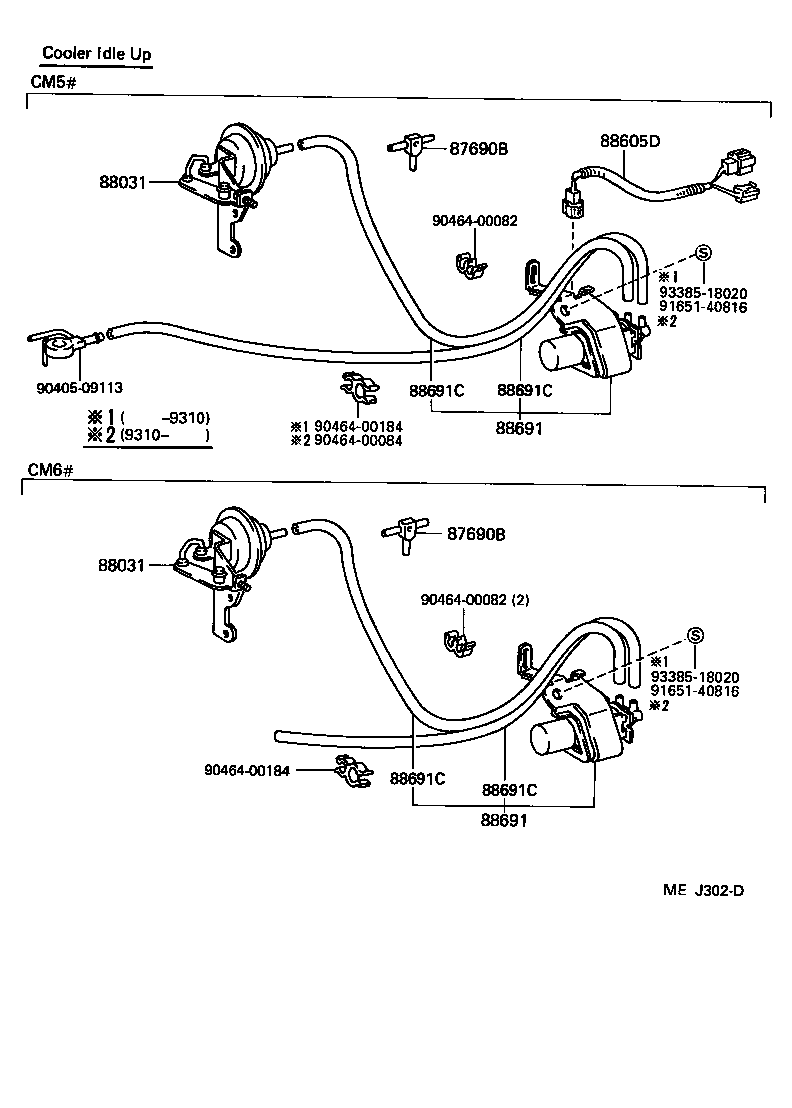

(8610- )CM5#,6#

Click highlighted areas on diagram

diagram 87690B 87690B 88031 88031 88605D 88691 88691 88691C 88691C 88691C 88691C 9040509113 9046400082 9046400082 9046400084 9046400184 9046400184 9165140816 9165140816 9338518020 9338518020
Part # Description Qty Price
87690B - WAY, 3
90413-04005

CM5#,6#,KM5#,YM55,60

ｱﾘ(ｸ-ﾗ-)

 3
90413-04005

CM5#,6#,KM5#,YM55,6#

 1
87690B - WAY, 3
90413-04005

CM5#,6#,KM5#,YM55,60

ｱﾘ(ｸ-ﾗ-)

 3
90413-04005

CM5#,6#,KM5#,YM55,6#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-28020

CM5#,6#

*CIU

 1
88031-28010

YM6#

 1
88031-28020

CM5#,6#

ｱﾘ(ｸ-ﾗ-)

 1
88031 - ACTUATOR SET, IDLE-UP
88031-28020

CM5#,6#

*CIU

 1
88031-28010

YM6#

 1
88031-28020

CM5#,6#

ｱﾘ(ｸ-ﾗ-)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95759

YM55,60

ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88690-95764

YM55,6#

ｱﾘ(ｸ-ﾗ-)

 1
88690-95759

YM6#

ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95759

YM55,60

ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88690-95764

YM55,6#

ｱﾘ(ｸ-ﾗ-)

 1
88690-95759

YM6#

ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YM55,60

長さ=300,ﾏｰｸ=#0,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19960

KM51,YM55,60

*H,L=600,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19930

YM55,60

*H,L=300,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YM55,60

長さ=300,ﾏｰｸ=#0,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19960

KM51,YM55,60

*H,L=600,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19930

YM55,60

*H,L=300,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YM55,60

長さ=300,ﾏｰｸ=#0,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19960

KM51,YM55,60

*H,L=600,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19930

YM55,60

*H,L=300,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YM55,60

長さ=300,ﾏｰｸ=#0,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19960

KM51,YM55,60

*H,L=600,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
95411-19930

YM55,60

*H,L=300,ﾏｰｸ=#*,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
Common parts
90405-09113
90464-00082
90464-00084
90464-00184
91651-40816
93385-18020
