YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )KM5#,YM55,6#

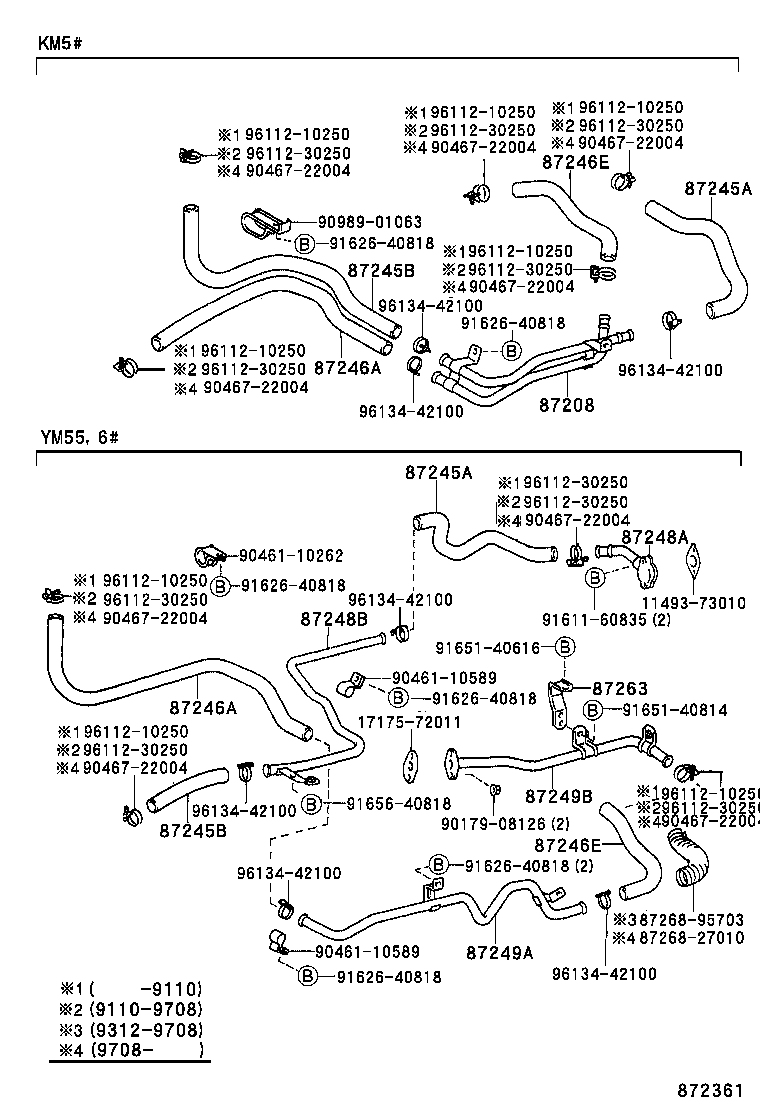

Click highlighted areas on diagram

diagram 1149373010 1717572011 87208 87245A 87245A 87245B 87245B 87246A 87246A 87246E 87246E 87248A 87248B 87249A 87249B 87263 8726827010 8726895703 9017908126 9046110262 9046110589 9046110589 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9098901063 9161160835 9162640818 9162640818 9162640818 9162640818 9162640818 9162640818 9165140616 9165140814 9165640818 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-95736

CM5#,6#

 1
87245-95737

YM55,6#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95736

CM5#,6#

 1
87245-95737

YM55,6#

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

CM5#,6#,YM55,60

長さ=500

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

CM5#,6#,YM55,60

長さ=500

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

CM5#,6#,KM5#,YM55,60

*H,L=820

 1
99556-30980

CM5#,6#,KM5#,YM55,60

*H,L=980

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

CM5#,6#,KM5#,YM55,60

*H,L=820

 1
99556-30980

CM5#,6#,KM5#,YM55,60

*H,L=980

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95757

CM5#,6#

 1
87245-95758

YM55,6#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95757

CM5#,6#

 1
87245-95758

YM55,6#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YM55,6#

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95743

CM5#,6#,YM55,6#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95757

YM55,6#

 1
87208-95741

CM5#,6#

 1
87208-95742

YM55,60

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-28021

YM55,6#

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-28011

YM55,6#

 1
Common parts
11493-73010
17175-72011
87268-27010
87268-95703
90179-08126
90461-10262
90461-10589
90467-22004
90989-01063
91611-60835
91626-40818
91651-40616
91651-40814
91656-40818
96112-10250
96112-30250
96134-42100

(8610- )CM5#,6#

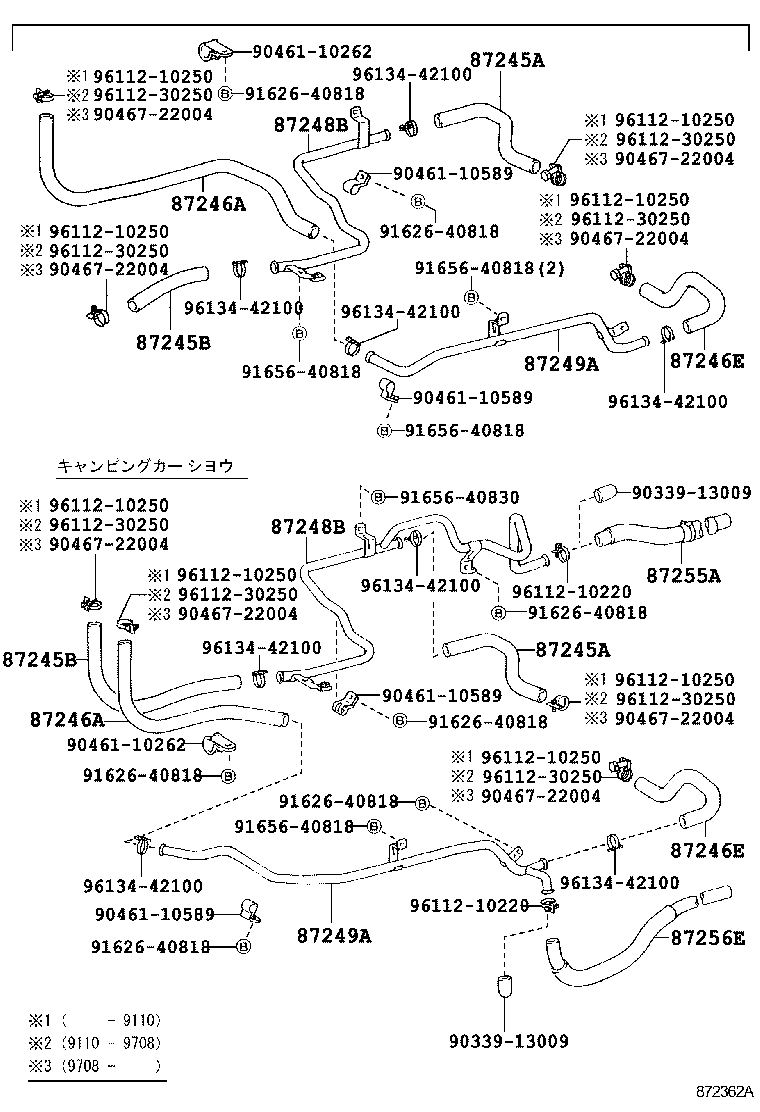

Click highlighted areas on diagram

diagram 87245A 87245A 87245B 87245B 87246A 87246A 87246E 87246E 87248B 87248B 87249A 87249A 87255A 87256E 9033913009 9033913009 9046110262 9046110262 9046110589 9046110589 9046110589 9046110589 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9162640818 9162640818 9162640818 9162640818 9162640818 9162640818 9162640818 9165640818 9165640818 9165640818 9165640818 9165640830 9611210220 9611210220 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-95736

CM5#,6#

 1
87245-95737

YM55,6#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95736

CM5#,6#

 1
87245-95737

YM55,6#

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

CM5#,6#,YM55,60

長さ=500

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

CM5#,6#,YM55,60

長さ=500

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

CM5#,6#,KM5#,YM55,60

*H,L=820

 1
99556-30980

CM5#,6#,KM5#,YM55,60

*H,L=980

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

CM5#,6#,KM5#,YM55,60

*H,L=820

 1
99556-30980

CM5#,6#,KM5#,YM55,60

*H,L=980

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95757

CM5#,6#

 1
87245-95758

YM55,6#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95757

CM5#,6#

 1
87245-95758

YM55,6#

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95743

CM5#,6#,YM55,6#

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95743

CM5#,6#,YM55,6#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95757

YM55,6#

 1
87208-95741

CM5#,6#

 1
87208-95742

YM55,60

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95757

YM55,6#

 1
87208-95741

CM5#,6#

 1
87208-95742

YM55,60

 1
Common parts
90339-13009
90461-10262
90461-10589
90467-22004
91626-40818
91656-40818
91656-40830
96112-10220
96112-10250
96112-30250
96134-42100
