YM60-TBJDS3 (1986)
Toyota Lite/Townace Truck
ILLUST NO. 6 OF 8(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
CM5#,6#,KM5#,YM55,6# 30A,緑 |
1 | ||
| 90982-09002 |
CM5#,6#,KM5#,YM55,6# 10A |
1 | ||
| 90982-09003 |
CM5#,6#,KM5#,YM55,6# 15A |
1 | ||
| 90982-09004 |
CM5#,6#,KM5#,YM55,6# 20A,黄 |
1 | ||
| 90982-09005 |
CM5#,6#,KM5#,YM55,6# 7.5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82611-95709 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 88718-95752 |
CM6#,YM60 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-27010 |
CM5#,6# |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27190 |
YM55,60 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27190 |
YM55,60 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27190 |
YM55,60 |
1 | ||
| Common parts | ||||
| 88688-27100 | ||||
| 90159-60080 | ||||
| 90179-08082 | ||||
| 90183-05032 | ||||
| 90183-05033 | ||||
| 90183-05103 | ||||
| 91651-40612 | ||||
| 93319-15010 | ||||
| 93385-15014 | ||||
| 93385-16016 | ||||
| 93560-55014 | ||||
| 93567-15016 | ||||

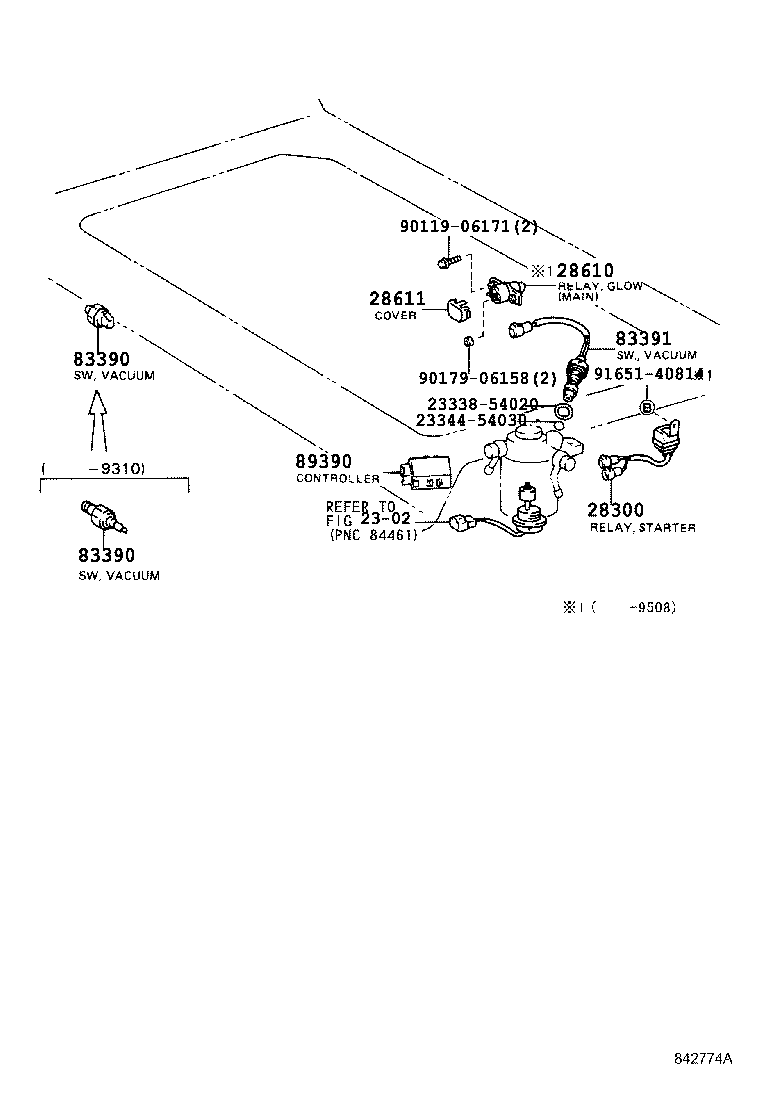

ILLUST NO. 2 OF 8(8610- )CM5#,6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
CM5#,6# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
CM5#,6# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-27050 |
YM55,60 |
1 | ||
| 83391-32020 |
CM5#,6# |
1 | ||
| Common parts | ||||
| 23338-54020 | ||||
| 23344-54030 | ||||
| 90119-06171 | ||||
| 90179-06158 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 2302 | ||||

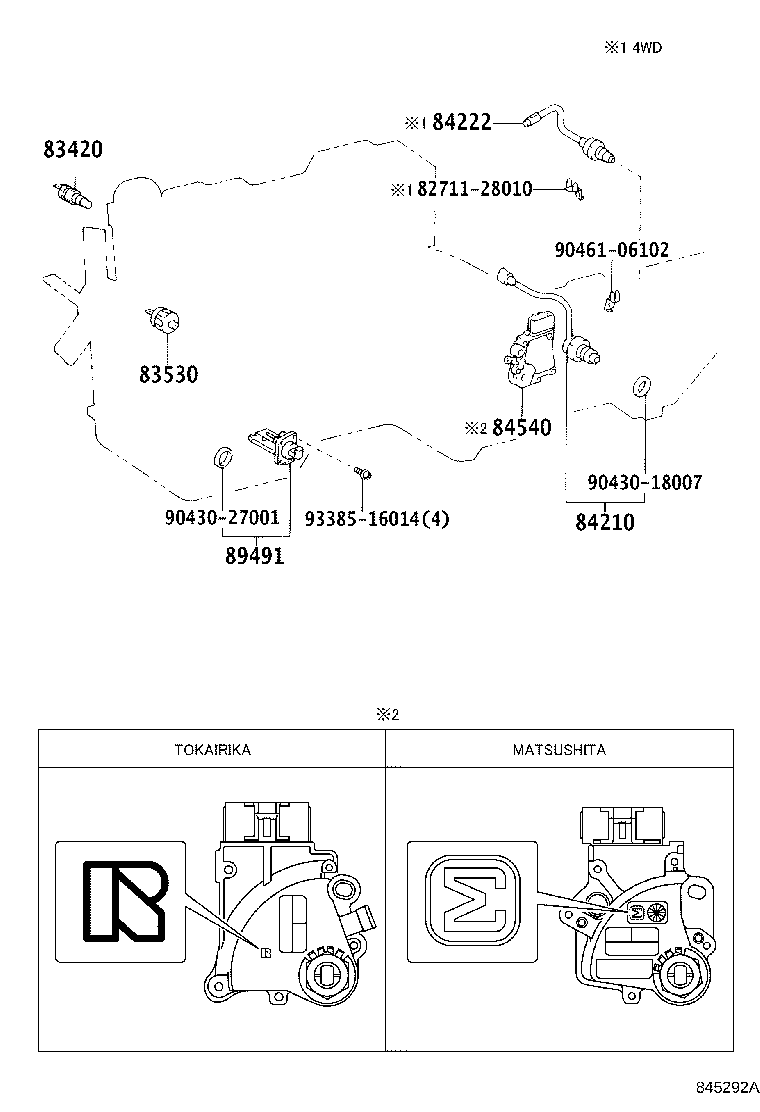

ILLUST NO. 1 OF 8(8610- )YM55,6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
YM55,6# |
1 | ||
| 83530-30060 |
CM5#,6# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-28010 |
CM6#,YM6# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-27020 |
YM55,6# |
1 | ||
| Common parts | ||||
| 82711-28010 | ||||
| 90430-18007 | ||||
| 90430-27001 | ||||
| 90461-06102 | ||||
| 93385-16014 | ||||

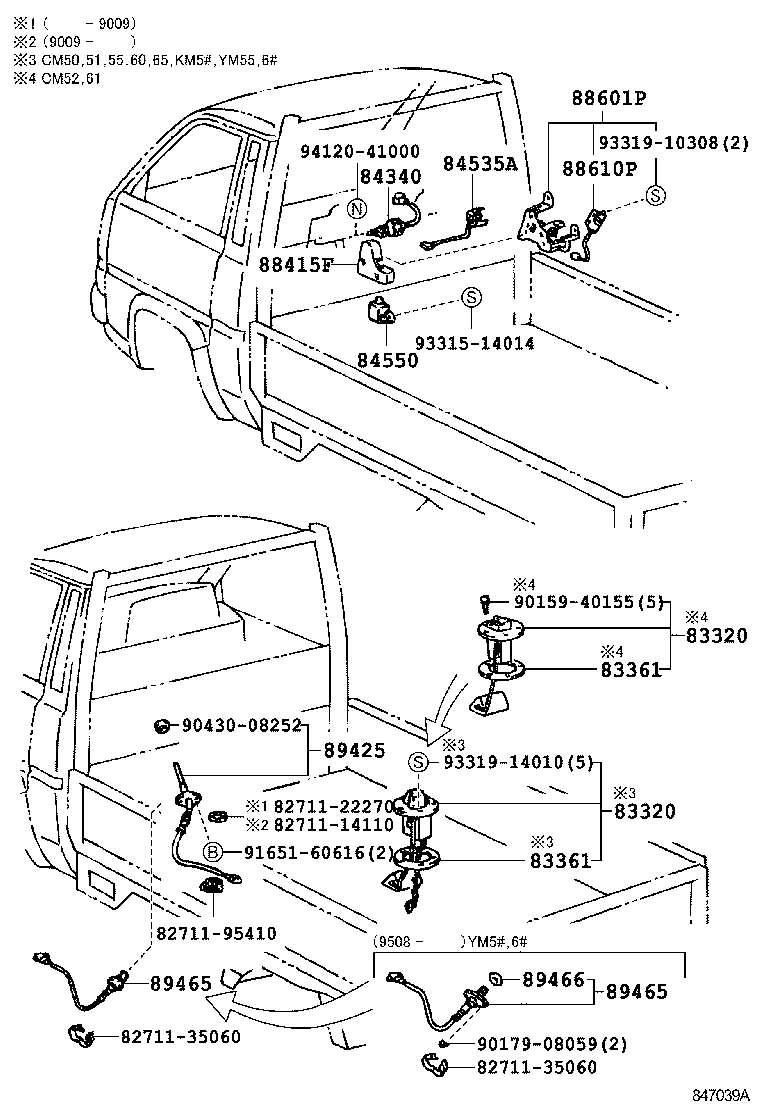

ILLUST NO. 7 OF 8(8610- )CM5#,6#,KM50,YM55,6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80063 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80063 |
CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88415F - COVER, DUST | ||||
| 88415-95703 |
CM5#,6#,KM50,YM55,60 |
1 | ||
| 88601P - SWITCH SUB-ASSY, CONTROL | ||||
| 88601-95701 |
CM5#,6#,KM50,YM55,60 |
1 | ||
| 88610P - SWITCH ASSY, CONTROL | ||||
| 88610-95715 |
CM5#,6#,KM50,YM55,60 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-29375 |
YM55,6# |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-22270 | ||||
| 82711-35060 | ||||
| 82711-95410 | ||||
| 90159-40155 | ||||
| 90179-08059 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 93315-14014 | ||||
| 93319-10308 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||
ILLUST NO. 5 OF 8(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
CM5#,6#,KM5#,YM55,6# 30A,緑 |
1 | ||
| 90982-09002 |
CM5#,6#,KM5#,YM55,6# 10A |
1 | ||
| 90982-09003 |
CM5#,6#,KM5#,YM55,6# 15A |
1 | ||
| 90982-09004 |
CM5#,6#,KM5#,YM55,6# 20A,黄 |
1 | ||
| 90982-09005 |
CM5#,6#,KM5#,YM55,6# 7.5A |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CM5#,6#,KM5#,YM55,6# ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 90987-02006 |
CM5#,6#,KM5#,YM55,6# ﾍｯﾄﾞ ﾗﾝﾌﾟ |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CM5#,6#,KM5#,YM55,6# ﾃｰﾙ ﾗﾝﾌﾟ |
1 | ||
| 90987-02006 |
CM5#,6#,KM5#,YM55,6# ﾍｯﾄﾞ ﾗﾝﾌﾟ |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02004 |
CM5#,6# |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-27010 |
CM5#,6# |
1 | ||
| Common parts | ||||
| 90179-08082 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
ILLUST NO. 4 OF 8(8610-9611)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29585 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29585 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-27020 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-27020 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-27100 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-27100 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-27080 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-27080 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| Common parts | ||||
| 82711-14550 | ||||
| 90461-12206 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 3 OF 8(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27100 |
CM5#,6#,KM5#,YM55,60 ｺﾈｸﾀｰ 8 ﾋﾟﾝ |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27100 |
CM5#,6#,KM5#,YM55,60 ｺﾈｸﾀｰ 8 ﾋﾟﾝ |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27100 |
CM5#,6#,KM5#,YM55,60 ｺﾈｸﾀｰ 8 ﾋﾟﾝ |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27100 |
CM5#,6#,KM5#,YM55,60 ｺﾈｸﾀｰ 8 ﾋﾟﾝ |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84724-27010 |
CM6#,YM6# |
1 | ||
| 84722H - BULB, TRANSMISSION CONTROL SWITCH | ||||
| 84999-10190 |
CM6#,YM6# 12V 0.87W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-95703 |
CM5#,6#,KM5#,YM55,6# ｱﾘ(ｸ-ﾗ),ASSY |
1 | ||
| 84732-12020 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 84660-95702 |
CM5#,6#,KM5#,YM55,6# ｱﾘ(ｸ-ﾗ),UNIT |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-95703 |
CM5#,6#,KM5#,YM55,6# ｱﾘ(ｸ-ﾗ),ASSY |
1 | ||
| 84732-12020 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 84660-95702 |
CM5#,6#,KM5#,YM55,6# ｱﾘ(ｸ-ﾗ),UNIT |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-95703 |
CM5#,6#,KM5#,YM55,6# ｱﾘ(ｸ-ﾗ),ASSY |
1 | ||
| 84732-12020 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 84660-95702 |
CM5#,6#,KM5#,YM55,6# ｱﾘ(ｸ-ﾗ),UNIT |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 84731-12032 |
CM5#,6#,KM5#,YM55,6# ｱﾘ(ｸ-ﾗ),NO.1 |
1 | ||
| 84731-20030 |
CM5#,6#,KM5#,YM55,6# ｱﾘ(ｸ-ﾗ),NO.2 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 84731-12032 |
CM5#,6#,KM5#,YM55,6# ｱﾘ(ｸ-ﾗ),NO.1 |
1 | ||
| 84731-20030 |
CM5#,6#,KM5#,YM55,6# ｱﾘ(ｸ-ﾗ),NO.2 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 84731-12032 |
CM5#,6#,KM5#,YM55,6# ｱﾘ(ｸ-ﾗ),NO.1 |
1 | ||
| 84731-20030 |
CM5#,6#,KM5#,YM55,6# ｱﾘ(ｸ-ﾗ),NO.2 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95710 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95710 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95710 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95710 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88610Q - SWITCH ASSY, IDLE UP | ||||
| 88610-95711 |
KM51,YM55,6#;CM51,55,KM50..4H,4HC |
1 | ||
| Common parts | ||||
| 90461-08549 | ||||
| 90462-08006 | ||||
| 90463-15003 | ||||
| 90464-00551 | ||||
| 90464-00625 | ||||
| 91651-40614 | ||||
| 93319-14012 | ||||
ILLUST NO. 8 OF 8(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95703 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-27010 |
CM6#,YM6# |
1 | ||
| 85440C - HOSE (FOR FOUR WHEEL DRIVE CONTROL) | ||||
| 90445-10016 |
YM6# |
1 | ||
| 85448 - PROTECTOR, SOLENOID | ||||
| 85448-27010 |
CM6#,YM6# |
1 | ||
| Common parts | ||||
| 84233-95701 | ||||
| 84234-95700 | ||||
| 90201-08021 | ||||
| 90201-10041 | ||||
| 90201-10444 | ||||
| 90333-25001 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||

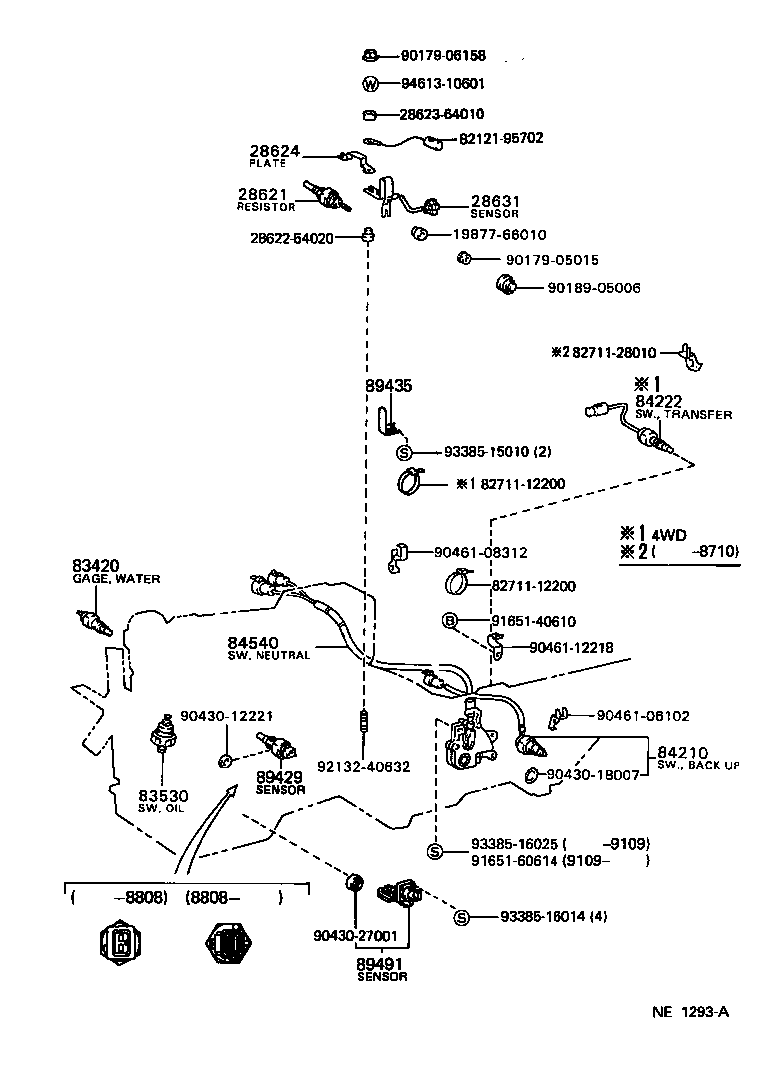

ILLUST NO. 1 OF 8(8610- )CM5#,6#,YM6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
YM55,6# |
1 | ||
| 83530-30060 |
CM5#,6# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-28010 |
CM6#,YM6# |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
CM5#,6# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-27020 |
YM55,6# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-64010 | ||||
| 82121-95702 | ||||
| 82711-12200 | ||||
| 82711-28010 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90430-27001 | ||||
| 90461-06102 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 91651-40610 | ||||
| 91651-60614 | ||||
| 92132-40632 | ||||
| 93385-15010 | ||||
| 93385-16014 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||
ILLUST NO. 2 OF 8(8610- )YM55,6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83391 - SWITCH, VACUUM | ||||
| 83391-27050 |
YM55,60 |
1 | ||
| 83391-32020 |
CM5#,6# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-27050 |
YM55,60 |
1 | ||
| 83391-32020 |
CM5#,6# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-27050 |
YM55,60 |
1 | ||
| 83391-32020 |
CM5#,6# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-27050 |
YM55,60 |
1 | ||
| 83391-32020 |
CM5#,6# |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-27050 |
YM55,60 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-27050 |
YM55,60 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-27050 |
YM55,60 |
1 | ||
| Common parts | ||||
| 90119-06061 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
