YM60-TBJDS3 (1986)
Toyota Lite/Townace Truck

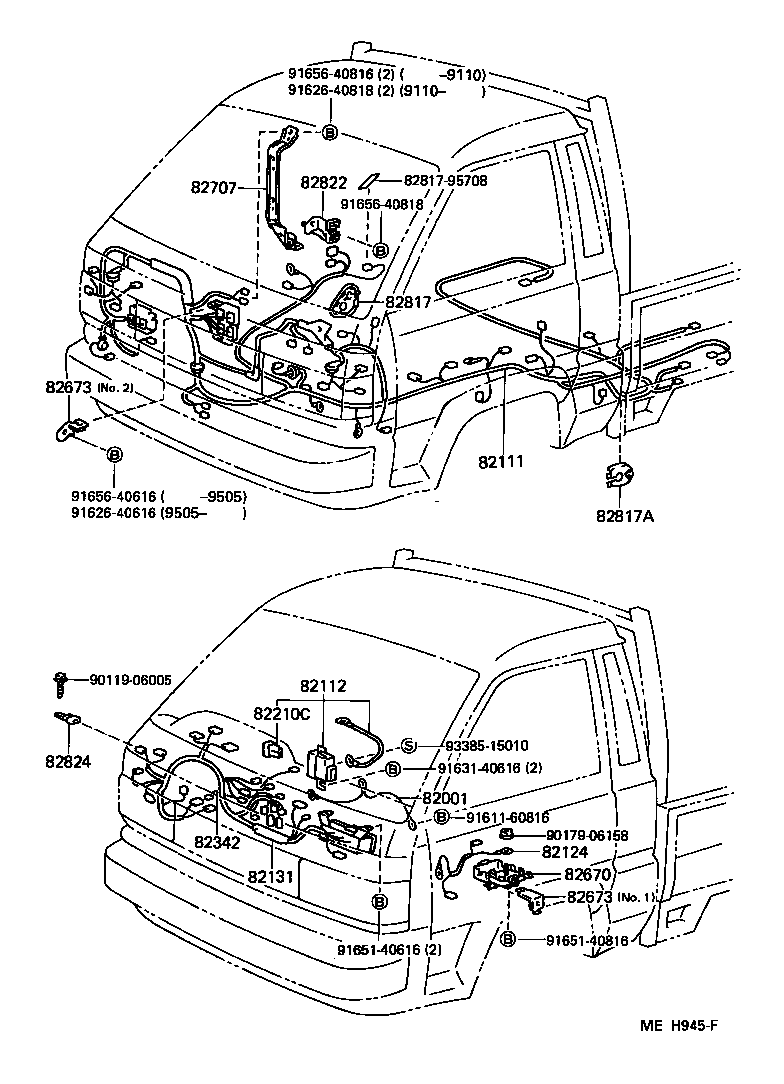

ILLUST NO. 1 OF 4(8610- )YM55,6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07322 |
YM55,6# |
1 | ||
| 90980-07278 |
YM55,60 |
1 | ||
| 90980-07286 |
CM5#,6# |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-95G31 |
YM60 ｵﾙﾀﾈｰﾀ 12V 45A |
1 | ||
| 82111-95G31 |
YM60 |
1 | ||
| 82115-95778 |
YM60..DX |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-95708 |
CM5#,6# ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 82112-95709 |
YM6#;YM55..4HC,5H;YM55..SJL..4H |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-95712 |
YM55,60 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-95757 |
YM55,60 ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 82131-95757 |
YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82131-95758 |
YM55,60..DX |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
CM5#,6# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CM5#,6#,KM5#,YM55,60 40A,ﾒｽ端子,緑,40A |
1 | ||
| 90982-08188 |
CM5#,6#,KM5#,YM55,60 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A |
1 | ||
| 90982-08202 |
CM5#,6#,YM55,60 60A,ｵｽ端子,黄,60A |
1 | ||
| 90982-08202 |
KM50..IV;CM5#,6#,YM55,60 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08202 |
CM5#,6#,KM5#,YM55,6# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08203 |
CM5#,6# 80A,ｵｽ端子,黒,80A |
1 | ||
| 90982-08228 |
CM5#,6#,KM5#,YM55,6# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08188 |
CM5#,6#,KM5#,YM55,6# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08203 |
CM5#,6#,KM5#,YM55,6# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CM5#,6#,KM5#,YM55,6# 40A,ﾒｽ端子,緑 |
1 | ||
| 82342 - WIRE, CLOCK | ||||
| 82304-95701 |
CM5#,6#,KM5#,YM55,60..DX |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-95A00 |
KM5#,YM55,60 |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-95703 |
KM5#,YM55,60 NO.1 |
1 | ||
| 82673-95703 |
YM55,60 NO.1 |
1 | ||
| 82673-95703 |
KM5#,YM55,60 NO.1 |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-95703 |
KM5#,YM55,60 NO.1 |
1 | ||
| 82673-95703 |
YM55,60 NO.1 |
1 | ||
| 82673-95703 |
KM5#,YM55,60 NO.1 |
1 | ||
| 82707 - SUPPORT SUB-ASSY, WIRING HARNESS | ||||
| 82701-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-95703 |
CM60..GUT,TS;CM5#,65,KM5#,YM55,6# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-95712 |
CM60..GUT,TS;CM5#,65,KM5#,YM55,6# |
1 | ||
| 82822 - BRACKET,CONNECTOR BLOCK | ||||
| 82822-95701 |
KM5#,YM55,60 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12100 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| Common parts | ||||
| 82817-95708 | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 91611-60816 | ||||
| 91626-40616 | ||||
| 91626-40818 | ||||
| 91631-40616 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 91656-40818 | ||||
| 93385-15010 | ||||

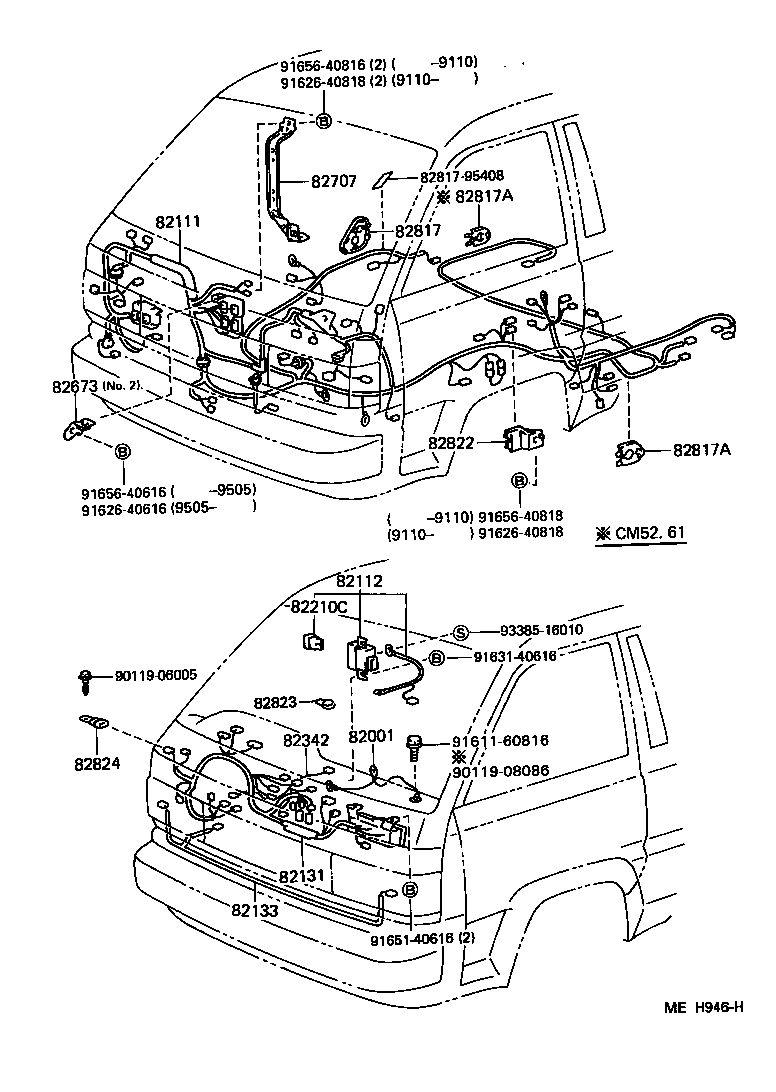

ILLUST NO. 1 OF 4(8610- )CM5#,6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07322 |
YM55,6# |
1 | ||
| 90980-07278 |
YM55,60 |
1 | ||
| 90980-07286 |
CM5#,6# |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-95G31 |
YM60 ｵﾙﾀﾈｰﾀ 12V 45A |
1 | ||
| 82111-95G31 |
YM60 |
1 | ||
| 82115-95778 |
YM60..DX |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-95708 |
CM5#,6# ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 82112-95709 |
YM6#;YM55..4HC,5H;YM55..SJL..4H |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-95757 |
YM55,60 ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 82131-95757 |
YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82131-95758 |
YM55,60..DX |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
CM5#,6# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CM5#,6#,KM5#,YM55,60 40A,ﾒｽ端子,緑,40A |
1 | ||
| 90982-08188 |
CM5#,6#,KM5#,YM55,60 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A |
1 | ||
| 90982-08202 |
CM5#,6#,YM55,60 60A,ｵｽ端子,黄,60A |
1 | ||
| 90982-08202 |
KM50..IV;CM5#,6#,YM55,60 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08202 |
CM5#,6#,KM5#,YM55,6# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08203 |
CM5#,6# 80A,ｵｽ端子,黒,80A |
1 | ||
| 90982-08228 |
CM5#,6#,KM5#,YM55,6# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08188 |
CM5#,6#,KM5#,YM55,6# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08203 |
CM5#,6#,KM5#,YM55,6# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08189 |
CM5#,6#,KM5#,YM55,6# 40A,ﾒｽ端子,緑 |
1 | ||
| 82342 - WIRE, CLOCK | ||||
| 82304-95701 |
CM5#,6#,KM5#,YM55,60..DX |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-95703 |
KM5#,YM55,60 NO.1 |
1 | ||
| 82673-95703 |
YM55,60 NO.1 |
1 | ||
| 82673-95703 |
KM5#,YM55,60 NO.1 |
1 | ||
| 82707 - SUPPORT SUB-ASSY, WIRING HARNESS | ||||
| 82701-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-95703 |
CM60..GUT,TS;CM5#,65,KM5#,YM55,6# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-95712 |
CM60..GUT,TS;CM5#,65,KM5#,YM55,6# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-95712 |
CM60..GUT,TS;CM5#,65,KM5#,YM55,6# |
1 | ||
| 82822 - BRACKET,CONNECTOR BLOCK | ||||
| 82822-95701 |
KM5#,YM55,60 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12100 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| Common parts | ||||
| 82817-95408 | ||||
| 90119-06005 | ||||
| 90119-08086 | ||||
| 91611-60816 | ||||
| 91626-40616 | ||||
| 91626-40818 | ||||
| 91631-40616 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 91656-40818 | ||||
| 93385-16010 | ||||
ILLUST NO. 2 OF 4(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-95788 |
CM51,60,KM5#,YM60..JL ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82164-95719 |
CM50,51,60,KM5#,YM60..3SO |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-95788 |
CM51,60,KM5#,YM60..JL ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82164-95719 |
CM50,51,60,KM5#,YM60..3SO |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-95706 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-95706 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08103 | ||||
| 90119-08827 | ||||

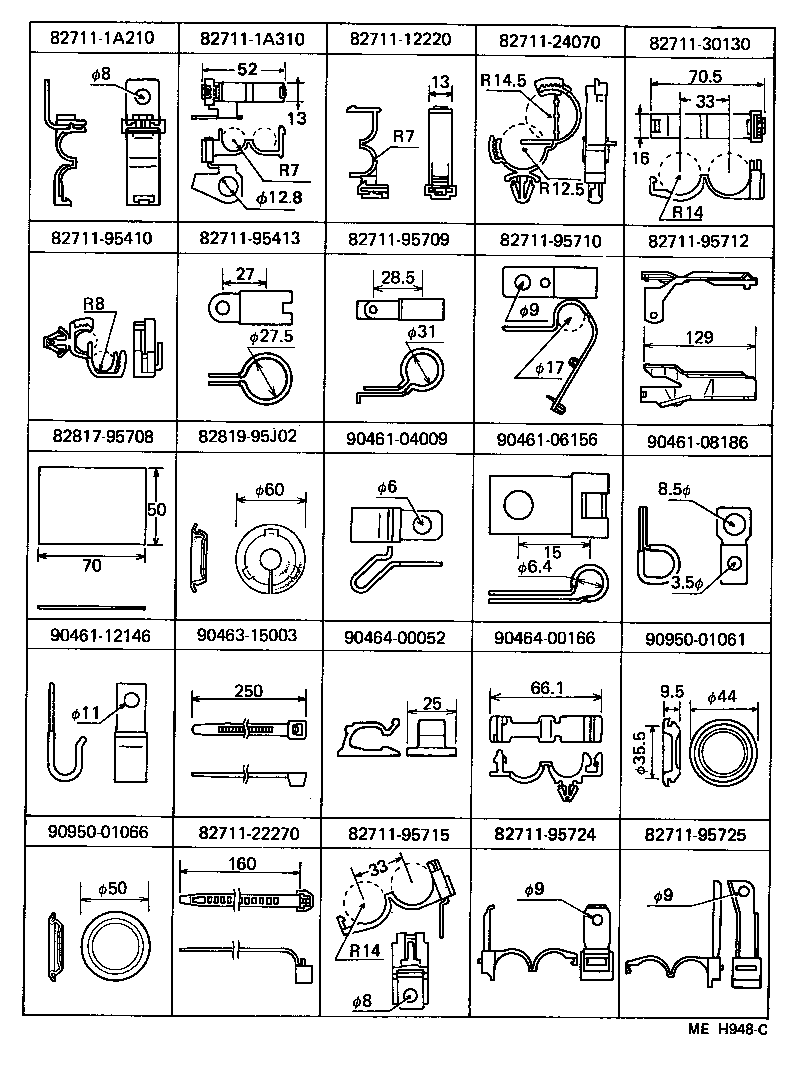

ILLUST NO. 4 OF 4(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12220 | ||||
| 82711-1A210 | ||||
| 82711-1A310 | ||||
| 82711-22270 | ||||
| 82711-24070 | ||||
| 82711-30130 | ||||
| 82711-95410 | ||||
| 82711-95413 | ||||
| 82711-95709 | ||||
| 82711-95710 | ||||
| 82711-95712 | ||||
| 82711-95715 | ||||
| 82711-95724 | ||||
| 82711-95725 | ||||
| 82817-95708 | ||||
| 82819-95J02 | ||||
| 90461-04009 | ||||
| 90461-06156 | ||||
| 90461-08186 | ||||
| 90461-12146 | ||||
| 90463-15003 | ||||
| 90464-00052 | ||||
| 90464-00166 | ||||
| 90950-01061 | ||||
| 90950-01066 | ||||

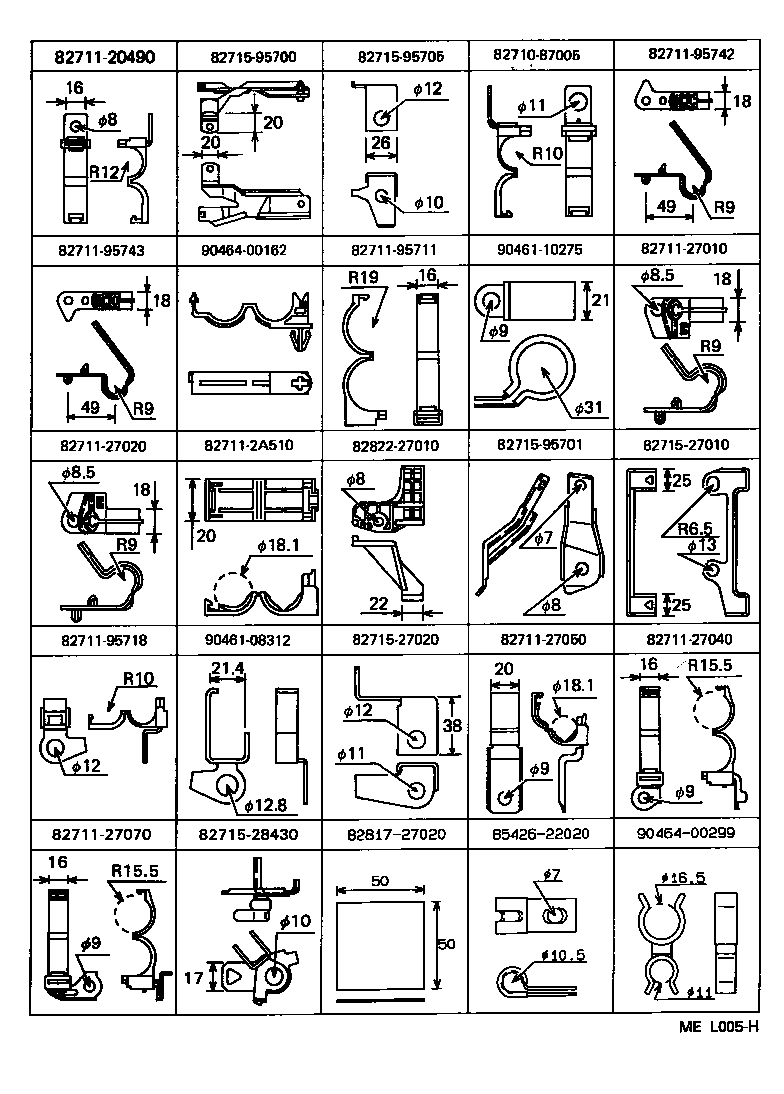

ILLUST NO. 4 OF 4(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-87005 | ||||
| 82711-20490 | ||||
| 82711-27010 | ||||
| 82711-27020 | ||||
| 82711-27040 | ||||
| 82711-27050 | ||||
| 82711-27070 | ||||
| 82711-2A510 | ||||
| 82711-95711 | ||||
| 82711-95718 | ||||
| 82711-95742 | ||||
| 82711-95743 | ||||
| 82715-27010 | ||||
| 82715-27020 | ||||
| 82715-28430 | ||||
| 82715-95700 | ||||
| 82715-95701 | ||||
| 82715-95705 | ||||
| 82817-27020 | ||||
| 82822-27010 | ||||
| 85426-22020 | ||||
| 90461-08312 | ||||
| 90461-10275 | ||||
| 90464-00162 | ||||
| 90464-00299 | ||||

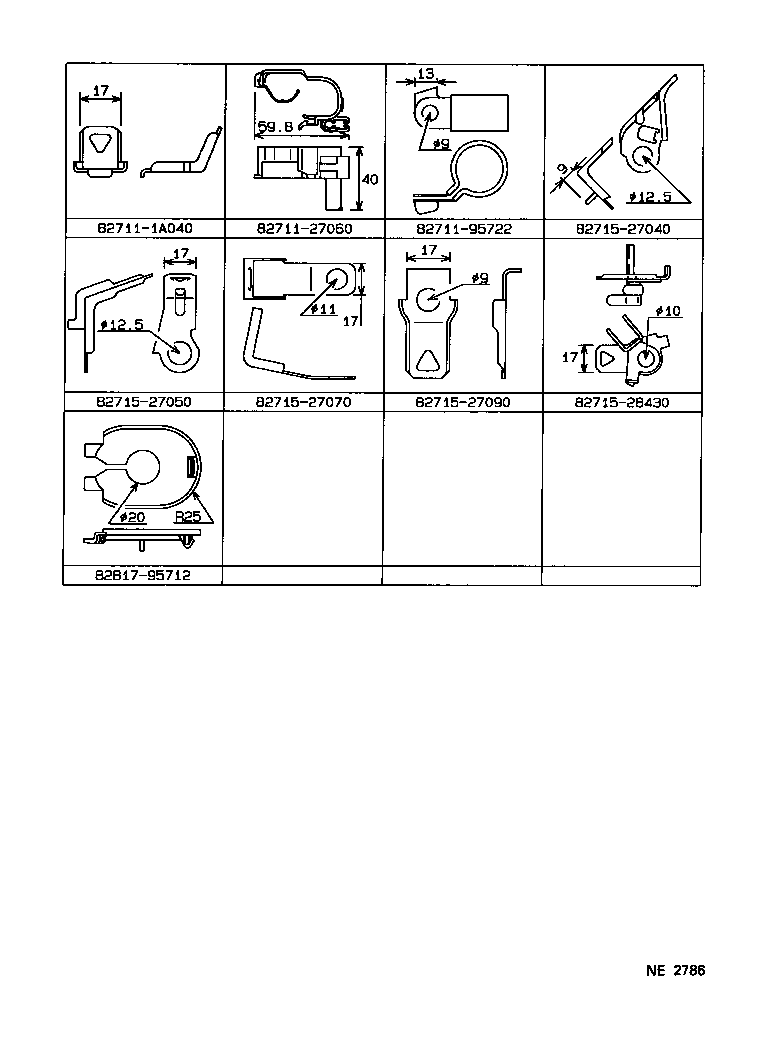

ILLUST NO. 4 OF 4(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A040 | ||||
| 82711-27060 | ||||
| 82711-95722 | ||||
| 82715-27040 | ||||
| 82715-27050 | ||||
| 82715-27070 | ||||
| 82715-27090 | ||||
| 82715-28430 | ||||
| 82817-95712 | ||||
