YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )

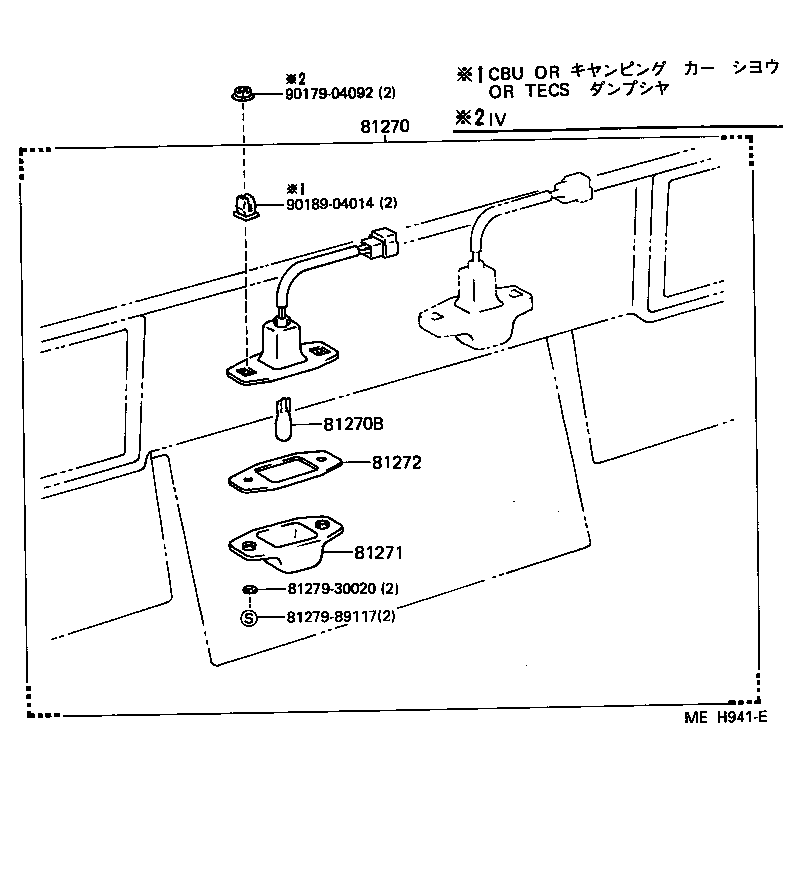

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 8127930020 8127989117 9017904092 9018904014
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-29395

CM5#,6#,KM5#,YM55,6#

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

CM5#,6#,KM5#,YM55,6#

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-89110

CM5#,6#,KM5#,YM55,6#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-89110

CM5#,6#,KM5#,YM55,6#

 2
Common parts
81279-30020
81279-89117
90179-04092
90189-04014
