YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )

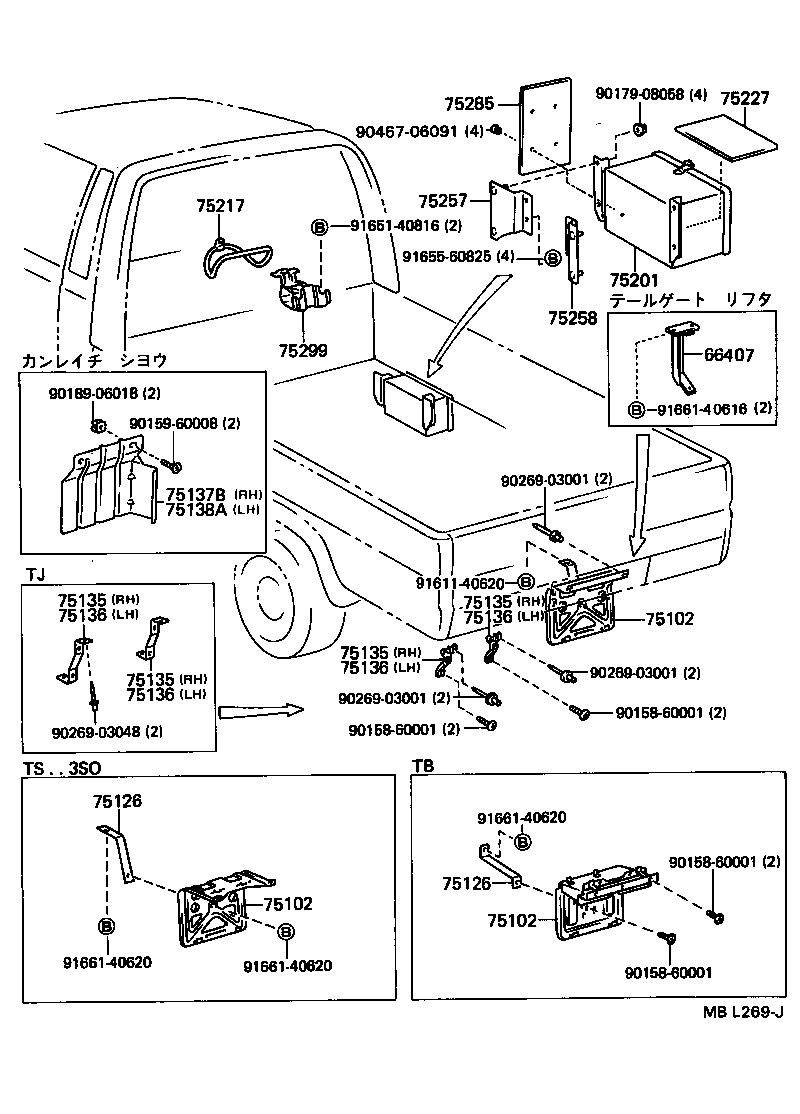

Click highlighted areas on diagram

diagram 66407 75102 75102 75102 75126 75126 75135 75135 75135 75135 75136 75136 75136 75136 75137B 75138A 75201 75217 75227 75257 75258 75285 75299 9015860001 9015860001 9015860001 9015860001 9015960008 9017908058 9018906018 9026903001 9026903001 9026903001 9026903048 9046706091 9161140620 9165140816 9165560825 9166140616 9166140620 9166140620 9166140620
Part # Description Qty Price
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75121-95701

CM6#,YM60..3SO

 1
66490-95701

CM55,6#,KM50,YM55..TB

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75121-95701

CM6#,YM60..3SO

 1
66490-95701

CM55,6#,KM50,YM55..TB

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75121-95701

CM6#,YM60..3SO

 1
66490-95701

CM55,6#,KM50,YM55..TB

 1
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
66493-95704

CM6#,YM60..3SO

 1
66493-95712

CM51,60,KM51,YM60..JL..MTM..IV

TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ

 1
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
66493-95704

CM6#,YM60..3SO

 1
66493-95712

CM51,60,KM51,YM60..JL..MTM..IV

TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95700

CM5#,6#,KM5#,YM55,60..3SO

 2
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95700

CM5#,6#,KM5#,YM55,60..3SO

 2
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95700

CM5#,6#,KM5#,YM55,60..3SO

 2
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95700

CM5#,6#,KM5#,YM55,60..3SO

 2
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95700

CM5#,6#,KM5#,YM55,60..3SO

 2
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95700

CM5#,6#,KM5#,YM55,60..3SO

 2
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95700

CM5#,6#,KM5#,YM55,60..3SO

 2
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95700

CM5#,6#,KM5#,YM55,60..3SO

 2
75217 - BAND, TOOL BAG
58705-95A01

CM5#,6#,KM5#,YM55,60

 1
75299 - BASE, JACK HOLDER
75299-95702

CM5#,6#,KM5#,YM55,6#

 1
Common parts
90158-60001
90159-60008
90179-08058
90189-06018
90269-03001
90269-03048
90467-06091
91611-40620
91651-40816
91655-60825
91661-40616
91661-40620
