YM60-TBJDS3 (1986)
Toyota Lite/Townace Truck

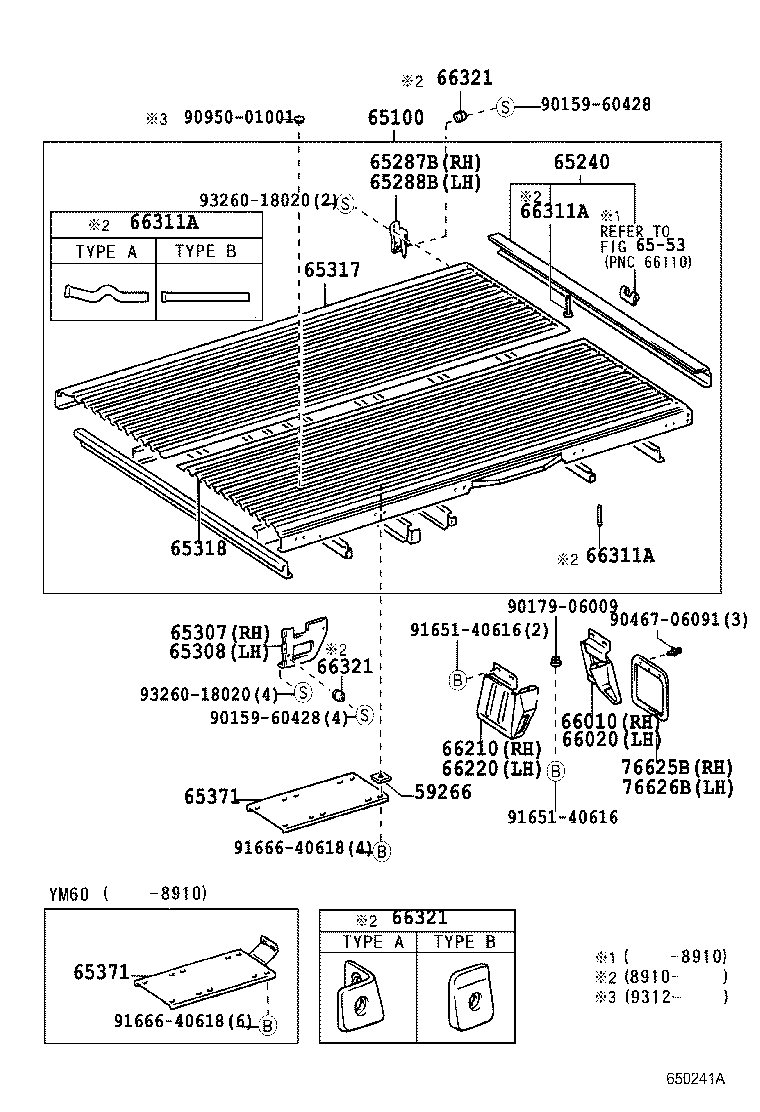

(8610- )TS..3SO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 59266 - SEAL, ENGINE SERVICE COVER, NO.2 | ||||
| 59266-95700 |
YM55..CBU;YM60..3SO |
4 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-95719 |
CM60,YM60..3SO |
1 | ||
| 65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL | ||||
| 65240-95706 |
CM50,51,60,KM5#,YM60..TS..3SO |
1 | ||
| 65240-95707 |
CM51..JL..5H..IV;CM60,KM51,YM60..JL..TS;KM51..SJL..TS..3SO..CBU;CM5#,61,65,KM50,YM55,65..TS..3SO..CBU |
1 | ||
| 65307 - BRACKET SUB-ASSY, GUAD FRAME, RH | ||||
| 66411-95704 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ |
1 | ||
| 66411-95701 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 65308 - BRACKET SUB-ASSY, GUAD FRAME, LH | ||||
| 66412-95701 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66412-95704 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ |
1 | ||
| 65317 - PANEL, FLOOR SIDE, RH | ||||
| 65317-95706 |
CM50,51,60,KM5#,YM60..TS..3SO |
1 | ||
| 65317-95707 |
CM51..JL..5H..IV;CM60,KM51,YM60..JL..TS;KM51..SJL..TS..3SO..CBU;CM51,52,61,KM50..TS..3SO..CBU |
1 | ||
| 65318 - PANEL, FLOOR SIDE, LH | ||||
| 65318-95706 |
CM50,51,60,KM5#,YM60..TS..3SO |
1 | ||
| 65318-95707 |
CM51..JL..5H..IV;CM60,KM51,YM60..JL..TS;KM51..SJL..TS..3SO..CBU;CM51,52,61,KM50..TS..3SO..CBU |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65039-95700 |
YM60..3SO |
1 | ||
| 65371-95701 |
YM55..CBU;YM60..3SO |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65039-95700 |
YM60..3SO |
1 | ||
| 65371-95701 |
YM55..CBU;YM60..3SO |
1 | ||
| 66010 - FENDER ASSY, REAR BODY, REAR RH | ||||
| 66210-95707 |
CM50,51,60,KM5#,YM60..TS..3SO |
1 | ||
| 66210-95711 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ |
1 | ||
| 66020 - FENDER ASSY, REAR BODY, REAR LH | ||||
| 66220-95711 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ |
1 | ||
| 66220-95707 |
CM50,51,60,KM5#,YM60..TS..3SO |
1 | ||
| 66210 - FENDER ASSY, REAR BODY, FRONT RH | ||||
| 66010-95708 |
CM50,51,60,KM5#,YM60..TS..3SO |
1 | ||
| 66010-95713 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ |
1 | ||
| 66220 - FENDER ASSY, REAR BODY, FRONT LH | ||||
| 66020-95708 |
CM50,51,60,KM5#,YM60..TS..3SO |
1 | ||
| 66020-95713 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ |
1 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95701 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
2 | ||
| 66311-95706 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ B |
2 | ||
| 66311-95705 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ A |
2 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95701 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
2 | ||
| 66311-95706 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ B |
2 | ||
| 66311-95705 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ A |
2 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95701 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
2 | ||
| 66311-95706 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ B |
2 | ||
| 66311-95705 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ A |
2 | ||
| 66321 - BUMPER, GATE RUBBER | ||||
| 66321-95701 |
CM5#,6#,KM5#,YM55,60..3SO SIDE |
4 | ||
| 66303-87403 |
CM5#,6#,KM5#,YM55,60..3SO REAR |
2 | ||
| 66321-95702 |
KM51,YM60..JL..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ A |
2 | ||
| 66322-95700 |
KM51,YM60..JL..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ B |
2 | ||
| 66321 - BUMPER, GATE RUBBER | ||||
| 66321-95701 |
CM5#,6#,KM5#,YM55,60..3SO SIDE |
4 | ||
| 66303-87403 |
CM5#,6#,KM5#,YM55,60..3SO REAR |
2 | ||
| 66321-95702 |
KM51,YM60..JL..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ A |
2 | ||
| 66322-95700 |
KM51,YM60..JL..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ B |
2 | ||
| 66321 - BUMPER, GATE RUBBER | ||||
| 66321-95701 |
CM5#,6#,KM5#,YM55,60..3SO SIDE |
4 | ||
| 66303-87403 |
CM5#,6#,KM5#,YM55,60..3SO REAR |
2 | ||
| 66321-95702 |
KM51,YM60..JL..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ A |
2 | ||
| 66322-95700 |
KM51,YM60..JL..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ B |
2 | ||
| 76625B - MUDGUARD, REAR BODY, RH | ||||
| 76625-95709 |
CM5#,6#,KM5#,YM55,60..3SO LITE ACE |
1 | ||
| 76625-95710 |
CM5#,6#,KM5#,YM55,60..3SO TOWN ACE |
1 | ||
| 76626B - MUDGUARD, REAR BODY, LH | ||||
| 76625-95709 |
CM5#,6#,KM5#,YM55,60..3SO LITE ACE |
1 | ||
| 76625-95710 |
CM5#,6#,KM5#,YM55,60..3SO TOWN ACE |
1 | ||
| Common parts | ||||
| 90159-60428 | ||||
| 90179-06009 | ||||
| 90467-06091 | ||||
| 90950-01001 | ||||
| 91651-40616 | ||||
| 91666-40618 | ||||
| 93260-18020 | ||||
| Linked diagrams | ||||
| 6553 | ||||

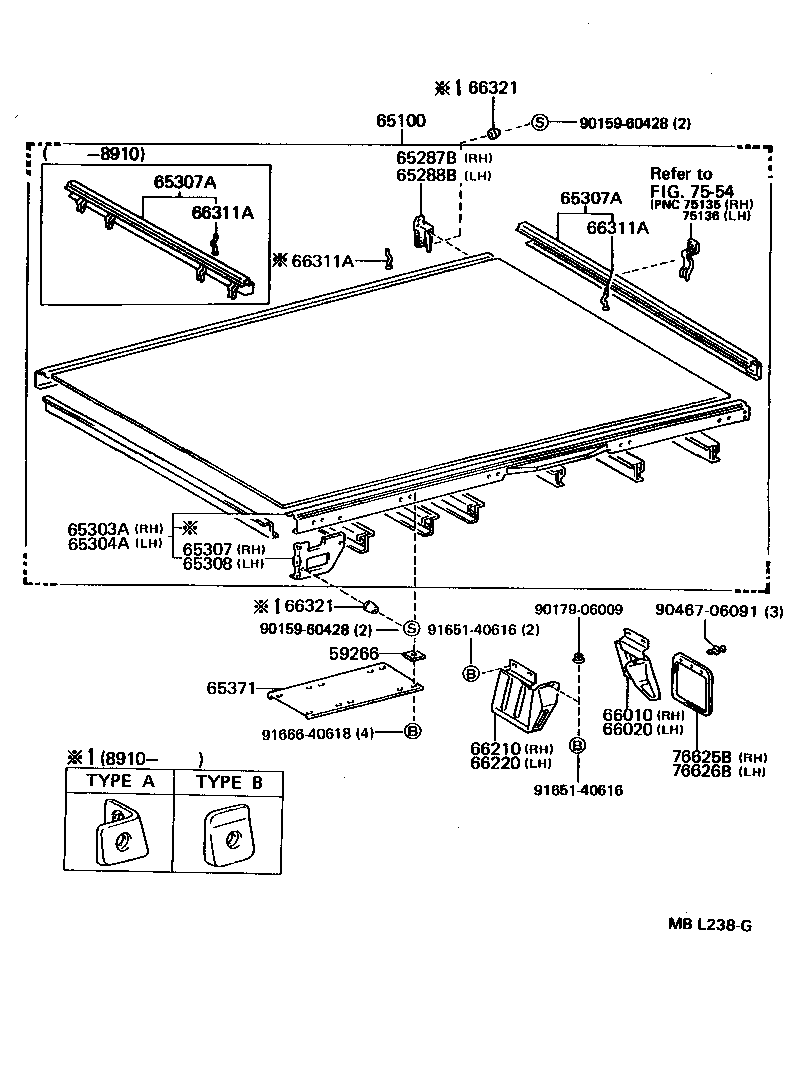

(8610- )TB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 59266 - SEAL, ENGINE SERVICE COVER, NO.2 | ||||
| 59266-95700 |
YM55..CBU;YM60..3SO |
4 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-95719 |
CM60,YM60..3SO |
1 | ||
| 65307 - BRACKET SUB-ASSY, GUAD FRAME, RH | ||||
| 66411-95704 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ |
1 | ||
| 66411-95701 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-95700 |
CM55,6#,KM50,YM55..TB |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-95700 |
CM55,6#,KM50,YM55..TB |
1 | ||
| 65308 - BRACKET SUB-ASSY, GUAD FRAME, LH | ||||
| 66412-95701 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66412-95704 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65039-95700 |
YM60..3SO |
1 | ||
| 65371-95701 |
YM55..CBU;YM60..3SO |
1 | ||
| 66010 - FENDER ASSY, REAR BODY, REAR RH | ||||
| 66210-95707 |
CM50,51,60,KM5#,YM60..TS..3SO |
1 | ||
| 66210-95711 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ |
1 | ||
| 66020 - FENDER ASSY, REAR BODY, REAR LH | ||||
| 66220-95711 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ |
1 | ||
| 66220-95707 |
CM50,51,60,KM5#,YM60..TS..3SO |
1 | ||
| 66210 - FENDER ASSY, REAR BODY, FRONT RH | ||||
| 66010-95708 |
CM50,51,60,KM5#,YM60..TS..3SO |
1 | ||
| 66010-95713 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ |
1 | ||
| 66220 - FENDER ASSY, REAR BODY, FRONT LH | ||||
| 66020-95708 |
CM50,51,60,KM5#,YM60..TS..3SO |
1 | ||
| 66020-95713 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ |
1 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95701 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
2 | ||
| 66311-95706 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ B |
2 | ||
| 66311-95705 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ A |
2 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95701 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
2 | ||
| 66311-95706 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ B |
2 | ||
| 66311-95705 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ A |
2 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95701 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
2 | ||
| 66311-95706 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ B |
2 | ||
| 66311-95705 |
CM51,60,KM51,YM60..JL..MTM..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ A |
2 | ||
| 66321 - BUMPER, GATE RUBBER | ||||
| 66321-95701 |
CM5#,6#,KM5#,YM55,60..3SO SIDE |
4 | ||
| 66303-87403 |
CM5#,6#,KM5#,YM55,60..3SO REAR |
2 | ||
| 66321-95702 |
KM51,YM60..JL..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ A |
2 | ||
| 66322-95700 |
KM51,YM60..JL..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ B |
2 | ||
| 66321 - BUMPER, GATE RUBBER | ||||
| 66321-95701 |
CM5#,6#,KM5#,YM55,60..3SO SIDE |
4 | ||
| 66303-87403 |
CM5#,6#,KM5#,YM55,60..3SO REAR |
2 | ||
| 66321-95702 |
KM51,YM60..JL..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ A |
2 | ||
| 66322-95700 |
KM51,YM60..JL..IV TECS ﾕｱﾂｼｷ ﾀﾞﾝﾌﾟｼﾔ,ﾀｲﾌﾟ B |
2 | ||
| 76625B - MUDGUARD, REAR BODY, RH | ||||
| 76625-95709 |
CM5#,6#,KM5#,YM55,60..3SO LITE ACE |
1 | ||
| 76625-95710 |
CM5#,6#,KM5#,YM55,60..3SO TOWN ACE |
1 | ||
| 76626B - MUDGUARD, REAR BODY, LH | ||||
| 76625-95709 |
CM5#,6#,KM5#,YM55,60..3SO LITE ACE |
1 | ||
| 76625-95710 |
CM5#,6#,KM5#,YM55,60..3SO TOWN ACE |
1 | ||
| Common parts | ||||
| 90159-60428 | ||||
| 90179-06009 | ||||
| 90467-06091 | ||||
| 91651-40616 | ||||
| 91666-40618 | ||||
| Linked diagrams | ||||
| 7554 | ||||

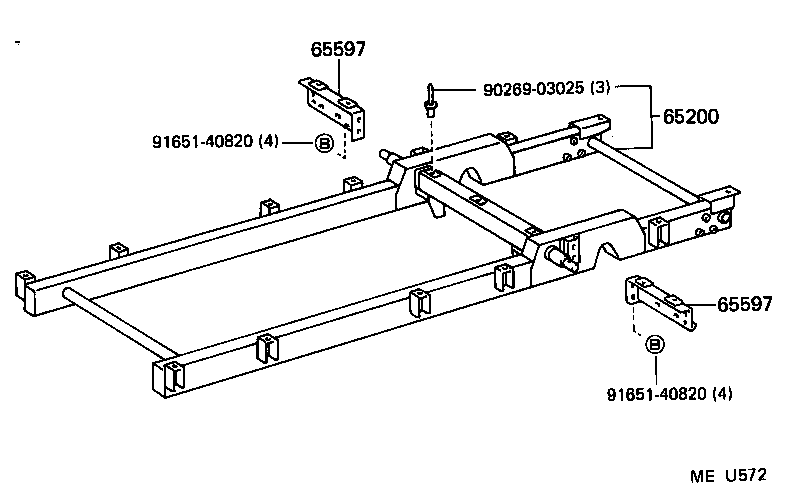

(8912- )CM51,60,KM51,YM60..JL..MTM..IV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65200 - FRAME ASSY, FLOOR | ||||
| 65200-95708 |
CM51,60,KM51,YM60..JL..MTM..IV |
1 | ||
| 65597 - BRACE, SIDE PANEL FRAME | ||||
| 65598-95700 |
CM51,60,KM51,YM60..JL..MTM..IV 左側 |
1 | ||
| 65597-95702 |
CM51,60,KM51,YM60..JL..MTM..IV 右側 |
1 | ||
| 65597 - BRACE, SIDE PANEL FRAME | ||||
| 65598-95700 |
CM51,60,KM51,YM60..JL..MTM..IV 左側 |
1 | ||
| 65597-95702 |
CM51,60,KM51,YM60..JL..MTM..IV 右側 |
1 | ||
| Common parts | ||||
| 90269-03025 | ||||
| 91651-40820 | ||||
