YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )

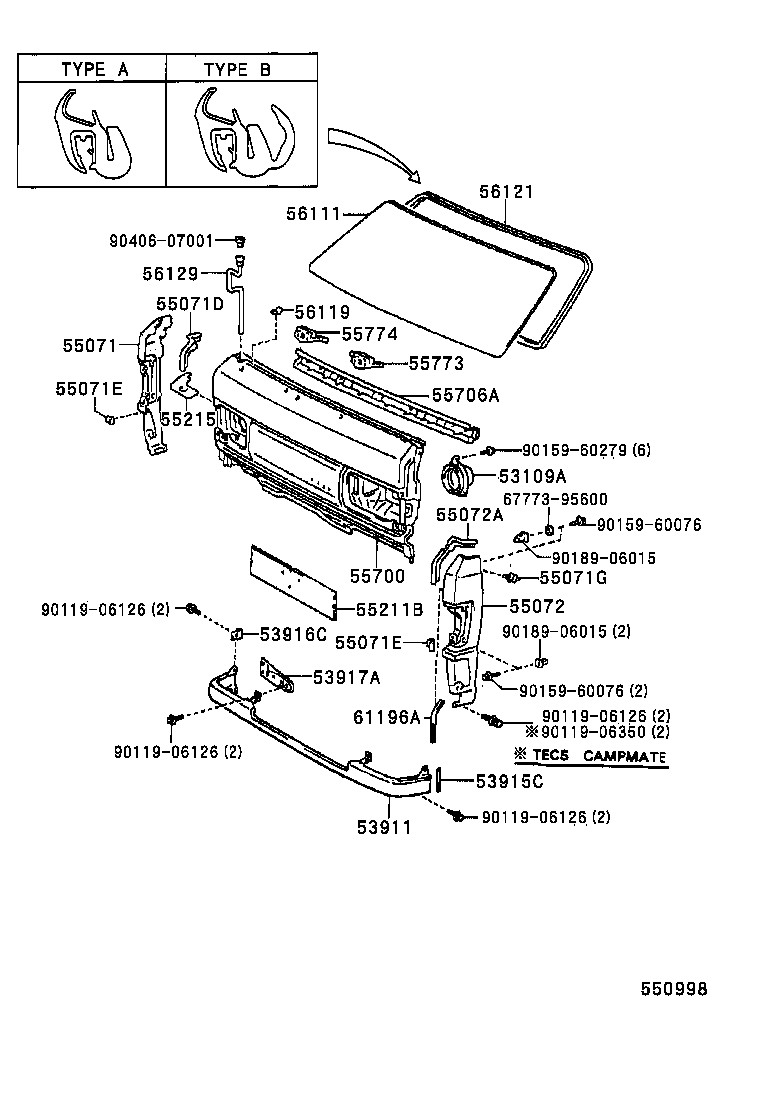

Click highlighted areas on diagram

diagram 53109A 53911 53915C 53916C 53917A 55071 55071D 55071E 55071E 55071G 55072 55072A 55211B 55215 55700 55706A 55773 55774 56111 56119 56121 56129 61196A 6777395600 9011906126 9011906126 9011906126 9011906126 9011906350 9015960076 9015960076 9015960279 9018906015 9018906015 9040607001
Part # Description Qty Price
53109A - COVER SUB-ASSY, HEADLAMP SERVICE HOLE
53109-95700

CM5#,6#,KM5#,YM55,60

 1
53911 - PANEL, FRONT VALANCE
53901-95703

CM5#,6#,KM5#,YM55,6#

 1
53915C - PROTECTOR, LOWER SHROUD
53915-95704

CM5#,6#,KM5#,YM55,6#

 2
53916C - PROTECTOR, LOWER SHROUD, NO.2
53916-95702

CM5#,6#,KM5#,YM55,6#

 2
53917A - SUPPORT, FRONT VALANCE PANEL, NO.3
53917-95704

CM5#,6#,KM5#,YM55,6#

 1
55071 - PANEL SUB-ASSY, FRONT SIDE, RH
53801-95706

CM5#,6#,KM5#,YM55,6#

 1
55071D - PROTECTOR, FRONT SIDE PANEL, NO.2
53824-95703

CM5#,6#,KM5#,YM55,60

LH

 1
53823-95703

CM5#,6#,KM5#,YM55,60

RH

 1
55071E - PROTECTOR, FRONT SIDE PANEL, NO.3
53828-95702

CM5#,6#,KM5#,YM55,60

左側

 1
53828-95702

CM5#,6#,KM5#,YM55,60

 2
55071E - PROTECTOR, FRONT SIDE PANEL, NO.3
53828-95702

CM5#,6#,KM5#,YM55,60

左側

 1
53828-95702

CM5#,6#,KM5#,YM55,60

 2
55071G - RETAINER, FRONT SIDE PANEL SET
53867-95700

CM5#,6#,KM5#,YM55,60

左側

 1
53867-95700

CM5#,6#,KM5#,YM55,60

 2
55072 - PANEL SUB-ASSY, FRONT SIDE, LH
53802-95708

CM5#,6#,KM5#,YM55,60..DX

 1
55211B - SILENCER, FRONT PANEL
55211-95701

CM5#,6#,KM5#,YM55,60

 1
55211-95702

CM5#,6#,KM5#,YM55,60

 1
55215 - PAD, HEADLAMP COVER SILENCER, RH
55215-95701

CM5#,6#

 1
55700 - PANEL ASSY, FRONT
55701-95745

CM5#,6#,KM5#,YM55,60..DX

ﾗｲﾄｴ-ｽ

 1
55701-95742

CM5#,6#,KM5#,YM55,60..DX

TOWN ACE

 1
55701-95742

CM5#,6#,KM5#,YM55,60..DX

ﾀｳﾝｴ-ｽ

 1
55701-95729

CM5#,6#,KM5#,YM55,60..DX

LITE ACE

 1
55706A - REINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER
55706-95706

CM5#,6#,KM5#,YM55,6#

 1
55773 - RETAINER, WIPER SHAFT, CENTER
55773-95704

CM5#,6#,KM5#,YM55,60

 1
55774 - RETAINER, WIPER SHAFT SIDE
55774-95704

CM5#,6#,KM5#,YM55,60

 1
56111 - GLASS, WINDSHIELD
56111-95716

CM5#,6#,KM5#,YM55,60..DX

*TL,T=5.3,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ

 1
56111-95714

CM5#,6#,KM5#,YM55,60..DX

*LAM,T=5.3,*LAM,T=5.3

 1
56111-95716

CM5#,6#,KM5#,YM55,60

*TL,T=5.3,*TL,T=5.3

 1
56119 - SEAL, WINDSHIELD GLASS
56119-95700

CM5#,6#,KM5#,YM55,6#

 2
56121 - WEATHERSTRIP, WINDSHIELD
56121-95709

CM5#,6#,KM5#,YM55,6#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
56121-95708

CM5#,6#,KM5#,YM55,6#..DX

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
56129 - HOSE, WINDSHIELD DRAIN
56129-95700

CM5#,6#,KM5#,YM55,6#

 2
Common parts
67773-95600
90119-06126
90119-06350
90159-60076
90159-60279
90189-06015
90406-07001
