YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )

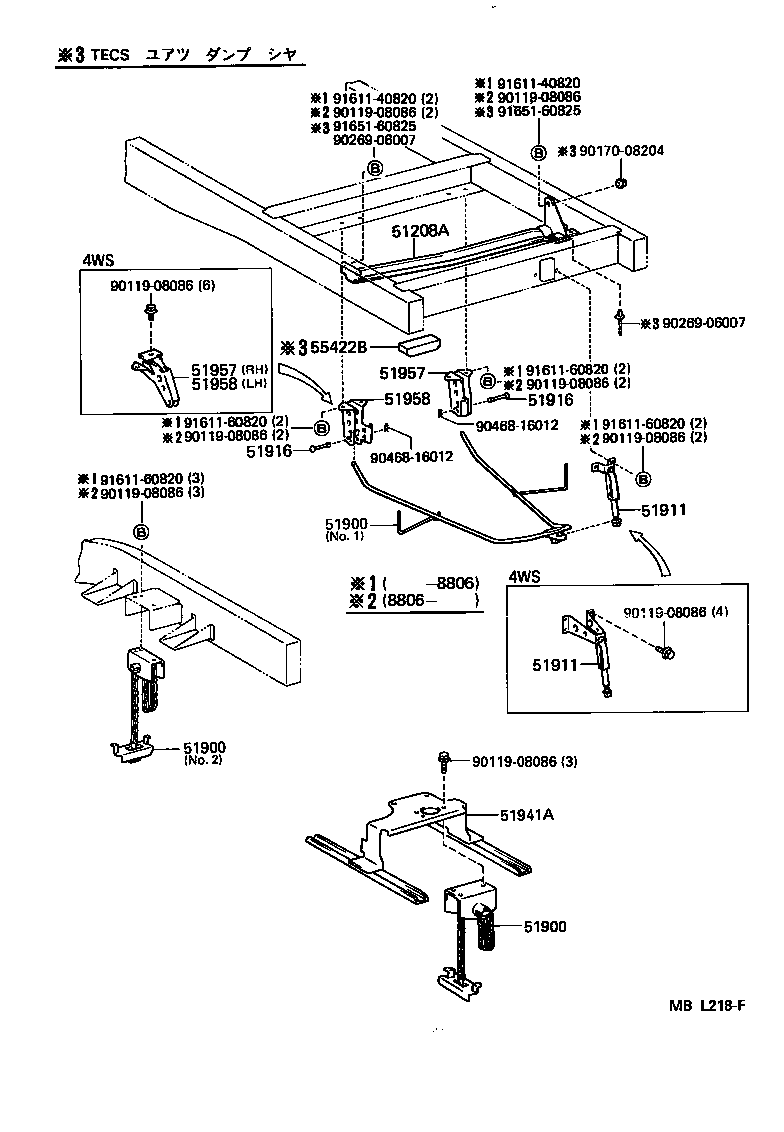

Click highlighted areas on diagram

diagram 51208A 51900 51900 51900 51911 51911 51916 51916 51941A 51957 51957 51958 51958 55422B 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9017008204 9026906007 9026906007 9046816012 9046816012 9161140820 9161140820 9161160820 9161160820 9161160820 9161160820 9165160825 9165160825
Part # Description Qty Price
51208A - MEMBER SUB-ASSY, SPARE WHEEL SET
51273-27030

CM5#,6#,KM5#,YM55,6#

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-27130

CM60,65,YM6#

NO.1

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-27130

CM60,65,YM6#

NO.1

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-27130

CM60,65,YM6#

NO.1

 1
51911 - BOLT ASSY, SPARE WHEEL MOUNTING
51910-27030

CM50,51,55,60,65,KM5#,YM55,6#

 1
51911 - BOLT ASSY, SPARE WHEEL MOUNTING
51910-27030

CM50,51,55,60,65,KM5#,YM55,6#

 1
51916 - PIN, SPARE TIRE CARRIER
51916-27020

CM5#,6#,KM5#,YM55,6#

 2
51916 - PIN, SPARE TIRE CARRIER
51916-27020

CM5#,6#,KM5#,YM55,6#

 2
51957 - BRACKET, SPARE WHEEL CARRIER HINGE, RH
51957-27020

CM50,51,55,60,65,KM5#,YM55,6#

 1
51957 - BRACKET, SPARE WHEEL CARRIER HINGE, RH
51957-27020

CM50,51,55,60,65,KM5#,YM55,6#

 1
51958 - BRACKET, SPARE WHEEL CARRIER HINGE, LH
51958-27020

CM50,51,55,60,65,KM5#,YM55,6#

 1
51958 - BRACKET, SPARE WHEEL CARRIER HINGE, LH
51958-27020

CM50,51,55,60,65,KM5#,YM55,6#

 1
55422B - PAD, FRONT BUMPER SIDE
55422-20070

CM51,60,KM51,YM60..JL..MTM..IV

 2
Common parts
90119-08086
90170-08204
90269-06007
90468-16012
91611-40820
91611-60820
91651-60825
