YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

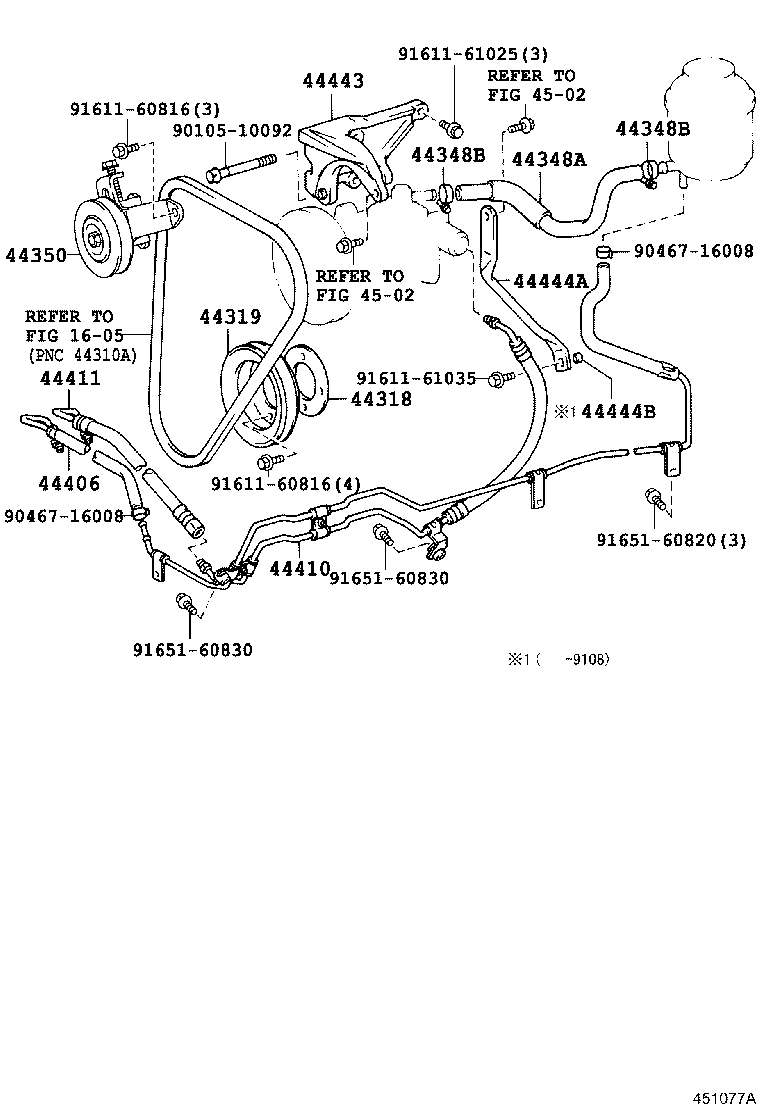

ILLUST NO. 1 OF 2(8610- )YM6# ; (8910- )YM60..IV

Click highlighted areas on diagram

ｱﾘ(ﾁﾙﾄ ﾃﾞﾂｷ)

diagram 1605 44318 44319 44348A 44348B 44348B 44350 44406 44410 44411 44443 44444A 44444B 4502 4502 9010510092 9046716008 9046716008 9161160816 9161160816 9161161025 9161161035 9165160820 9165160830 9165160830
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-28012

YM55,60

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-28013

YM55,60

 1
44319-27010

CM5#,6#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-27100

YM6#;YM55..SJL..4H

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

CM5#,6#,KM51,YM55,60

 3
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

CM5#,6#,KM51,YM55,60

 3
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-28011

YM6#;YM55..TS..5H;YM55..SJL..4H

 1
44406 - TUBE SUB-ASSY, RETURN
44406-27040

YM6#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-27090

YM6#

 1
44410-27160

YM60..IV

ｱﾘ(ﾁﾙﾄ ﾃﾞﾂｷ)

 1
44411 - HOSE, PRESSURE FEED
44411-27040

YM6#

 1
44443 - BRACKET, PUMP
44443-14030

CM5#,6#

 1
44443-28011

YM55,60

 1
44444A - STAY, PUMP, REAR NO.1
44444-27030

YM55,60

 1
44444B - COLLAR (FOR PUMP REAR STAY)
90387-12031

YM55,60

 1
Common parts
90105-10092
90467-16008
91611-60816
91611-61025
91611-61035
91651-60820
91651-60830
Linked diagrams
1605
4502

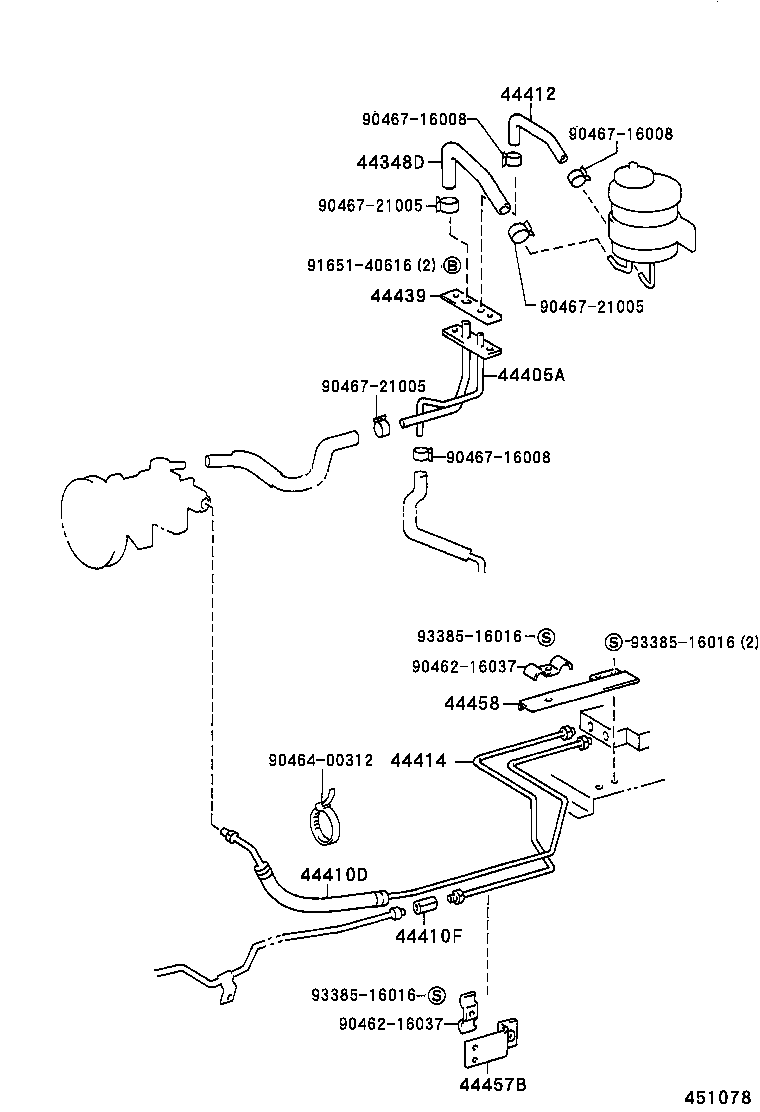

ILLUST NO. 2 OF 2(8910- )YM60..IV

Click highlighted areas on diagram

ｱﾘ(ﾁﾙﾄ ﾃﾞﾂｷ)

diagram 44348D 44405A 44410D 44410F 44412 44414 44439 44457B 44458 9046216037 9046216037 9046400312 9046716008 9046716008 9046716008 9046721005 9046721005 9046721005 9165140616 9338516016 9338516016 9338516016
Part # Description Qty Price
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-27110

CM51,60,KM51,YM60..JL..MTM..IV

ﾕｱﾂﾀﾞﾝﾌﾟ ｼﾖｳ

 1
44405A - TUBE SUB-ASSY, OIL RESERVOIR TO PUMP, NO.2
44405-95702

KM51,YM60..JL..IV

ｱﾘ(ﾁﾙﾄ ﾃﾞﾂｷ)

 1
44410D - TUBE ASSY, PRESSURE FEED, NO.2
44410-95701

YM60..IV

ｱﾘ(ﾁﾙﾄ ﾃﾞﾂｷ)

 1
44410F - WAY, 2(FOR PRESSURE FEED TUBE)
96320-11600

KM51,YM60..JL..IV

ｱﾘ(ﾁﾙﾄ ﾃﾞﾂｷ)

 1
44412 - HOSE, RETURN
44412-95700

CM51,60,KM51,YM60..JL..MTM..IV

ｱﾘ(ﾁﾙﾄ ﾃﾞﾂｷ)

 1
44414 - TUBE, PRESSURE FEED, NO.2
44414-95701

YM60..IV

ｱﾘ(ﾁﾙﾄ ﾃﾞﾂｷ)

 1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
38869-95702

KM51,YM60..JL..IV

ｱﾘ(ﾁﾙﾄ ﾃﾞﾂｷ)

 1
44458 - BRACKET, TUBE SUPPORT, NO.2
38869-95701

KM51,YM60..JL..IV

ｱﾘ(ﾁﾙﾄ ﾃﾞﾂｷ)

 1
Common parts
90462-16037
90464-00312
90467-16008
90467-21005
91651-40616
93385-16016
