YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )CM6#,YM6#

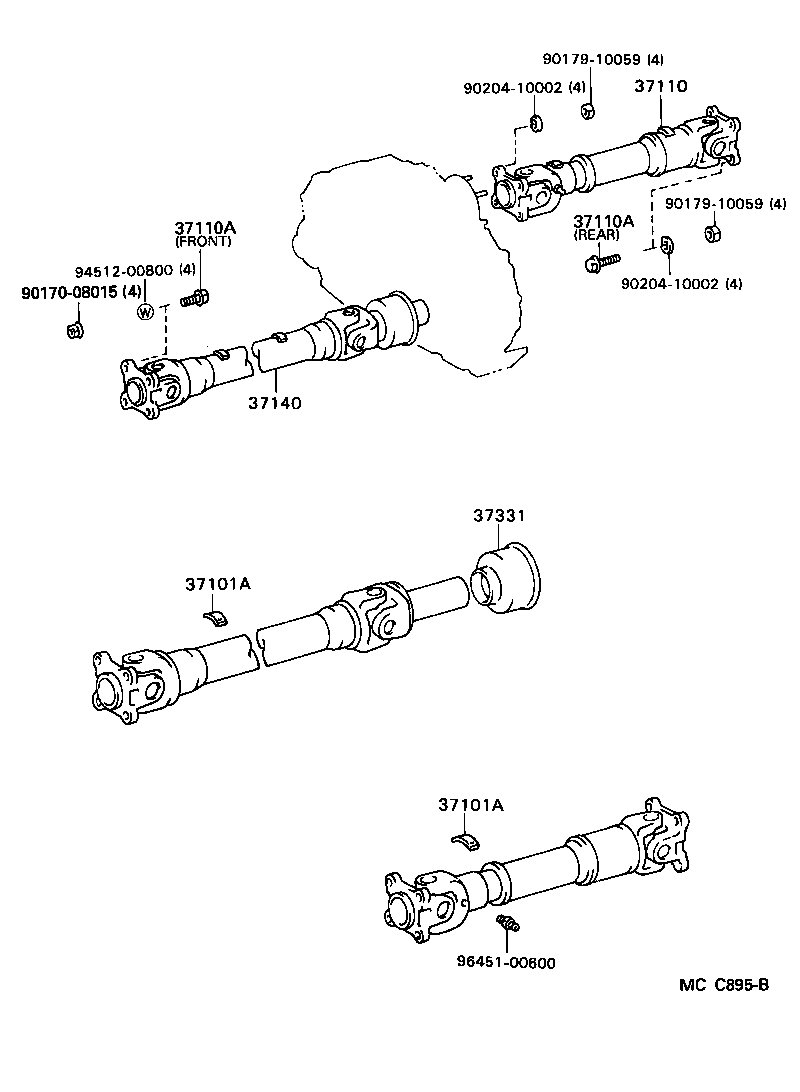

Click highlighted areas on diagram

diagram 37101A 37101A 37110 37110A 37110A 37140 37331 9017008015 9017910059 9017910059 9020410002 9020410002 9451200800 9645100600
Part # Description Qty Price
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01300

CM6#,YM60

22G,厚さ=2.0,22G,FR

 33
90937-01299

CM6#,YM60

20G,厚さ=2.0,20G,FR

 33
90937-01296

CM6#,YM60

14G,14G,FR

 33
90937-01148

CM5#,6#,KM5#,YM55,60

4G,厚さ=2.0,4G,RR,TUBE SIDE

 33
90937-01298

CM6#,YM60

18G,厚さ=2.0,18G,FR

 33
90937-01132

CM5#,6#,KM5#,YM55,60

10G,長さ=20.7,10G,RR,TUBE SIDE

 33
90937-01147

CM5#,6#,KM5#,YM55,60

2G,厚さ=2.0,2G,RR,TUBE SIDE

 33
90937-01150

CM5#,6#,KM5#,YM55,60

8G,長さ=16.6,8G,RR,TUBE SIDE

 33
90937-01149

CM5#,6#,KM5#,YM55,60

6G,長さ=12.4,6G,RR,TUBE SIDE

 33
90937-01193

CM6#,YM60

16G,厚さ=4.5,16G,RR,YOKE SIDE

 33
90937-01297

CM6#,YM60

16G,厚さ=2.0,16G,FR

 33
90937-01184

CM6#,YM60

4G,厚さ=1.6,4G,RR,YOKE SIDE

 33
90937-01152

CM5#,6#,KM5#,YM55,60

14G,長さ=29.0,14G,RR,TUBE SIDE

 33
90937-01268

CM6#,YM60

36G,長さ=23.1,厚さ=8.0,36G,RR,YOKE SIDE

 33
90937-01291

CM6#,YM60

4G,4G,FR

 33
90937-01151

CM5#,6#,KM5#,YM55,60

12G,長さ=24.9,12G,RR,TUBE SIDE

 33
90937-01294

CM6#,YM60

10G,10G,FR

 33
90937-01269

CM6#,YM60

40G,長さ=25.6,40G,RR,YOKE SIDE

 33
90937-01191

CM6#,YM60

8G,厚さ=1.6,8G,RR,YOKE SIDE

 33
90937-01271

CM6#,YM60

48G,長さ=24.6,48G,RR,YOKE SIDE

 33
90937-01292

CM6#,YM60

6G,6G,FR

 33
90937-01273

CM6#,YM60

56G,長さ=28.7,56G,RR,YOKE SIDE

 33
90937-01192

CM6#,YM60

12G,厚さ=4.5,12G,RR,YOKE SIDE

 33
90937-01272

CM6#,YM60

52G,長さ=26.7,52G,RR,YOKE SIDE

 33
90937-01302

CM6#,YM60

26G,厚さ=2.0,26G,FR

 33
90937-01301

CM6#,YM60

24G,厚さ=2.0,24G,FR

 33
90937-01194

CM6#,YM60

20G,厚さ=4.5,20G,RR,YOKE SIDE

 33
90937-01304

CM6#,YM60

30G,厚さ=2.0,30G,FR

 33
90937-01290

CM6#,YM60

2G,2G,FR

 33
90937-01295

CM6#,YM60

12G,12G,FR

 33
90937-01303

CM6#,YM60

28G,厚さ=2.0,28G,FR

 33
90937-01293

CM6#,YM60

8G,8G,FR

 33
90937-01270

CM6#,YM60

44G,長さ=22.6,44G,RR,YOKE SIDE

 33
90937-01274

CM6#,YM60

60G,長さ=28.7,60G,RR,YOKE SIDE

 33
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01300

CM6#,YM60

22G,厚さ=2.0,22G,FR

 33
90937-01299

CM6#,YM60

20G,厚さ=2.0,20G,FR

 33
90937-01296

CM6#,YM60

14G,14G,FR

 33
90937-01148

CM5#,6#,KM5#,YM55,60

4G,厚さ=2.0,4G,RR,TUBE SIDE

 33
90937-01298

CM6#,YM60

18G,厚さ=2.0,18G,FR

 33
90937-01132

CM5#,6#,KM5#,YM55,60

10G,長さ=20.7,10G,RR,TUBE SIDE

 33
90937-01147

CM5#,6#,KM5#,YM55,60

2G,厚さ=2.0,2G,RR,TUBE SIDE

 33
90937-01150

CM5#,6#,KM5#,YM55,60

8G,長さ=16.6,8G,RR,TUBE SIDE

 33
90937-01149

CM5#,6#,KM5#,YM55,60

6G,長さ=12.4,6G,RR,TUBE SIDE

 33
90937-01193

CM6#,YM60

16G,厚さ=4.5,16G,RR,YOKE SIDE

 33
90937-01297

CM6#,YM60

16G,厚さ=2.0,16G,FR

 33
90937-01184

CM6#,YM60

4G,厚さ=1.6,4G,RR,YOKE SIDE

 33
90937-01152

CM5#,6#,KM5#,YM55,60

14G,長さ=29.0,14G,RR,TUBE SIDE

 33
90937-01268

CM6#,YM60

36G,長さ=23.1,厚さ=8.0,36G,RR,YOKE SIDE

 33
90937-01291

CM6#,YM60

4G,4G,FR

 33
90937-01151

CM5#,6#,KM5#,YM55,60

12G,長さ=24.9,12G,RR,TUBE SIDE

 33
90937-01294

CM6#,YM60

10G,10G,FR

 33
90937-01269

CM6#,YM60

40G,長さ=25.6,40G,RR,YOKE SIDE

 33
90937-01191

CM6#,YM60

8G,厚さ=1.6,8G,RR,YOKE SIDE

 33
90937-01271

CM6#,YM60

48G,長さ=24.6,48G,RR,YOKE SIDE

 33
90937-01292

CM6#,YM60

6G,6G,FR

 33
90937-01273

CM6#,YM60

56G,長さ=28.7,56G,RR,YOKE SIDE

 33
90937-01192

CM6#,YM60

12G,厚さ=4.5,12G,RR,YOKE SIDE

 33
90937-01272

CM6#,YM60

52G,長さ=26.7,52G,RR,YOKE SIDE

 33
90937-01302

CM6#,YM60

26G,厚さ=2.0,26G,FR

 33
90937-01301

CM6#,YM60

24G,厚さ=2.0,24G,FR

 33
90937-01194

CM6#,YM60

20G,厚さ=4.5,20G,RR,YOKE SIDE

 33
90937-01304

CM6#,YM60

30G,厚さ=2.0,30G,FR

 33
90937-01290

CM6#,YM60

2G,2G,FR

 33
90937-01295

CM6#,YM60

12G,12G,FR

 33
90937-01303

CM6#,YM60

28G,厚さ=2.0,28G,FR

 33
90937-01293

CM6#,YM60

8G,8G,FR

 33
90937-01270

CM6#,YM60

44G,長さ=22.6,44G,RR,YOKE SIDE

 33
90937-01274

CM6#,YM60

60G,長さ=28.7,60G,RR,YOKE SIDE

 33
37110 - SHAFT ASSY, PROPELLER
37110-27310

YM60

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

CM6#,YM6#

*10−1.00PX27−13,ﾘﾔ

 4
90101-08082

CM6#,YM6#

*8−1.25PX25−12,ﾌﾛﾝﾄ

 4
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

CM6#,YM6#

*10−1.00PX27−13,ﾘﾔ

 4
90101-08082

CM6#,YM6#

*8−1.25PX25−12,ﾌﾛﾝﾄ

 4
37140 - SHAFT ASSY, PROPELLER, FRONT
37140-27010

YM60

 1
37140-27011

YM6#

 1
37331 - COVER, SLIDING SHAFT DUST
37331-28010

CM6#,YM60

 1
Common parts
90170-08015
90179-10059
90204-10002
94512-00800
96451-00600
