YM60-TBJDS3 (1986)
Toyota Lite/Townace Truck
Production
Oct 1986
-
Aug 1990
Engine
2Y
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

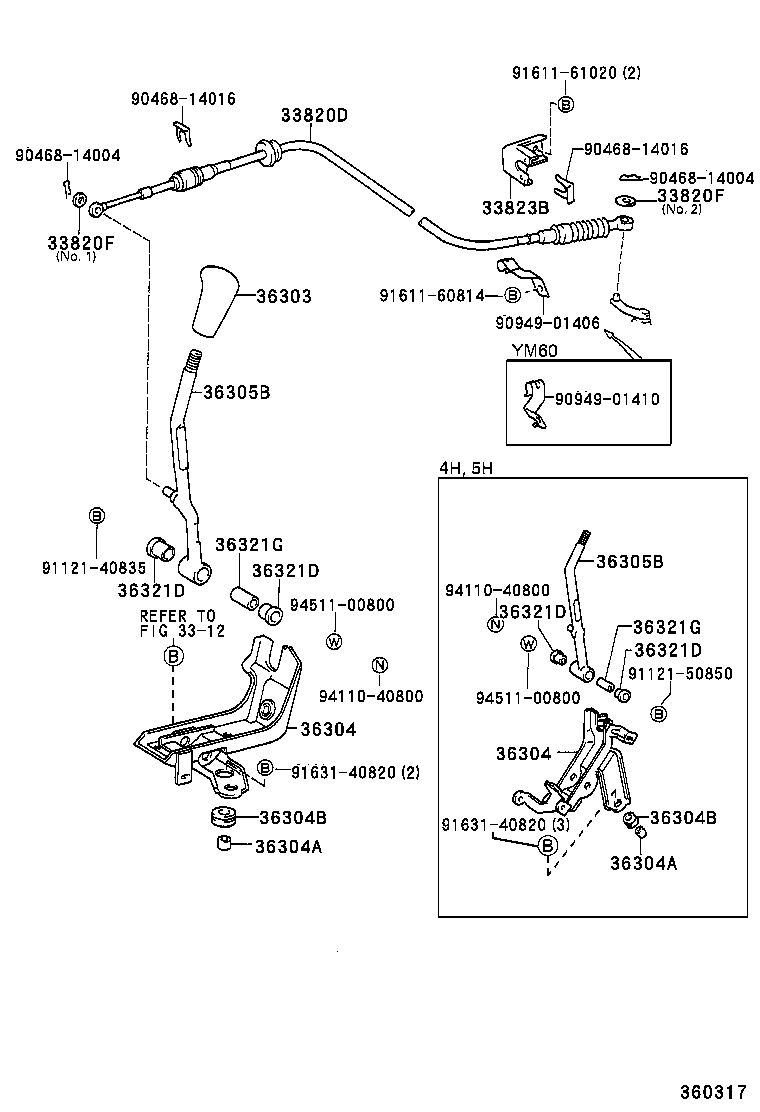

ILLUST NO. 1 OF 2(8610- )CM6#,YM6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820D - CABLE ASSY, TRANSFER CONTROL | ||||
| 33820-27070 |
YM60..DX |
1 | ||
| 33820-27071 |
YM6#..DX |
1 | ||
| 33823B - BRACKET, TRANSFER CONTROL CABLE | ||||
| 33823-28100 |
CM6#,YM6# |
1 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-2701004 |
CM6#,YM60..DX DEEP BLUE,TRIM8# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 33506-27050 |
CM6#,YM6#..DX |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 33506-27050 |
CM6#,YM6#..DX |
1 | ||
| 36304A - COLLER (FOR TRANSFER CONTROL SHIFT LEVER RETAINER) | ||||
| 90387-09011 |
CM6#,YM60 |
3 | ||
| 36304A - COLLER (FOR TRANSFER CONTROL SHIFT LEVER RETAINER) | ||||
| 90387-09011 |
CM6#,YM60 |
3 | ||
| 36304B - GROMMET (FOR TRANSFER CONTROL SHIFT LEVER RETAINER) | ||||
| 90480-13012 |
CM6#,YM60 |
3 | ||
| 36304B - GROMMET (FOR TRANSFER CONTROL SHIFT LEVER RETAINER) | ||||
| 90480-13012 |
CM6#,YM60 |
3 | ||
| 36305B - LEVER SUB-ASSY, TRANSFER SHIFT | ||||
| 33503-27190 |
CM6#,YM6#..DX |
1 | ||
| 36305B - LEVER SUB-ASSY, TRANSFER SHIFT | ||||
| 33503-27190 |
CM6#,YM6#..DX |
1 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11006 |
CM6#,YM6# |
2 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11006 |
CM6#,YM6# |
2 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11006 |
CM6#,YM6# |
2 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11006 |
CM6#,YM6# |
2 | ||
| Common parts | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01406 | ||||
| 90949-01410 | ||||
| 91121-40835 | ||||
| 91121-50850 | ||||
| 91611-60814 | ||||
| 91611-61020 | ||||
| 91631-40820 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 3312 | ||||

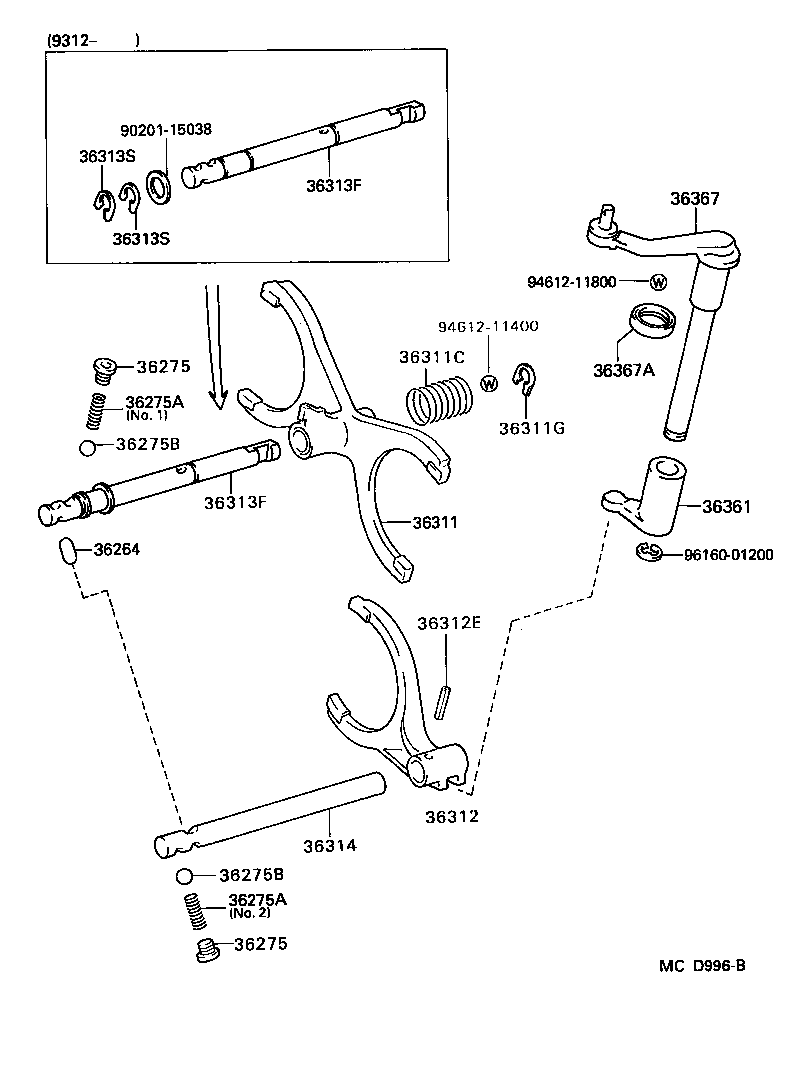

ILLUST NO. 2 OF 2(8610-9508)CM6#,YM6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10013 |
CM6#,YM6# |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
CM6#,YM6# |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
CM6#,YM6# |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16094 |
CM6#,YM6# NO.2 |
1 | ||
| 90501-12106 |
CM6#,YM6# NO.1 |
1 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16094 |
CM6#,YM6# NO.2 |
1 | ||
| 90501-12106 |
CM6#,YM6# NO.1 |
1 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
CM6#,YM6# 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
CM6#,YM6# 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 36311 - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36301-28010 |
CM6#,YM60 |
1 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-18071 |
CM6#,YM60 |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13001 |
CM6#,YM6# |
1 | ||
| 36312 - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-27010 |
CM6#,YM6# |
1 | ||
| 36312E - PIN, SLOTTED SPRING (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90254-05001 |
CM6#,YM6# |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-28020 |
CM6#,YM6# |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-28020 |
CM6#,YM6# |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-28020 |
CM6#,YM6# |
1 | ||
| 36361 - LEVER, TRANSFER SHIFT, INNER | ||||
| 36361-27010 |
CM6#,YM6# |
1 | ||
| 36367 - SHAFT, TRANSFER SHIFT INNER LEVER | ||||
| 36367-27010 |
CM6#,YM6# |
1 | ||
| 36367A - SEAL, OIL (FOR TRANSFER SHIFT INNER LEVER SHAFT) | ||||
| 90311-18006 |
CM6#,YM6# |
1 | ||
| Common parts | ||||
| 90201-15038 | ||||
| 94612-11400 | ||||
| 94612-11800 | ||||
| 96160-01200 | ||||
