YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610-9508)CM6#,YM6#

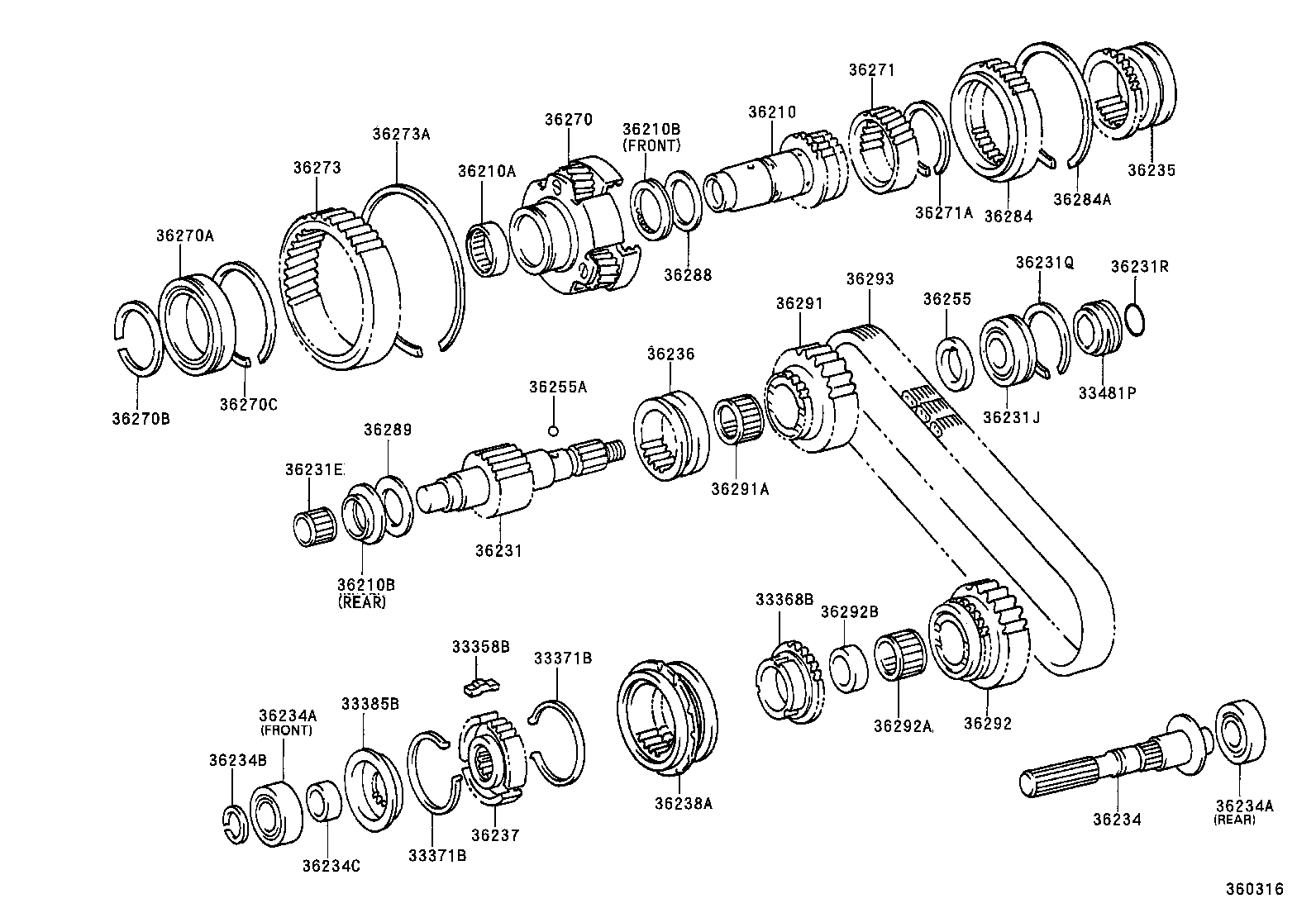

Click highlighted areas on diagram

diagram 33358B 33368B 33371B 33371B 33385B 33481P 36210 36210A 36210B 36210B 36231 36231E 36231J 36231Q 36231R 36234 36234A 36234A 36234B 36234C 36235 36236 36237 36238A 36255 36255A 36270 36270A 36270B 36270C 36271 36271A 36273 36273A 36284 36284A 36288 36289 36291 36291A 36292 36292A 36292B 36293
Part # Description Qty Price
33358B - KEY, SYNCHROMESH SHIFTING (FOR TRANSFER FR DRIVE CLUTCH
33358-28010

CM6#,YM6#

 3
33368B - RING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH)
33368-20012

CM6#,YM6#

 1
33371B - SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)
33371-14031

CM6#,YM6#

 2
33371B - SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)
33371-14031

CM6#,YM6#

 2
33385B - RETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH
33385-28010

CM6#,YM6#

 1
33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
33481-28020

CM6#,YM60

歯数=6,ﾏｰｸ 2

 1
36210 - SHAFT ASSY, TRANSFER INPUT
36210-28010

CM6#,YM6#

 1
36210A - BEARING (FOR TRANSFER INPUT SHAFT)
90364-47001

CM6#,YM6#

 1
36210B - BEARING, THRUST (FOR TRANSFER INPUT SHAFT)
90374-49001

CM6#,YM6#

FRONT

 1
90374-39002

CM6#,YM6#

REAR

 1
36210B - BEARING, THRUST (FOR TRANSFER INPUT SHAFT)
90374-49001

CM6#,YM6#

FRONT

 1
90374-39002

CM6#,YM6#

REAR

 1
36231 - SHAFT, TRANSFER OUTPUT, REAR
36231-28010

CM6#,YM6#

 1
36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT
90364-28004

CM6#,YM6#

 1
36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
90363-32006

CM6#,YM6#

 1
36231Q - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR BEARIN
90520-71221

CM6#,YM6#

 1
36231R - RING, O (FOR TRANSFER OUTPUT SHAFT)
96721-24028

CM6#,YM6#

 1
36234 - SHAFT, TRANSFER OUTPUT, FRONT
36234-28011

CM6#,YM6#

 1
36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
90363-28004

CM6#,YM6#

REAR

 1
90363-30050

CM6#,YM6#

FRONT

 1
36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
90363-28004

CM6#,YM6#

REAR

 1
90363-30050

CM6#,YM6#

FRONT

 1
36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
90520-27028

CM6#,YM6#

厚さ=2.15,ﾏｰｸ 5

 1
90520-27027

CM6#,YM6#

厚さ=2.10,ﾏｰｸ 4

 1
90520-27033

CM6#,YM6#

厚さ=2.40,ﾏｰｸ 10

 1
90520-27024

CM6#,YM6#

厚さ=1.95,ﾏｰｸ 1

 1
90520-27032

CM6#,YM6#

厚さ=2.35,ﾏｰｸ 9

 1
90520-27030

CM6#,YM6#

厚さ=2.25,ﾏｰｸ 7

 1
90520-27029

CM6#,YM6#

厚さ=2.20,ﾏｰｸ 6

 1
90520-27031

CM6#,YM6#

厚さ=2.30,ﾏｰｸ 8

 1
90520-27035

CM6#,YM6#

厚さ=2.50,ﾏｰｸ 12

 1
90520-27034

CM6#,YM6#

厚さ=2.45,ﾏｰｸ 11

 1
90520-27025

CM6#,YM6#

厚さ=2.00,ﾏｰｸ 2

 1
90520-27026

CM6#,YM6#

厚さ=2.05,ﾏｰｸ 3

 1
36234C - SPACER (FOR TRANSFER OUTPUT FRONT SHAFT)
90560-33002

CM6#,YM6#

 1
36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH
36235-28010

CM6#,YM6#

 1
36236 - SLEEVE, FRONT DRIVE CLUTCH
36236-28010

CM6#,YM6#

 1
36237 - HUB, TRANSFER CLUTCH
33361-35020

CM6#,YM6#

 1
36238A - SLEEVE, TRANSFER FRONT DRIVE CLUTCH, NO.2
36206-28010

CM6#,YM6#

 1
36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1
36255-28010

CM6#,YM60

 1
36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER)
90360-05012

CM6#,YM6#

 1
36270 - GEAR ASSY, TRANSFER LOW PLANETARY
36270-28011

CM6#,YM60

 1
36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR)
90363-75001

CM6#,YM6#

 1
36270B - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
90520-72002

CM6#,YM6#

厚さ=1.50,ﾏｰｸ 2

 1
90520-72001

CM6#,YM6#

厚さ=1.45,ﾏｰｸ 1

 1
90520-72004

CM6#,YM6#

厚さ=1.60,ﾏｰｸ 4

 1
90520-72005

CM6#,YM6#

厚さ=1.65,ﾏｰｸ 5

 1
90520-72003

CM6#,YM6#

厚さ=1.55,ﾏｰｸ 3

 1
36270C - RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARIN
90520-99001

CM6#,YM6#

 1
36271 - GEAR, TRANSFER LOW PLANETARY SUN
36271-28010

CM6#,YM6#

 1
36271A - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY SUN GEAR)
90520-68001

CM6#,YM6#

 1
36273 - GEAR, TRANSFER LOW PLANETARY RING
36273-28011

CM6#,YM60

 1
36273A - RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
90521-99052

CM6#,YM6#

 1
36284 - PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
36284-28010

CM6#,YM60

 1
36284A - RING, HOLE SNAP(FOR TRANSFER SPLINE PIECE)
90521-99055

CM6#,YM60

 1
36288 - RACE, TRANSFER THRUST BEARING, NO.1
36288-28010

CM6#,YM6#

 1
36289 - RACE, TRANSFER THRUST BEARING, NO.2
36289-28010

CM6#,YM6#

 1
36291 - SPROCKET, TRANSFER DRIVE
36291-28010

CM6#,YM60

 1
36291A - BEARING (FOR TRANSFER DRIVE SPROCKET)
90364-37006

CM6#,YM6#

 1
36292 - SPROCKET, TRANSFER DRIVEN
36292-28010

CM6#,YM60

 1
36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET)
90364-37006

CM6#,YM6#

 1
36292B - SPACER (FOR TRANSFER DRIVEN SPROCKET)
90560-37002

CM6#,YM6#

 1
36293 - CHAIN, TRANSFER FRONT DRIVE
36293-28010

CM6#,YM60

 1
