YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )CM51,60,KM51,YM60..JL..MTM..IV

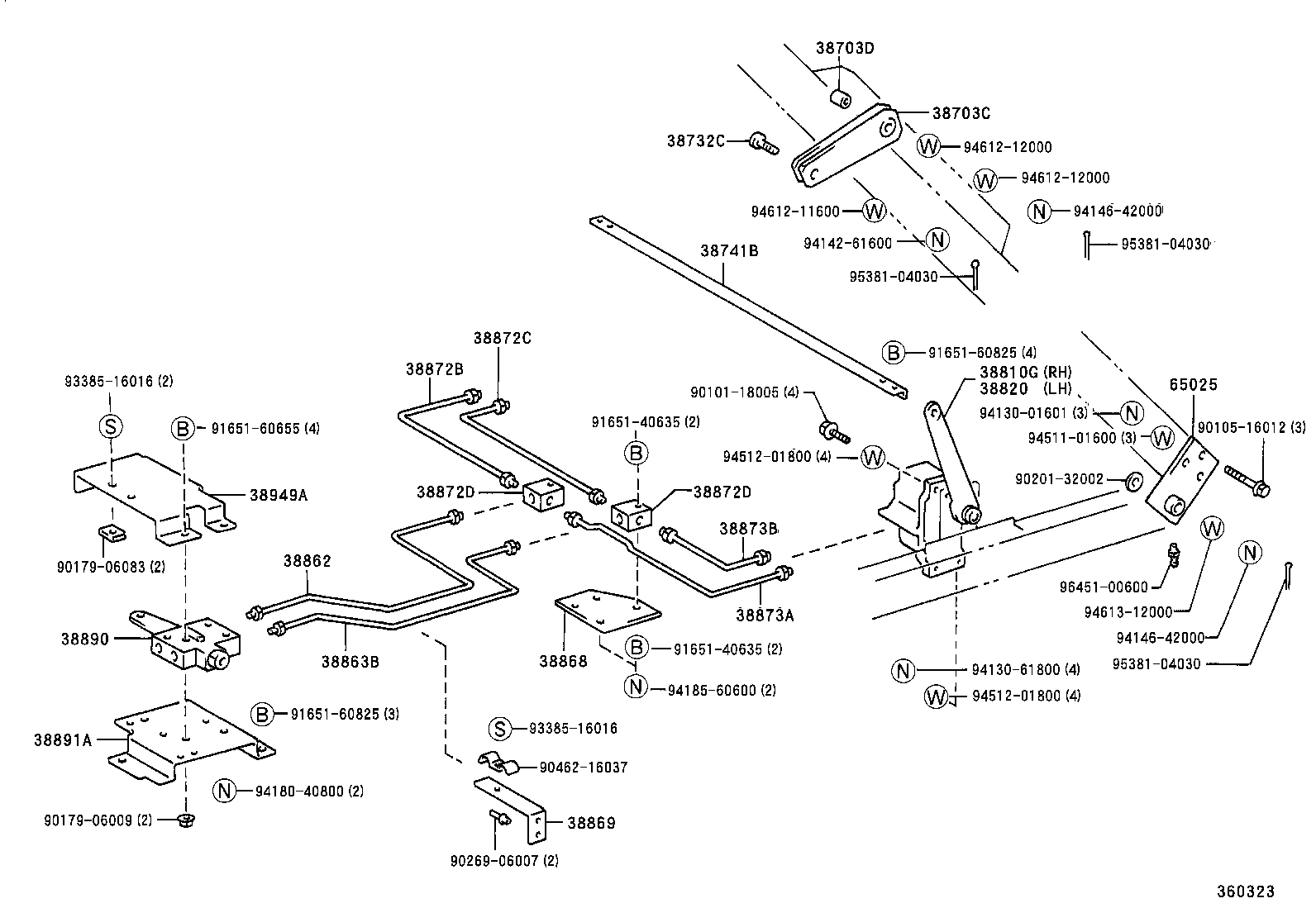

Click highlighted areas on diagram

diagram 38703C 38703D 38732C 38741B 38810G 38820 38862 38863B 38868 38869 38872B 38872C 38872D 38872D 38873A 38873B 38890 38891A 38949A 65025 9010118005 9010516012 9017906009 9017906083 9020132002 9026906007 9046216037 9165140635 9165140635 9165160655 9165160825 9165160825 9338516016 9338516016 9413001601 9413061800 9414261600 9414642000 9414642000 9418040800 9418560600 9451101600 9451201800 9451201800 9461211600 9461212000 9461212000 9461312000 9538104030 9538104030 9538104030 9645100600
Part # Description Qty Price
38703D - BUSH, SOLID (FOR VESSEL LIFT ARM)
90380-30001

CM51,60,KM51,YM60..JL..MTM..IV

 2
38732C - BOLT, VESSEL LIFT ARM
38732-95700

CM51,60,KM51,YM60..JL..MTM..IV

 2
38741B - BAR, DUMP ACTUATOR CONNECT
38741-95700

CM51,60,KM51,YM60..JL..MTM..IV

 1
38862 - TUBE, DUMP CONTROL VALVE TO ACTUATOR, NO.1
38862-95700

CM51,60,KM51,YM60..JL..MTM..IV

 1
38863B - TUBE, DUMP CONTROL VALVE TO ACTUATOR, NO.2
38863-95700

CM51,60,KM51,YM60..JL..MTM..IV

 1
38868 - BRACKET, DUMP ACTUATOR TUBE WAY
38868-95700

CM51,60,KM51,YM60..JL..MTM..IV

 1
38869 - BRACKET, DUMP ACTUATOR TUBE CLAMP
38869-95703

CM51,60,KM51,YM60..JL..MTM..IV

 1
38872B - TUBE, DUMP ACTUATOR, RH NO.1
38872-95700

CM51,60,KM51,YM60..JL..MTM..IV

 1
38872C - TUBE, DUMP ACTUATOR, RH NO.2
38872-95701

CM51,60,KM51,YM60..JL..MTM..IV

 1
38872D - WAY, 3 (FOR DUMP ACTUATOR TUBE)
90413-16002

CM51,60,KM51,YM60..JL..MTM..IV

 2
38872D - WAY, 3 (FOR DUMP ACTUATOR TUBE)
90413-16002

CM51,60,KM51,YM60..JL..MTM..IV

 2
38873A - TUBE, DUMP ACTUATOR, LH NO.1
38873-95700

CM51,60,KM51,YM60..JL..MTM..IV

 1
38873B - TUBE, DUMP ACTUATOR, LH NO.2
38873-95701

CM51,60,KM51,YM60..JL..MTM..IV

 1
38890 - VALVE ASSY, DUMP ACTUATOR CONTROL
38890-95700

YM60..5H..IV;CM51,60,KM51..JL..MTM..IV

 1
38891A - BRACKET, DUMP ACTUATOR CONTROL VALVE
38891-95700

YM60..5H..IV;CM51,60,KM51..JL..MTM..IV

 1
38949A - COVER, DUMP ACTUATOR CONTROL VALVE
38949-95700

CM51,60,KM51,YM60..JL..MTM..IV

 1
65025 - BRACKET SUB-ASSY, VESSEL HINGE
65025-95700

CM51,60,KM51,YM60..JL..MTM..IV

 2
Common parts
90101-18005
90105-16012
90179-06009
90179-06083
90201-32002
90269-06007
90462-16037
91651-40635
91651-60655
91651-60825
93385-16016
94130-01601
94130-61800
94142-61600
94146-42000
94180-40800
94185-60600
94511-01600
94512-01800
94612-11600
94612-12000
94613-12000
95381-04030
96451-00600
