YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )CM51,60,KM51,YM60..JL..MTM..IV

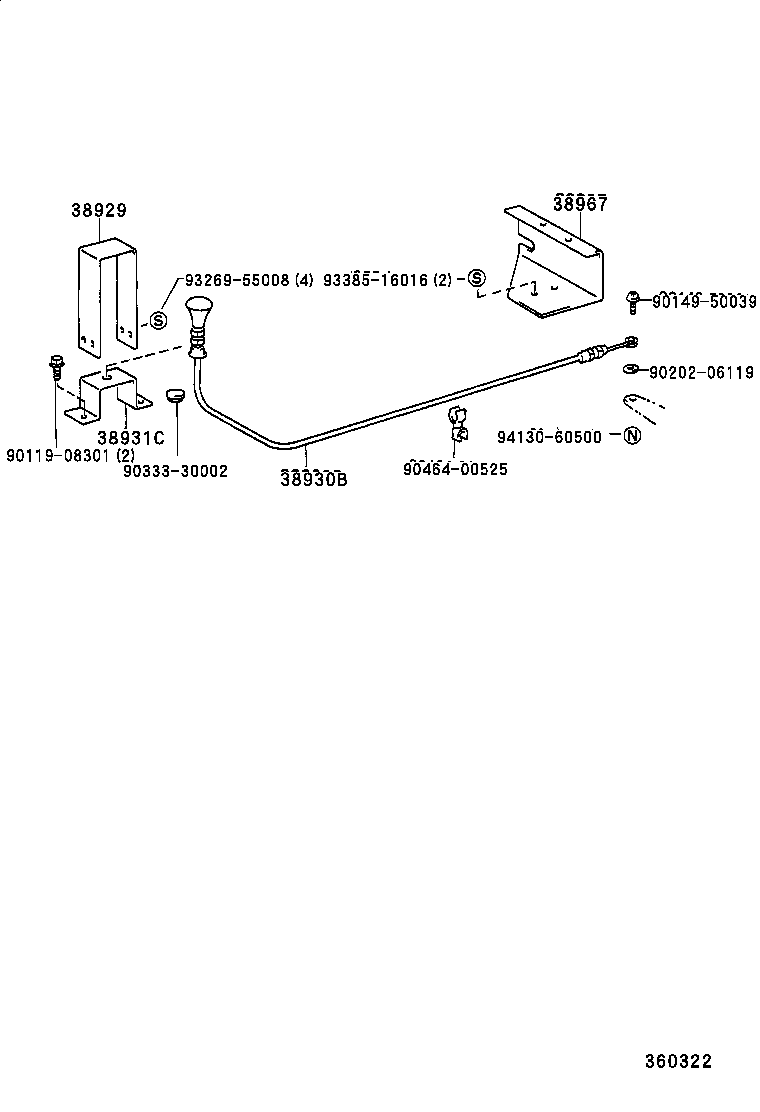

Click highlighted areas on diagram

diagram 38929 38930B 38931C 38967 9011908301 9014950039 9020206119 9033330002 9046400525 9326955008 9338516016 9413060500
Part # Description Qty Price
38929 - COVER, DUMP ACTUATOR CONTROL VALVE CABLE
38929-95700

CM51,60,KM51,YM60..JL..MTM..IV

 1
38930B - CABLE ASSY, DUMP ACTUATOR CONTROL VALVE
38930-95700

CM51,60,KM51,YM60..JL..MTM..IV

 1
38931C - BRACKET, DUMP ACTUATOR CONTROL VALVE CABLE, NO.1
38931-95700

CM51,60,KM51,YM60..JL..MTM..IV

 1
38967 - BRACKET, DUMP ACTUATOR CONTROL VALVE CABLE, NO.2
38967-95700

CM51,60,KM51,YM60..JL..MTM..IV

 1
Common parts
90119-08301
90149-50039
90202-06119
90333-30002
90464-00525
93269-55008
93385-16016
94130-60500
