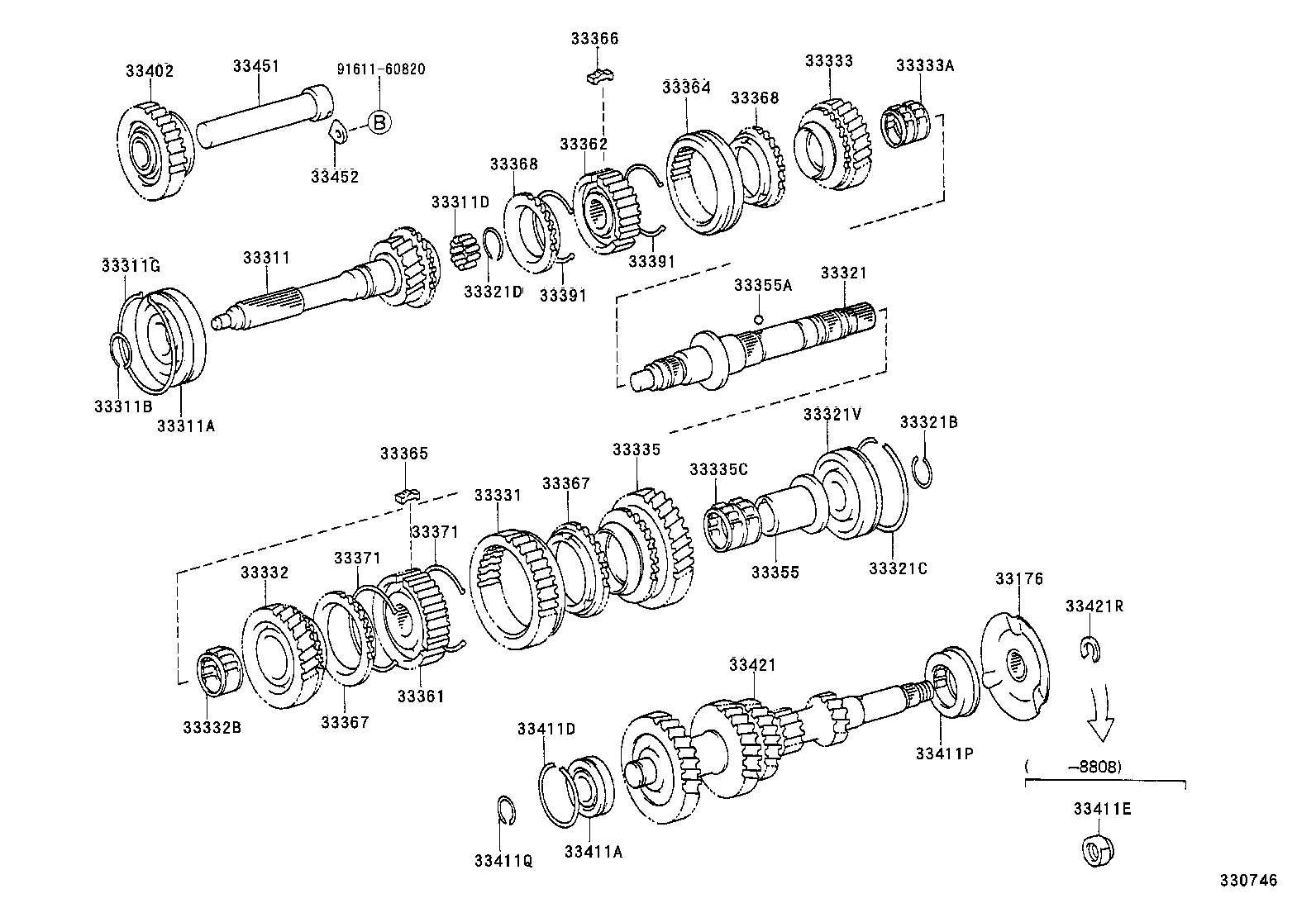

YM60-TBJDS3 (1986)
Toyota Lite/Townace Truck
(8610-9008)YM60..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33176 - SEPARATOR, MANUAL TRANSMISSION OIL, NO.1 | ||||
| 33176-35011 |
YM60..DX |
1 | ||
| 33176-35010 |
YM60..DX |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-28060 |
YM60;KM51..5F |
1 | ||
| 33301-26040 |
YM60;KM51..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-32024 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30216 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.15,ﾏｰｸ 2 |
1 | ||
| 90520-30217 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.20,ﾏｰｸ 3 |
1 | ||
| 90520-30214 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.05,ﾏｰｸ 0 |
1 | ||
| 90520-30215 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.10,ﾏｰｸ 1 |
1 | ||
| 90520-30218 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.25,ﾏｰｸ 4 |
1 | ||
| 90520-30219 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.30,ﾏｰｸ 5 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06002 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
13 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76002 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-28010 |
CM6#,YM6# |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25014 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=3.09−3.14,ﾏｰｸ H |
1 | ||
| 90520-25013 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=3.03−3.08,ﾏｰｸ G |
1 | ||
| 90520-25010 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.85−2.90,ﾏｰｸ D |
1 | ||
| 90520-25006 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.73−2.78,ﾏｰｸ B |
1 | ||
| 90520-25011 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.91−2.96,ﾏｰｸ E |
1 | ||
| 90520-25009 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.79−2.84,ﾏｰｸ C |
1 | ||
| 90520-25017 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=3.27−3.32,ﾏｰｸ L |
1 | ||
| 90520-25012 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.97−3.02,ﾏｰｸ F |
1 | ||
| 90520-25005 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.67−2.72,ﾏｰｸ A |
1 | ||
| 90520-25016 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=3.21−3.26,ﾏｰｸ K |
1 | ||
| 90520-25015 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=3.15−3.20,ﾏｰｸ J |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28245 |
YM60;CM50,55,6#,KM51..5F,5H 厚さ=1.80−1.85,ﾏｰｸ D |
1 | ||
| 90520-28010 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=1.85,ﾏｰｸ D−1 |
1 | ||
| 90520-28248 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.00−2.05,ﾏｰｸ F |
1 | ||
| 90520-28011 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=1.95,ﾏｰｸ E−1 |
1 | ||
| 90520-28012 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=1.75,ﾏｰｸ C−1 |
1 | ||
| 90520-28013 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.05,ﾏｰｸ F−1 |
1 | ||
| 90520-28246 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=1.90−1.95,ﾏｰｸ E |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-30032 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-28010 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33331-35060 |
YM60;KM51..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-35020 |
YM60;KM51..5F |
1 | ||
| 33033-35021 |
YM60;KM51..5F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-38002 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-28020 |
YM60;CM51,KM51..5F,5H |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-35005 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-35010 |
YM60;CM50,55,KM51..5F,5H |
1 | ||
| 33032-35010 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33032-35050 |
YM60;CM50,55,KM51..5F,5H |
1 | ||
| 33032-26020 |
YM60;CM51,6#,KM51..5F,5H |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-39002 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-35011 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35020 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-35020 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-35010 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35020 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-35020 |
YM60;CM50,55,6#,KM51..5F,5H |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
CM5#,6#,KM5#,YM55,6#..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
CM5#,6#,KM5#,YM55,6#..MTM |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-35050 |
YM60;CM51,KM51..5F,5H |
1 | ||
| 33402-28011 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25010 |
YM60;KM51..5F |
1 | ||
| 90365-25025 |
YM60;KM51..5F |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=1.07,外径=55.6 |
1 | ||
| 33411E - NUT(FOR COUNTER GEAR SHAFT) | ||||
| 90179-20009 |
YM60;KM51..5F |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-31006 |
CM50,55,YM60..MTM..DX |
1 | ||
| 90365-31002 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 90365-31006 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23089 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.10−2.15 |
1 | ||
| 90520-23145 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.30−2.35 |
1 | ||
| 90520-23115 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.05−2.10 |
1 | ||
| 90520-23143 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.15−2.20 |
1 | ||
| 90520-23144 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.25−2.30 |
1 | ||
| 90520-23090 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.20−2.25 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-28022 |
YM60;KM51..5F |
1 | ||
| 33421-35150 |
YM60;KM51..5F |
1 | ||
| 33421-28040 |
YM60;KM51..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-28010 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-36030 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
(8610-9008)5F,5H ; (9008-9906)MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-28060 |
YM60;KM51..5F |
1 | ||
| 33301-26040 |
YM60;KM51..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-32024 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30216 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.15,ﾏｰｸ 2 |
1 | ||
| 90520-30217 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.20,ﾏｰｸ 3 |
1 | ||
| 90520-30214 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.05,ﾏｰｸ 0 |
1 | ||
| 90520-30215 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.10,ﾏｰｸ 1 |
1 | ||
| 90520-30218 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.25,ﾏｰｸ 4 |
1 | ||
| 90520-30219 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.30,ﾏｰｸ 5 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06002 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
13 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76002 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-28010 |
CM6#,YM6# |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25014 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=3.09−3.14,ﾏｰｸ H |
1 | ||
| 90520-25013 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=3.03−3.08,ﾏｰｸ G |
1 | ||
| 90520-25010 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.85−2.90,ﾏｰｸ D |
1 | ||
| 90520-25006 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.73−2.78,ﾏｰｸ B |
1 | ||
| 90520-25011 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.91−2.96,ﾏｰｸ E |
1 | ||
| 90520-25009 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.79−2.84,ﾏｰｸ C |
1 | ||
| 90520-25017 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=3.27−3.32,ﾏｰｸ L |
1 | ||
| 90520-25012 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.97−3.02,ﾏｰｸ F |
1 | ||
| 90520-25005 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.67−2.72,ﾏｰｸ A |
1 | ||
| 90520-25016 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=3.21−3.26,ﾏｰｸ K |
1 | ||
| 90520-25015 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=3.15−3.20,ﾏｰｸ J |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28245 |
YM60;CM50,55,6#,KM51..5F,5H 厚さ=1.80−1.85,ﾏｰｸ D |
1 | ||
| 90520-28010 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=1.85,ﾏｰｸ D−1 |
1 | ||
| 90520-28248 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.00−2.05,ﾏｰｸ F |
1 | ||
| 90520-28011 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=1.95,ﾏｰｸ E−1 |
1 | ||
| 90520-28012 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=1.75,ﾏｰｸ C−1 |
1 | ||
| 90520-28013 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.05,ﾏｰｸ F−1 |
1 | ||
| 90520-28246 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=1.90−1.95,ﾏｰｸ E |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-30032 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-28010 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33331-35060 |
YM60;KM51..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-35020 |
YM60;KM51..5F |
1 | ||
| 33033-35021 |
YM60;KM51..5F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-38002 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-28020 |
YM60;CM51,KM51..5F,5H |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-35005 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-35010 |
YM60;CM50,55,KM51..5F,5H |
1 | ||
| 33032-35010 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33032-35050 |
YM60;CM50,55,KM51..5F,5H |
1 | ||
| 33032-26020 |
YM60;CM51,6#,KM51..5F,5H |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-39002 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-35011 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35020 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-35020 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-35010 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35020 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-35020 |
YM60;CM50,55,6#,KM51..5F,5H |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
CM5#,6#,KM5#,YM55,6#..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
CM5#,6#,KM5#,YM55,6#..MTM |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-35050 |
YM60;CM51,KM51..5F,5H |
1 | ||
| 33402-28011 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25010 |
YM60;KM51..5F |
1 | ||
| 90365-25025 |
YM60;KM51..5F |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=1.07,外径=55.6 |
1 | ||
| 33411E - NUT(FOR COUNTER GEAR SHAFT) | ||||
| 90179-20009 |
YM60;KM51..5F |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-31006 |
CM50,55,YM60..MTM..DX |
1 | ||
| 90365-31002 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 90365-31006 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23089 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.10−2.15 |
1 | ||
| 90520-23145 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.30−2.35 |
1 | ||
| 90520-23115 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.05−2.10 |
1 | ||
| 90520-23143 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.15−2.20 |
1 | ||
| 90520-23144 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.25−2.30 |
1 | ||
| 90520-23090 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H 厚さ=2.20−2.25 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-28022 |
YM60;KM51..5F |
1 | ||
| 33421-35150 |
YM60;KM51..5F |
1 | ||
| 33421-28040 |
YM60;KM51..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-28010 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-36030 |
YM60;CM5#,6#,KM51,YM55,65..5F,5H |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
