YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )2Y

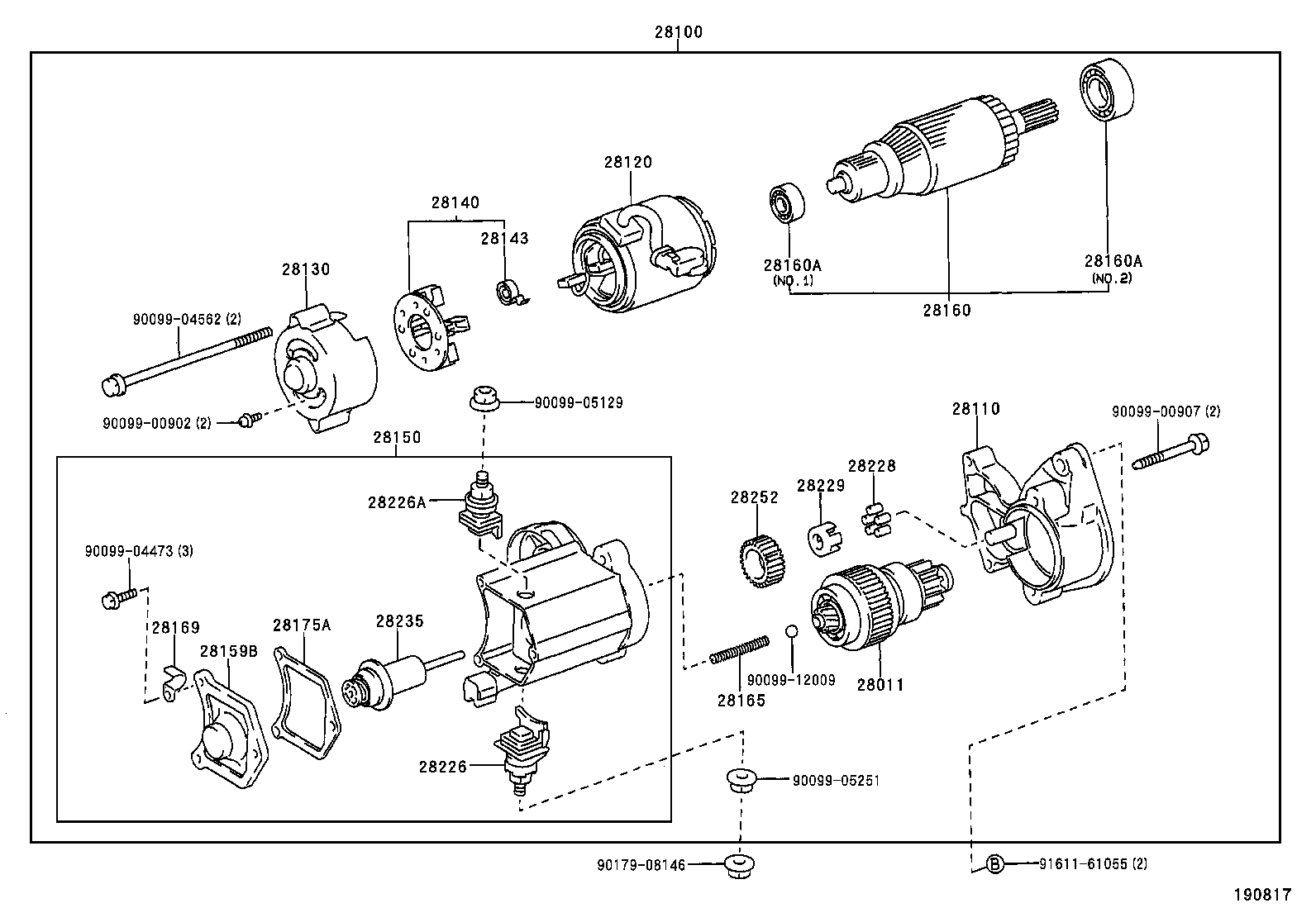

Click highlighted areas on diagram

12V 1.0KW

diagram 28011 28100 28110 28120 28130 28140 28143 28150 28159B 28160 28160A 28160A 28165 28169 28175A 28226 28226A 28228 28229 28235 28252 9009900902 9009900907 9009904473 9009904562 9009905129 9009905251 9009912009 9017908146 9161161055
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042

5K,2Y..KM51,YM55,60

12V 1.0KW

 1
28011-26042

2Y..YM55,6#

 1
28100 - STARTER ASSY
28100-72010

2Y..YM55,6#

12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-72010

2Y..YM55,60

12V 1.0KW

 1
28120 - YOKE ASSY, STARTER
28120-26071

2Y..YM55,6#;5K..KM51..(SJL,T1)..(3HC,4H,5F)

12V 1.0KW,ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-72010

2Y..YM55,60

12V 1.0KW

 1
28130-72010

2Y..YM55,6#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070

5K,2Y..KM51,YM55,60

12V 1.0KW

 1
28140-26070

2Y..YM55,6#

 1
28143 - SPRING, STARTER BRUSH
90099-17112

5K,2Y..KM51,YM55,60

12V 1.0KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-34080

2Y..YM55,60

12V 1.0KW

 1
28150-34080

2Y..YM55,6#

 1
28160 - ARMATURE ASSY, STARTER
28160-26070

2Y..YM55,60

 1
28160-26071

2Y..YM55,6#

 1
28160-26070

5K,2Y..KM51,YM55,60

12V 1.0KW

 1
28160A - BEARING, STARTER ARMATURE
90099-10113

5K,2Y..KM51,YM55,60

12V 1.0KW,NO.2

 1
28253-45020

5K,2Y..KM51,YM55,60

12V 1.0KW,NO.1

 1
28253-45020

2Y..YM55,6#

NO.1

 1
90099-10113

2Y..YM55,6#

NO.2

 1
28160A - BEARING, STARTER ARMATURE
90099-10113

5K,2Y..KM51,YM55,60

12V 1.0KW,NO.2

 1
28253-45020

5K,2Y..KM51,YM55,60

12V 1.0KW,NO.1

 1
28253-45020

2Y..YM55,6#

NO.1

 1
90099-10113

2Y..YM55,6#

NO.2

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

1C,2C,5K,2Y..CM5#,6#,KM51,YM55,60

12V 1.0KW,1.4KW,2.0KW,2.2KW

 1
28226 - STARTER KIT, BATTERY TERMINAL
28226-72080

2Y..YM55,6#

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-72010

1C,2C,5K,2Y..CM5#,6#,KM51,YM55,6#..3FC,3HC,4H,5F,5H

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

1C,2C,5K,2Y..CM5#,6#,KM51,YM55,60

12V 1.0KW,1.4KW,2.0KW,2.2KW

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

1C,2C,5K,2Y..CM5#,6#,KM51,YM55,60

12V 1.0KW,1.4KW,2.0KW

 1
28252 - GEAR, STARTER IDLE
28254-45020

5K,2Y..KM51,YM55,60

12V 1.0KW

 1
28254-45020

2Y..YM55,6#

 1
Common parts
90099-00902
90099-00907
90099-04473
90099-04562
90099-05129
90099-05251
90099-12009
90179-08146
91611-61055
