YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )2Y

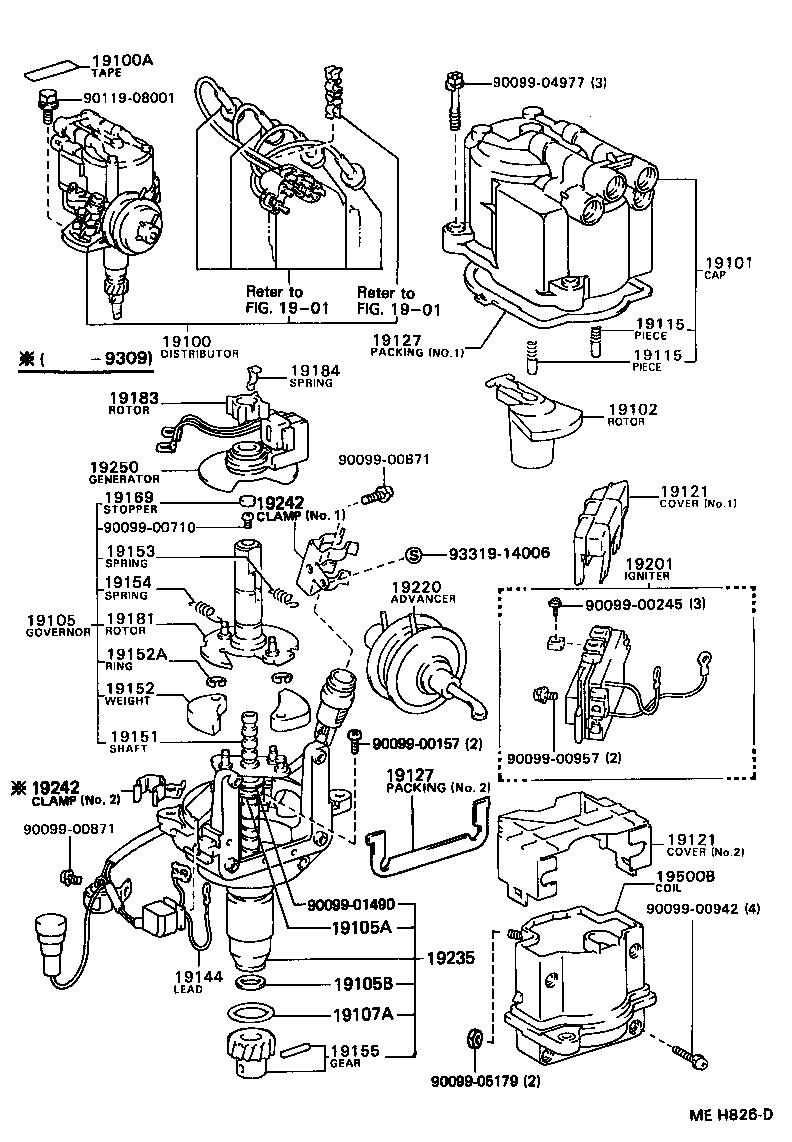

Click highlighted areas on diagram

diagram 1901 1901 19100 19100A 19101 19102 19105 19105A 19105B 19107A 19115 19115 19121 19121 19127 19127 19144 19151 19152 19152A 19153 19154 19155 19169 19181 19183 19184 19201 19220 19235 19242 19242 19250 19500B 9009900157 9009900245 9009900710 9009900871 9009900871 9009900942 9009900957 9009901490 9009904977 9009905179 9011908001 9331914006
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19030-71060

2Y..YM55,6#

 1
19100A - TAPE, SEALING
90919-24004

2Y..YM55,6#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-71010

2Y..YM55,6#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-63010

2Y..YM55,60

 1
19102-16040

2Y..YM55,60

 1
19105 - GOVERNOR SUB-ASSY
19105-71060

2Y..YM55,6#

 1
19105A - WASHER(FOR GOVERNOR SHAFT THRUST)
90099-01489

2Y..YM55,6#

厚さ=0.5

 2
90099-01486

2Y..YM55,6#

厚さ=0.3

 2
90099-01488

2Y..YM55,6#

厚さ=0.6

 2
90099-01487

2Y..YM55,6#

厚さ=0.4

 2
19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST)
90099-01429

2Y..YM55,6#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

2Y..YM55,6#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

2Y..YM55,6#

 2
19115-71010

2Y..YM55,60

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

2Y..YM55,6#

 2
19115-71010

2Y..YM55,60

 2
19121 - COVER, DUST PROOF
19121-63040

2Y..YM55,60

NO.2

 1
19121-63010

2Y..YM55,60

NO.1

 1
19121-63040

2Y..YM55,6#

NO.2

 1
19121-63010

2Y..YM55,6#

NO.1

 1
19121 - COVER, DUST PROOF
19121-63040

2Y..YM55,60

NO.2

 1
19121-63010

2Y..YM55,60

NO.1

 1
19121-63040

2Y..YM55,6#

NO.2

 1
19121-63010

2Y..YM55,6#

NO.1

 1
19127 - PACKING, DUST PROOF
19127-63010

2Y..YM55,60

NO.1

 1
19127-63010

2Y..YM55,6#

NO.1

 1
19127-63020

2Y..YM55,60

NO.2

 1
19127-63020

2Y..YM55,6#

NO.2

 1
19127 - PACKING, DUST PROOF
19127-63010

2Y..YM55,60

NO.1

 1
19127-63010

2Y..YM55,6#

NO.1

 1
19127-63020

2Y..YM55,60

NO.2

 1
19127-63020

2Y..YM55,6#

NO.2

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-71061

2Y..YM55,6#

 1
19151 - SHAFT, GOVERNOR
19151-71010

2Y..YM55,6#

 1
19152 - WEIGHT, GOVERNOR
19152-63010

2Y..YM55,6#

 2
19152-71010

2Y..YM55,60

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

2Y..YM55,6#

 2
19153 - SPRING, GOVERNOR, A
19153-71060

2Y..YM55,6#

 1
19154 - SPRING, GOVERNOR, B
19153-71060

2Y..YM55,6#

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-71010

2Y..YM55,6#

 1
19169 - STOPPER, CAM GREASE
19169-32010

2Y..YM55,60

 1
19169-63011

2Y..YM55,6#

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-71060

2Y..YM55,6#

 1
19183 - ROTOR, SIGNAL
19183-63030

2Y..YM55,6#

 1
19184 - SPRING, ROTOR SET
19184-63010

2Y..YM55,6#

 1
19201 - IGNITER
89620-32020

2Y..YM55,6#

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-71060

2Y..YM55,6#

 1
19235 - HOUSING, DISTRIBUTOR
19235-71010

2Y..YM55,6#

 1
19242 - CLAMP, CORD
19242-71060

2Y..YM55,60

NO.2

 1
19242-71010

2Y..YM55,6#

NO.1

 1
19242 - CLAMP, CORD
19242-71060

2Y..YM55,60

NO.2

 1
19242-71010

2Y..YM55,6#

NO.1

 1
19250 - GENERATOR ASSY, SIGNAL
19251-63011

2Y..YM55,6#

 1
19500B - COIL ASSY, IGNITION
90919-02139

2Y..YM55,6#

 1
Common parts
90099-00157
90099-00245
90099-00710
90099-00871
90099-00942
90099-00957
90099-01490
90099-04977
90099-05179
90119-08001
93319-14006
Linked diagrams
1901
