YM60-TBJDS3 (1986)
Toyota Lite/Townace Truck
Production
Oct 1986
-
Aug 1990
Engine
2Y
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8610-9508)2Y

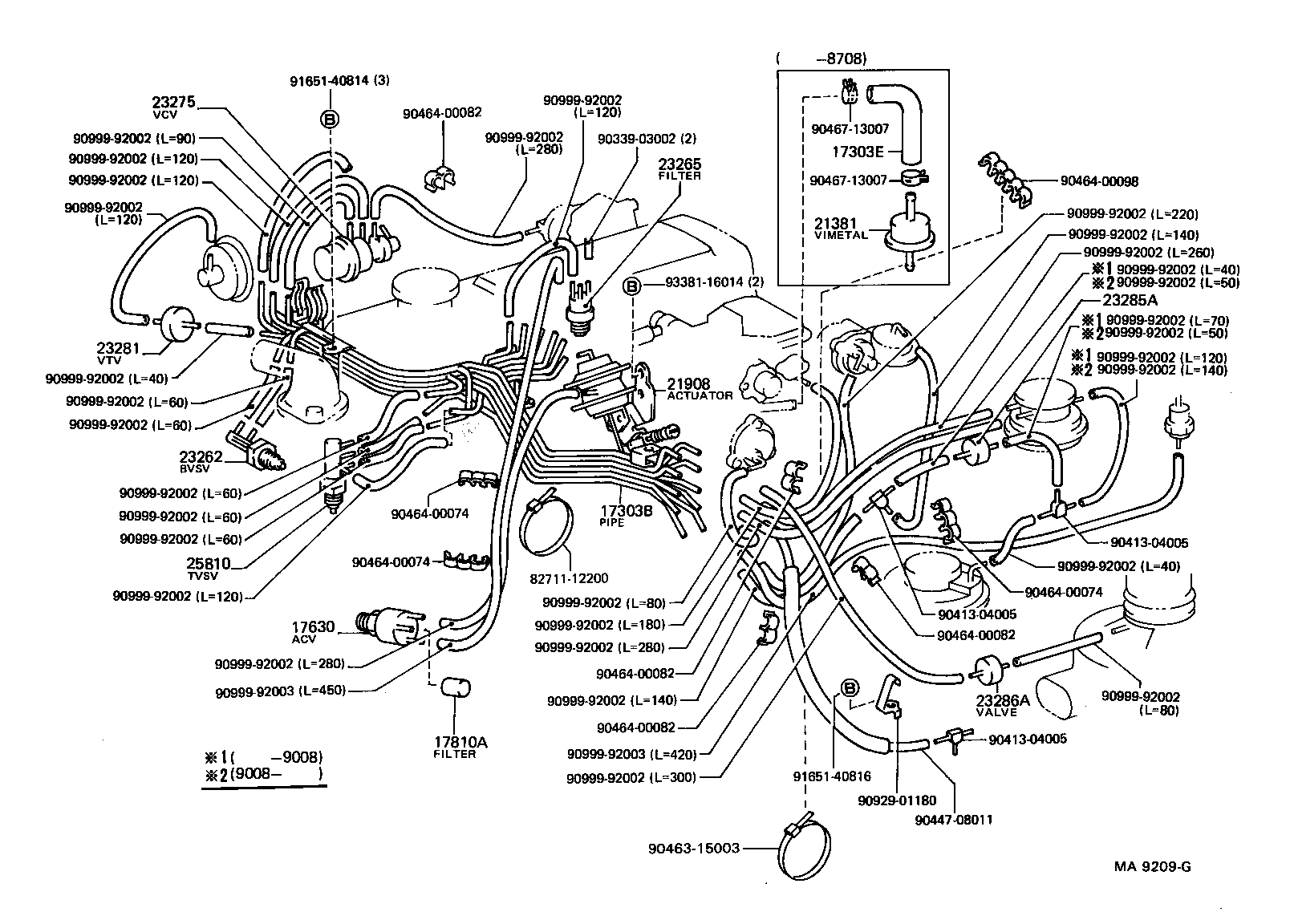

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-72020 |
2Y..YM55,60 |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 23829-72030 |
2Y..YM55,60 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28020 |
2Y..YM55,6# |
1 | ||
| 17630-28020 |
2Y..YM55,60 W/POWER STEERING |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
2Y..YM55,6# |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71050 |
2Y..YM55,60 |
1 | ||
| 21908 - ACTUATOR SUB-ASSY, IDLE-UP | ||||
| 21908-71010 |
2Y..YM55,6# |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05013 |
2Y..YM55,60 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2Y..YM55,60 |
1 | ||
| 90917-11027 |
2Y..YM55,6# |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03166 |
2Y..YM55,6# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
2Y..YM55,60 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2Y..YM55,6# |
1 | ||
| 23286A - VALVE, CHECK, NO.2 | ||||
| 90917-10049 |
2Y..YM55,6# |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 90925-02077 |
2Y..YM55,6# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90447-08011 | ||||
| 90463-15003 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00098 | ||||
| 90467-13007 | ||||
| 90929-01180 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 93381-16014 | ||||
