YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610-9508)2Y

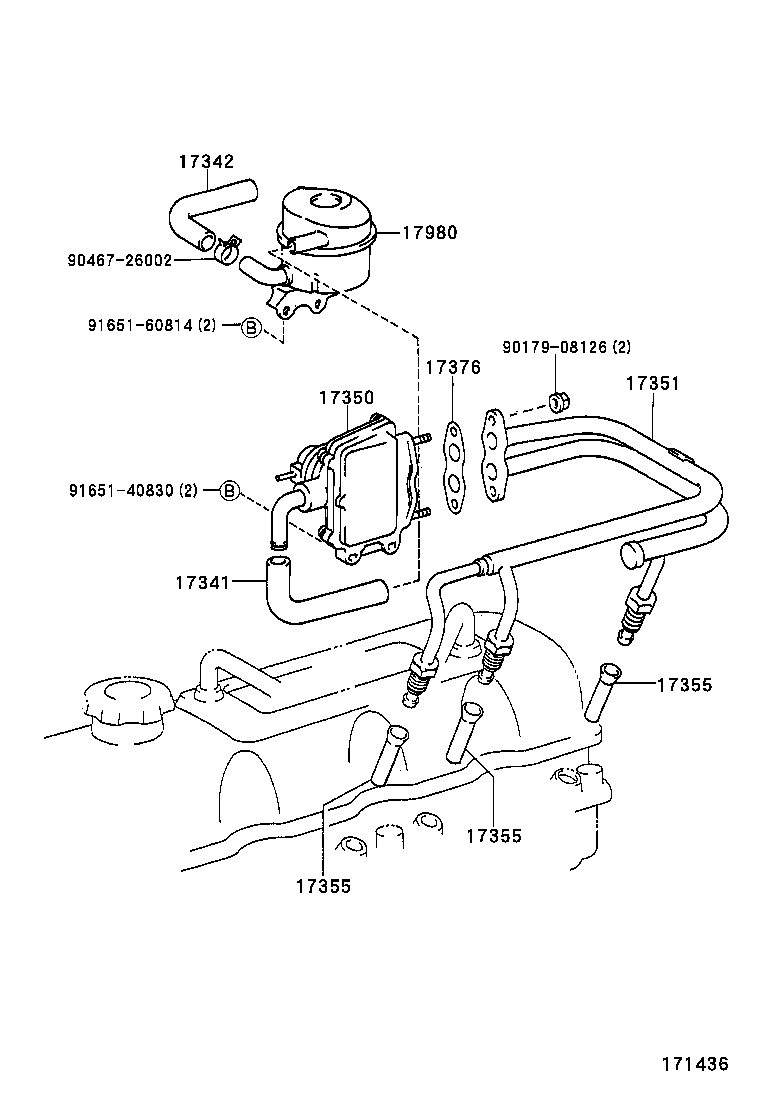

Click highlighted areas on diagram

diagram 17341 17342 17350 17351 17355 17355 17355 17376 17980 9017908126 9046726002 9165140830 9165160814
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-71010

2Y..YM55,6#

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-72011

2Y..YM55,6#

 1
17350 - VALVE ASSY, REED
17350-73010

2Y..YM55,6#

 1
17351 - MANIFOLD, AIR INJECTION
17306-73011

2Y..YM55,6#

 1
17355 - NOZZLE, AIR INJECTION
17355-71010

2Y..YM55,6#

 3
17355 - NOZZLE, AIR INJECTION
17355-71010

2Y..YM55,6#

 3
17355 - NOZZLE, AIR INJECTION
17355-71010

2Y..YM55,6#

 3
17376 - GASKET, AIR TUBE, NO.1
17376-71010

2Y..YM55,60

 1
17376-71011

2Y..YM55,6#

 1
17980 - FILTER ASSY, AIR SUCTION
17980-71012

2Y..YM55,6#

 1
Common parts
90179-08126
90467-26002
91651-40830
91651-60814
