YM60-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )2Y

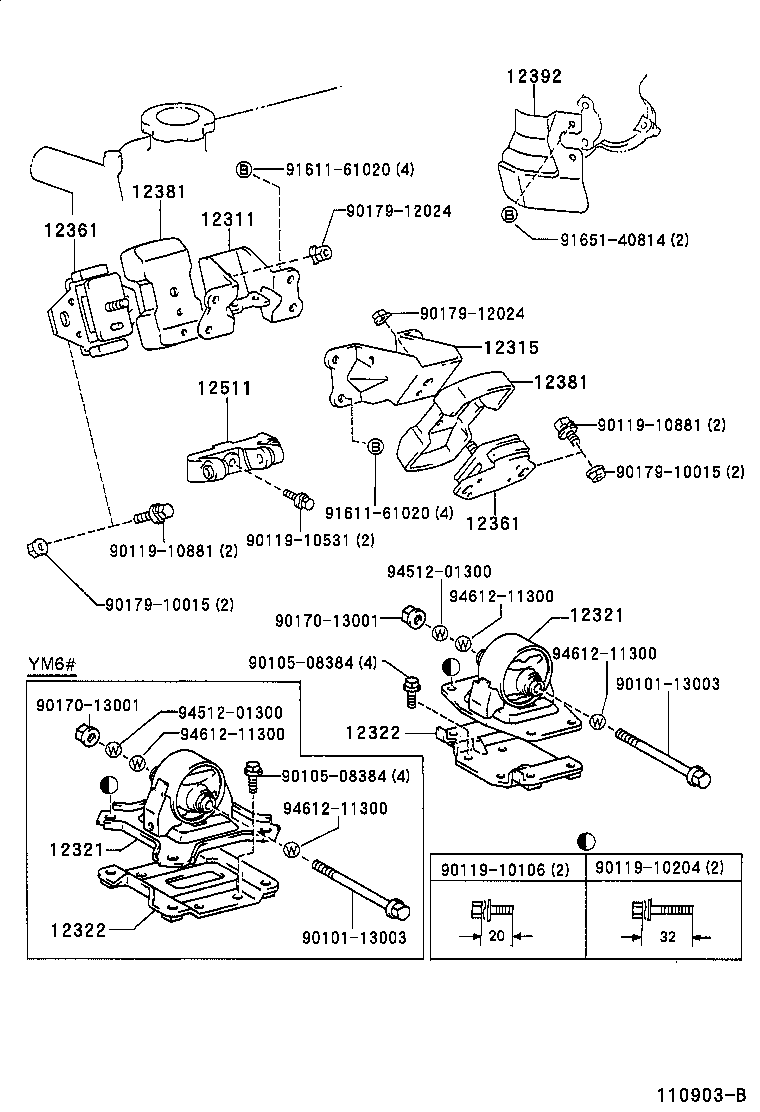

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12322 12322 12361 12361 12381 12381 12392 12511 9010113003 9010113003 9010508384 9010508384 9011910106 9011910204 9011910531 9011910881 9011910881 9017013001 9017013001 9017910015 9017910015 9017912024 9017912024 9161161020 9161161020 9165140814 9451201300 9451201300 9461211300 9461211300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

2Y..YM55,6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

2Y..YM55,6#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-64070

2Y..YM6#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-64070

2Y..YM6#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-64030

2Y..YM6#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-64030

2Y..YM6#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

2Y..YM55,6#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

2Y..YM55,6#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

2Y..YM55,6#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

2Y..YM55,6#

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

2Y..YM55,6#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-73011

2Y..YM55,6#

 1
Common parts
90101-13003
90105-08384
90119-10106
90119-10204
90119-10531
90119-10881
90170-13001
90179-10015
90179-12024
91611-61020
91651-40814
94512-01300
94612-11300
