YM60-TBJDS (1986)
Toyota Lite/Townace Truck
Production
Oct 1986
-
Aug 1990
Engine
2Y
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

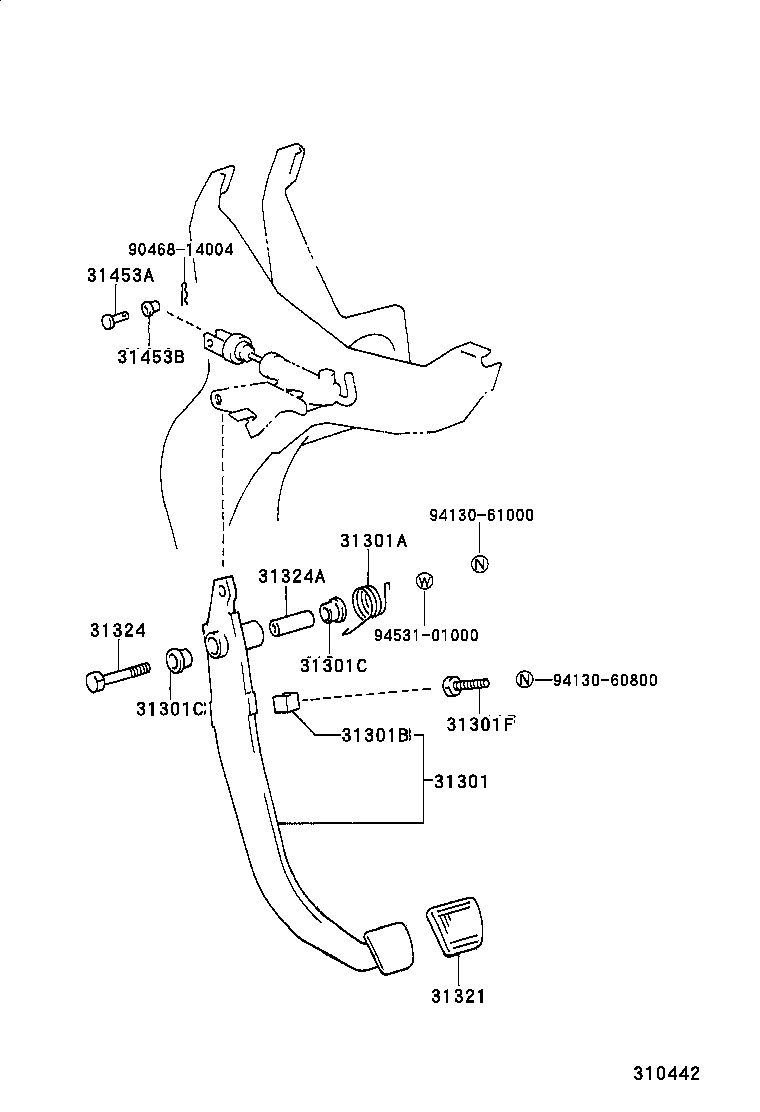

ILLUST NO. 1 OF 3(8610- )YM55,60..MTM ; (8610- )CM5#,6#,KM51,YM65..5F,5H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-27150 |
YM55,60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-32002 |
YM55,60;CM5#,6#,KM51,YM65..5F,5H |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 47131-10020 |
CM5#,6#,KM5#,YM55,6#..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
CM5#,6#,KM5#,YM55,6#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
CM5#,6#,KM5#,YM55,6#..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
CM5#,6#,KM5#,YM55,6#..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
CM5#,6#,KM5#,YM55,6#..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51060 |
CM5#,6#,KM5#,YM55,6#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
CM5#,6#,KM5#,YM55,6#..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
YM55,60;CM5#,6#,KM51,YM65..5F,5H 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
YM55,60;CM5#,6#,KM51,YM65..5F,5H |
1 | ||
| Common parts | ||||
| 90468-14004 | ||||
| 94130-60800 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
ILLUST NO. 2 OF 2(8610- )KM5#,YM55,6#..MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01036 |
YM55,6#..MTM..DX |
1 | ||
| 31481B - WAY(FOR CLUTCH TUBE) | ||||
| 90412-12023 |
YM55,60..MTM;KM51,YM65..5F,5H |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-27090 |
YM60;CM50,55,6#,KM51..5F,5H |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-27110 |
YM55,6#..MTM..DX |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-27060 |
YM55,60;CM5#,6#,KM51,YM65..5F,5H |
1 | ||
| 31489A - TUBE, 2 WAY TO FLEXIBLE HOSE | ||||
| 31489-27130 |
YM55,60..MTM;KM51,YM65..5F,5H |
1 | ||
| Common parts | ||||
| 90461-08233 | ||||
| 90461-08639 | ||||
| 90468-08034 | ||||
| 90468-08035 | ||||
| 91611-60812 | ||||
| 91651-60814 | ||||
