YM25-JDLT3 (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Sep 1986
Engine 1YJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

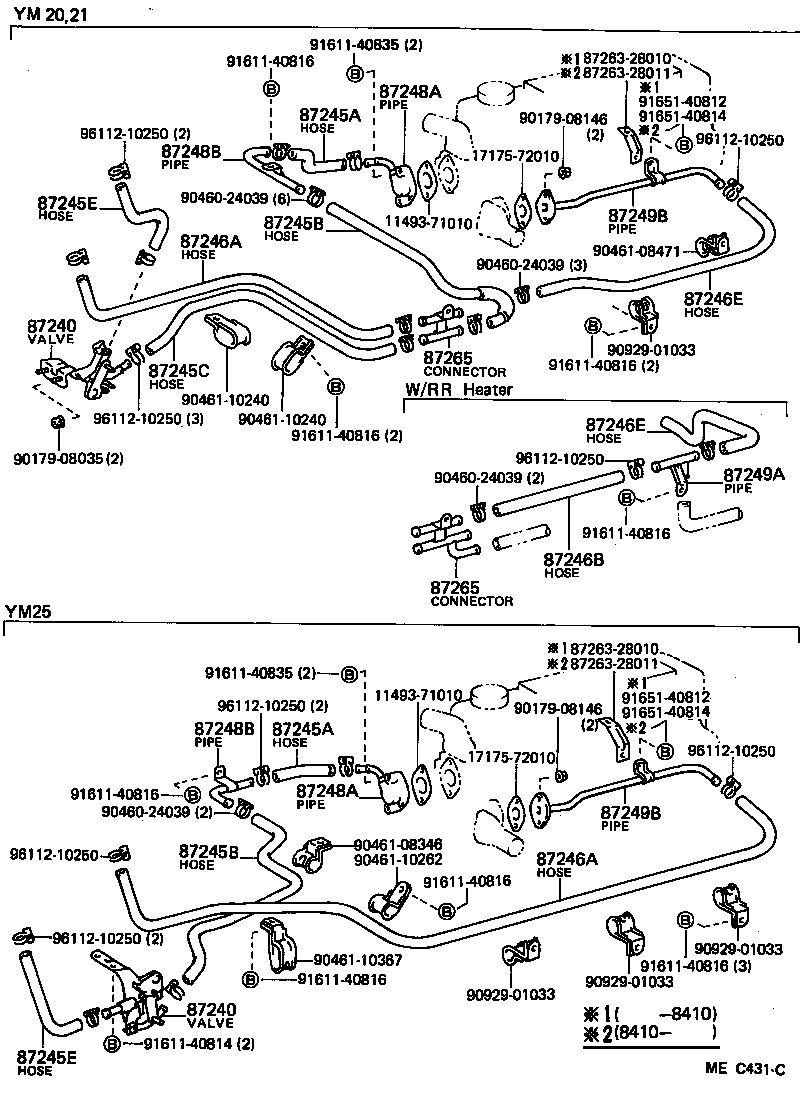

ILLUST NO. 1 OF 2(8210- )YM2#

Click highlighted areas on diagram

diagram 1149371010 1149371010 1717572010 1717572010 87240 87240 87245A 87245A 87245B 87245B 87245C 87245E 87245E 87246A 87246A 87246B 87246E 87246E 87248A 87248A 87248B 87248B 87249A 87249B 87249B 8726328010 8726328010 8726328011 8726328011 87265 87265 9017908035 9017908146 9017908146 9046024039 9046024039 9046024039 9046024039 9046108346 9046108471 9046110240 9046110240 9046110262 9046110367 9092901033 9092901033 9092901033 9092901033 9161140814 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140835 9161140835 9165140812 9165140812 9165140814 9165140814 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95706

CM2#,KM21,YM25..TR

 1
87240 - VALVE ASSY, HEATER WATER
87240-95706

CM2#,KM21,YM25..TR

 1
87245A - HOSE, HEATER WATER, INLET A
99552-30500

YM25

*H,L=450

 1
99556-30450

YM25

*H,L=450

 1
87245A - HOSE, HEATER WATER, INLET A
99552-30500

YM25

*H,L=450

 1
99556-30450

YM25

*H,L=450

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30780

CM2#,YM25..TR

*H,L=780

 1
99552-31000

CM2#,YM25..TR

*H,L=780

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30780

CM2#,YM25..TR

*H,L=780

 1
99552-31000

CM2#,YM25..TR

*H,L=780

 1
87245E - HOSE, HEATER WATER, INLET E
99552-30200

CM2#,KM21,YM25..TR

*H,L=195

 1
99556-30185

CM2#,KM21,YM25..TR

 1
99552-30200

CM2#,KM21,YM25..TR

*H,L=185

 1
87245E - HOSE, HEATER WATER, INLET E
99552-30200

CM2#,KM21,YM25..TR

*H,L=195

 1
99556-30185

CM2#,KM21,YM25..TR

 1
99552-30200

CM2#,KM21,YM25..TR

*H,L=185

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95729

YM25

 1
99552-32000

YM25

*H,L=1800

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95729

YM25

 1
99552-32000

YM25

*H,L=1800

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YM2#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YM2#

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95713

CM2#,YM25..TR

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95713

CM2#,YM25..TR

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-28020

YM2#

 1
87208-28021

YM2#

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-28020

YM2#

 1
87208-28021

YM2#

 1
Common parts
11493-71010
17175-72010
87263-28010
87263-28011
90179-08035
90179-08146
90460-24039
90461-08346
90461-08471
90461-10240
90461-10262
90461-10367
90929-01033
91611-40814
91611-40816
91611-40835
91651-40812
91651-40814
96112-10250
