YM25-JDLT (1982)
Toyota Lite/Townace Truck
(8210- )YM25 ; (8210- )YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

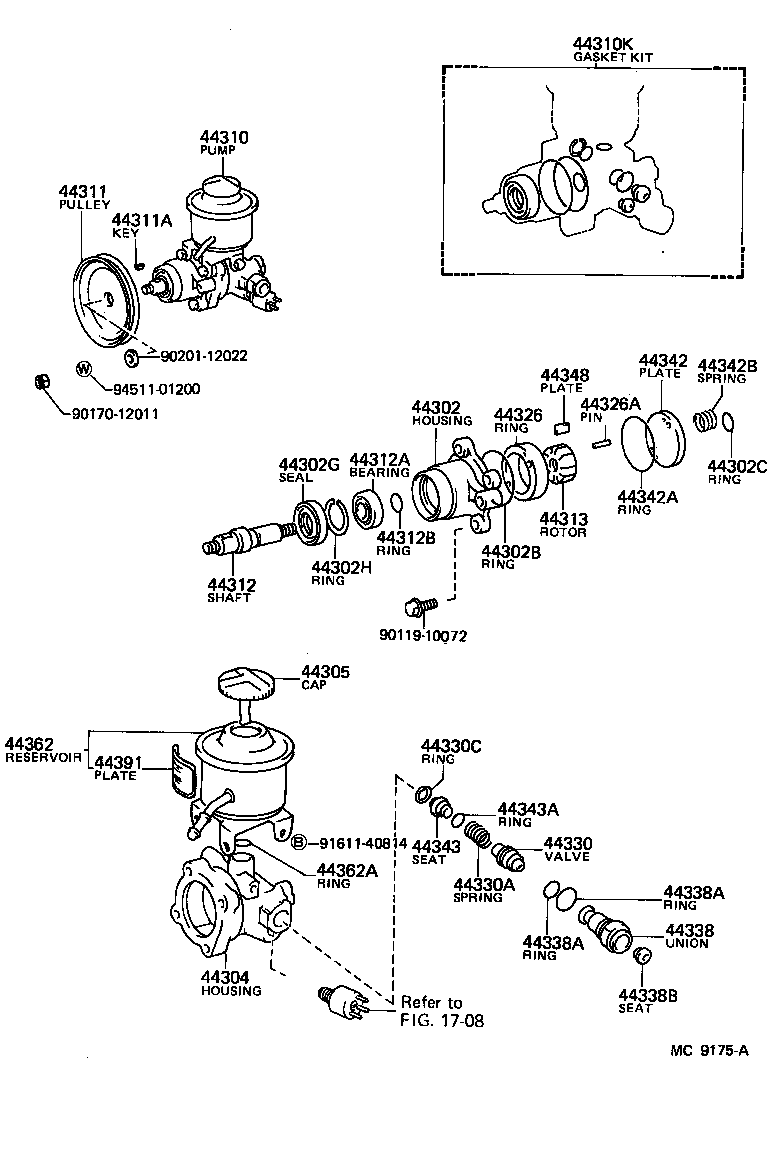

| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-14010 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-60001 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 96711-19016 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-24001 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-28010 |
YM25;YM20,21..FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44304-28011 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-30020 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-27011 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44320-27010 |
YM25;YM20,21..FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44310K - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-14010 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12010 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12010 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17004 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15001 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12010 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ無し |
1 | ||
| 44313-12020 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ 1,MARK 1 |
1 | ||
| 44313-12040 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ 3,MARK 3 |
1 | ||
| 44313-12030 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ 2,MARK 2 |
1 | ||
| 44313-12050 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ 4,MARK 4 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12010 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ無し |
1 | ||
| 44325-12040 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ 3,MARK 3 |
1 | ||
| 44325-12020 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ 1,MARK 1 |
1 | ||
| 44325-12050 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ 4,MARK 4 |
1 | ||
| 44325-12030 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ 2,MARK 2 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL 長さ=25,外径=5.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12150 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ C,MARK C |
1 | ||
| 44330-12130 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ A,MARK A |
1 | ||
| 44330-12140 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ B,MARK B |
1 | ||
| 44330-12180 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ F,MARK F |
1 | ||
| 44330-12170 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ E,MARK E |
1 | ||
| 44330-12160 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL ﾏｰｸ D,MARK D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12447 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
2 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-14040 |
YM25;YM20,21..FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44308-14041 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL 外径=17.0,内径=13.0,ID=14,OD=17 |
1 | ||
| 90301-22001 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL 外径=25.5,内径=22.5,ID=22.5,OD=25.5 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL 外径=17.0,内径=13.0,ID=14,OD=17 |
1 | ||
| 90301-22001 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL 外径=25.5,内径=22.5,ID=22.5,OD=25.5 |
1 | ||
| 44338B - SEAT, UNION(FOR PRESSURE PORT UNION) | ||||
| 90410-06004 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-12010 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-23014 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12010 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12030 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL 長さ=14.993,ROTOR MARK 2 |
10 | ||
| 44345-12010 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL 長さ=14.997,ROTOR NO MARK |
10 | ||
| 44345-12040 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL 長さ=14.991,ROTOR MARK 3 |
10 | ||
| 44345-12050 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL 長さ=14.989,ROTOR MARK 4 |
10 | ||
| 44345-12020 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL 長さ=14.995,ROTOR MARK 1 |
10 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44306-27010 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 96711-19013 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-30020 |
YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90170-12011 | ||||
| 90201-12022 | ||||
| 91611-40814 | ||||
| 94511-01200 | ||||
| Linked diagrams | ||||
| 1708 | ||||
