YM25-JDLT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Sep 1986
Engine 1YJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1YJ,2YU

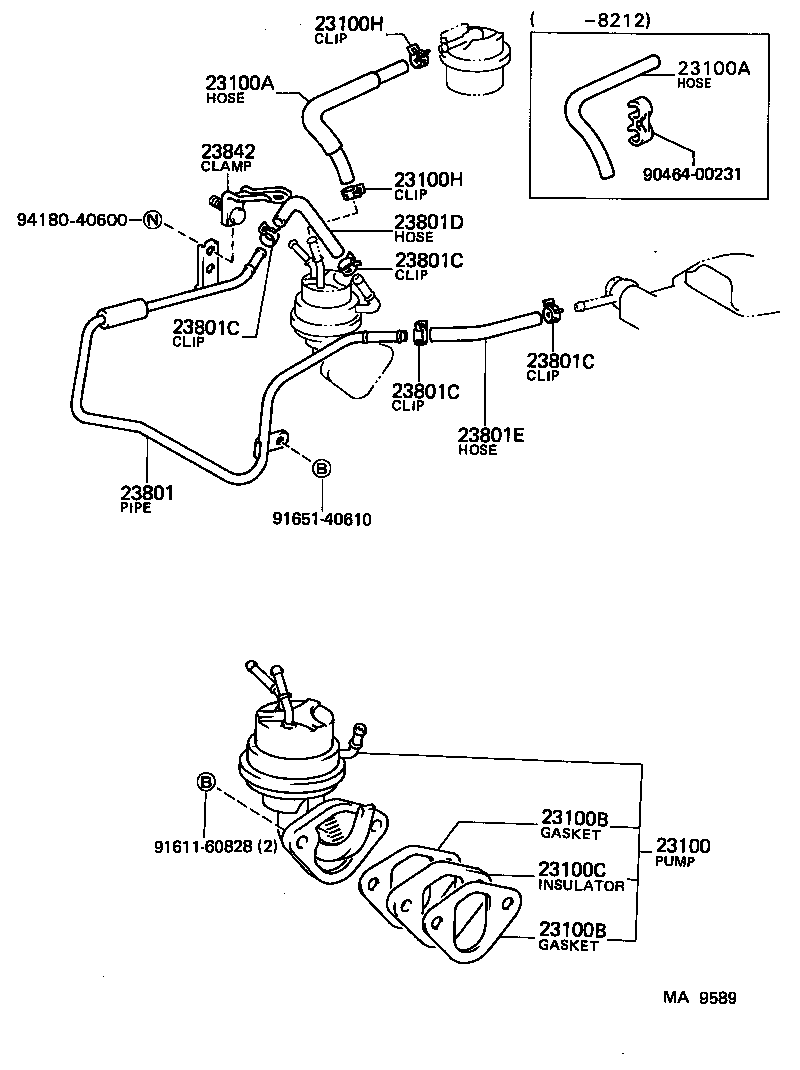

Click highlighted areas on diagram

diagram 23100 23100A 23100A 23100B 23100B 23100C 23100H 23100H 23801 23801C 23801C 23801C 23801C 23801D 23801E 23842 9046400231 9161160828 9165140610 9418040600
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-79015

1YJ,2YU..YM2#

 1
23100A - HOSE, FUEL
95332-06030

1YJ,2YU..YM2#

*H,L=260

 1
23100A - HOSE, FUEL
95332-06030

1YJ,2YU..YM2#

*H,L=260

 1
23100B - GASKET, FUEL PUMP
90923-05005

1YJ,2YU..YM2#

 2
23100B - GASKET, FUEL PUMP
90923-05005

1YJ,2YU..YM2#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

1YJ,2YU..YM2#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

1YJ,2YU..YM2#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

1YJ,2YU..YM2#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-71010

1YJ,2YU..YM2#

 1
23811-71011

1YJ,2YU..YM2#

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

1YJ,2YU..YM2#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

1YJ,2YU..YM2#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

1YJ,2YU..YM2#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

1YJ,2YU..YM2#

 2
23801D - HOSE, FUEL PIPE, NO.1
95332-06010

1YJ,2YU..YM2#

*H,L=100

 1
23801E - HOSE, FUEL PIPE, NO.2
95332-06010

1YJ,2YU..YM2#

L=100

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-71011

1YJ,2YU..YM2#

 1
23841-71010

1YJ,2YU..YM2#

 1
Common parts
90464-00231
91611-60828
91651-40610
94180-40600
