YM25-JDLT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Sep 1986
Engine 1YJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1YJ,2YU

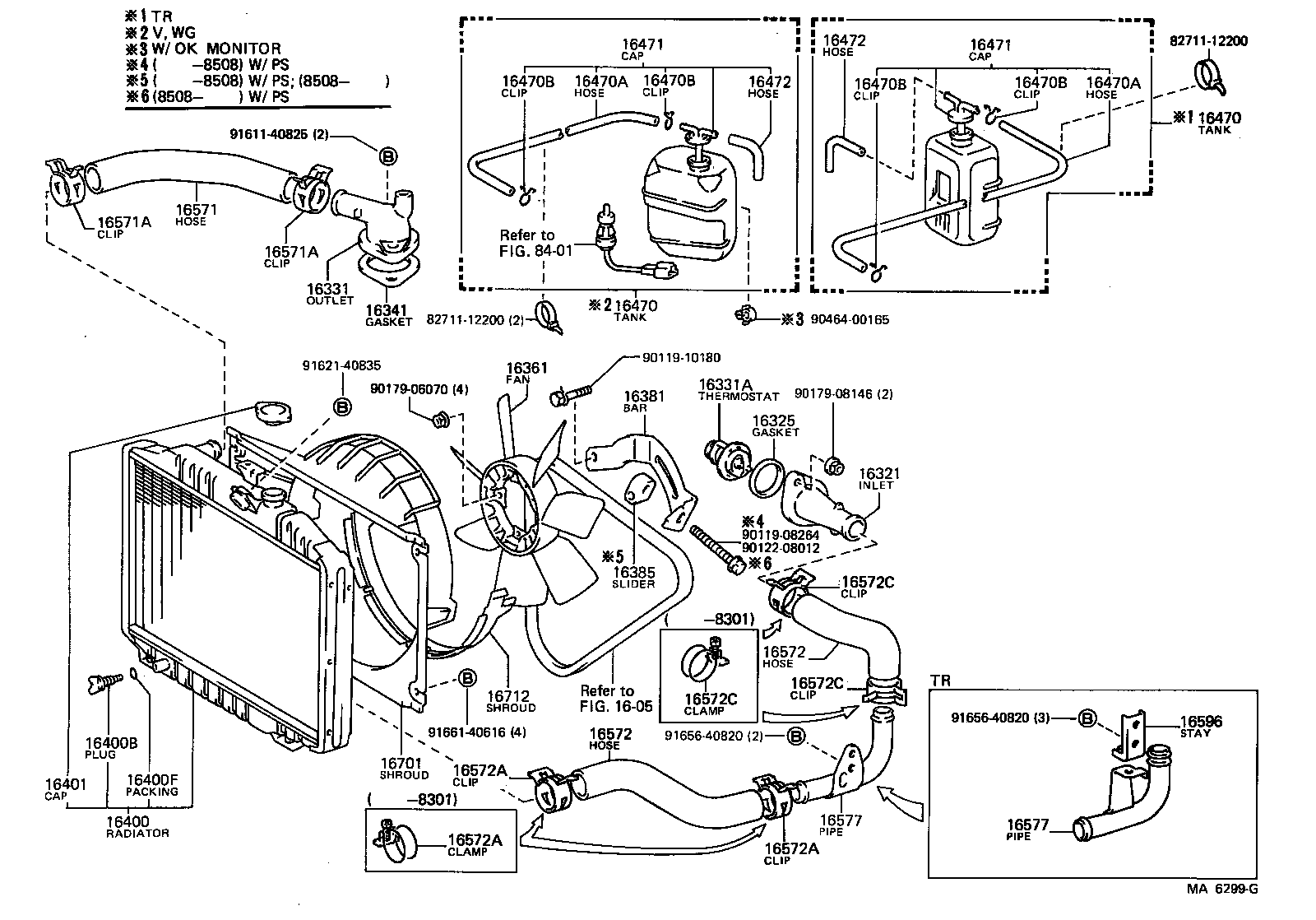

Click highlighted areas on diagram

diagram 1605 16321 16325 16331 16331A 16341 16361 16381 16385 16400 16400B 16400F 16401 16470 16470 16470A 16470A 16470B 16470B 16470B 16470B 16471 16471 16472 16472 16571 16571A 16571A 16572 16572 16572A 16572A 16572A 16572C 16572C 16572C 16577 16577 16596 16701 16712 8271112200 8271112200 8401 9011908264 9011910180 9012208012 9017906070 9017908146 9046400165 9161140825 9162140835 9165640820 9165640820 9166140616
Part # Description Qty Price
16321 - INLET, WATER
16321-71010

1YJ,2YU..YM2#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

1YJ,2YU..YM2#

 1
16331 - OUTLET, WATER
16331-71010

1YJ,2YU..YM2#

 1
16331A - THERMOSTAT
90916-03069

1YJ,2YU..YM2#

*WAX 82−95,*WAX 82-95,*(F)

 1
90916-03046

1YJ,2YU..YM2#

*WAX 82−95,*WAX 82-95,*(F)

 1
16341 - GASKET, WATER OUTLET
16341-71010

1YJ,2YU..YM2#

 1
16361 - FAN
16361-38010

1YJ..YM25

 1
16361-38010

1YJ,2YU..YM2#

 1
16361-44041

1YJ..YM25

 1
16381 - BAR, FAN BELT ADJUSTING
16381-71010

1YJ,2YU..YM2#

 1
16381-73011

1YJ..YM25

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-71010

1YJ..YM25

 1
16385-71010

2YU..YM21..HRF..XL;1YJ,2YU..YM2#..03S,05S,06S,07S,08S

W/PS

 1
16400 - RADIATOR ASSY
16400-71050

1YJ..YM25

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

1YJ,2YU..YM2#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

1YJ,2YU..YM2#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

1YJ,2YU..YM2#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-95710

1YJ..YM25

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-95710

1YJ..YM25

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12015

1YJ..YM25

長さ=1300

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12015

1YJ..YM25

長さ=1300

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1YJ,2YU..YM2#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1YJ,2YU..YM2#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1YJ,2YU..YM2#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1YJ,2YU..YM2#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-95706

1YJ..YM25

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-95706

1YJ..YM25

 1
16472 - HOSE, BREATHER
85338-22020

1YJ..YM25

 1
16472 - HOSE, BREATHER
85338-22020

1YJ..YM25

 1
16571 - HOSE, RADIATOR, INLET
16571-71020

1YJ,2YU..YM2#

 1
16572 - HOSE, RADIATOR, OUTLET
16572-71020

1YJ,2YU..YM2#

WATER PUMP SIDE

 1
16573-71010

1YJ,2YU..YM2#

RADIATOR SIDE

 1
16572 - HOSE, RADIATOR, OUTLET
16572-71020

1YJ,2YU..YM2#

WATER PUMP SIDE

 1
16573-71010

1YJ,2YU..YM2#

RADIATOR SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10440

1YJ,2YU..YM2#

 2
90467-37001

1YJ,2YU..YM2#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10440

1YJ,2YU..YM2#

 2
90467-37001

1YJ,2YU..YM2#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10440

1YJ,2YU..YM2#

 2
90467-37001

1YJ,2YU..YM2#

 2
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
90467-37001

1YJ,2YU..YM2#

 2
96111-10440

1YJ,2YU..YM2#

 2
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
90467-37001

1YJ,2YU..YM2#

 2
96111-10440

1YJ,2YU..YM2#

 2
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
90467-37001

1YJ,2YU..YM2#

 2
96111-10440

1YJ,2YU..YM2#

 2
16577 - PIPE, RADIATOR, NO.7
16577-71020

1YJ..YM25

 1
16577 - PIPE, RADIATOR, NO.7
16577-71020

1YJ..YM25

 1
16596 - STAY, RADIATOR PIPE
16596-71010

1YJ..YM25

 1
16701 - SHROUD SUB-ASSY, FAN
16711-71020

1YJ,2YU..YM2#

 1
16712 - SHROUD, FAN, NO.2
16712-71020

1YJ,2YU..YM2#

 1
Common parts
82711-12200
90119-08264
90119-10180
90122-08012
90179-06070
90179-08146
90464-00165
91611-40825
91621-40835
91656-40820
91661-40616
Linked diagrams
1605
8401
