YM21G-QR (1982)
Toyota Lite/Townace Truck
Production
Oct 1982
-
Aug 1985
Engine
2YU
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210-8508)2YU

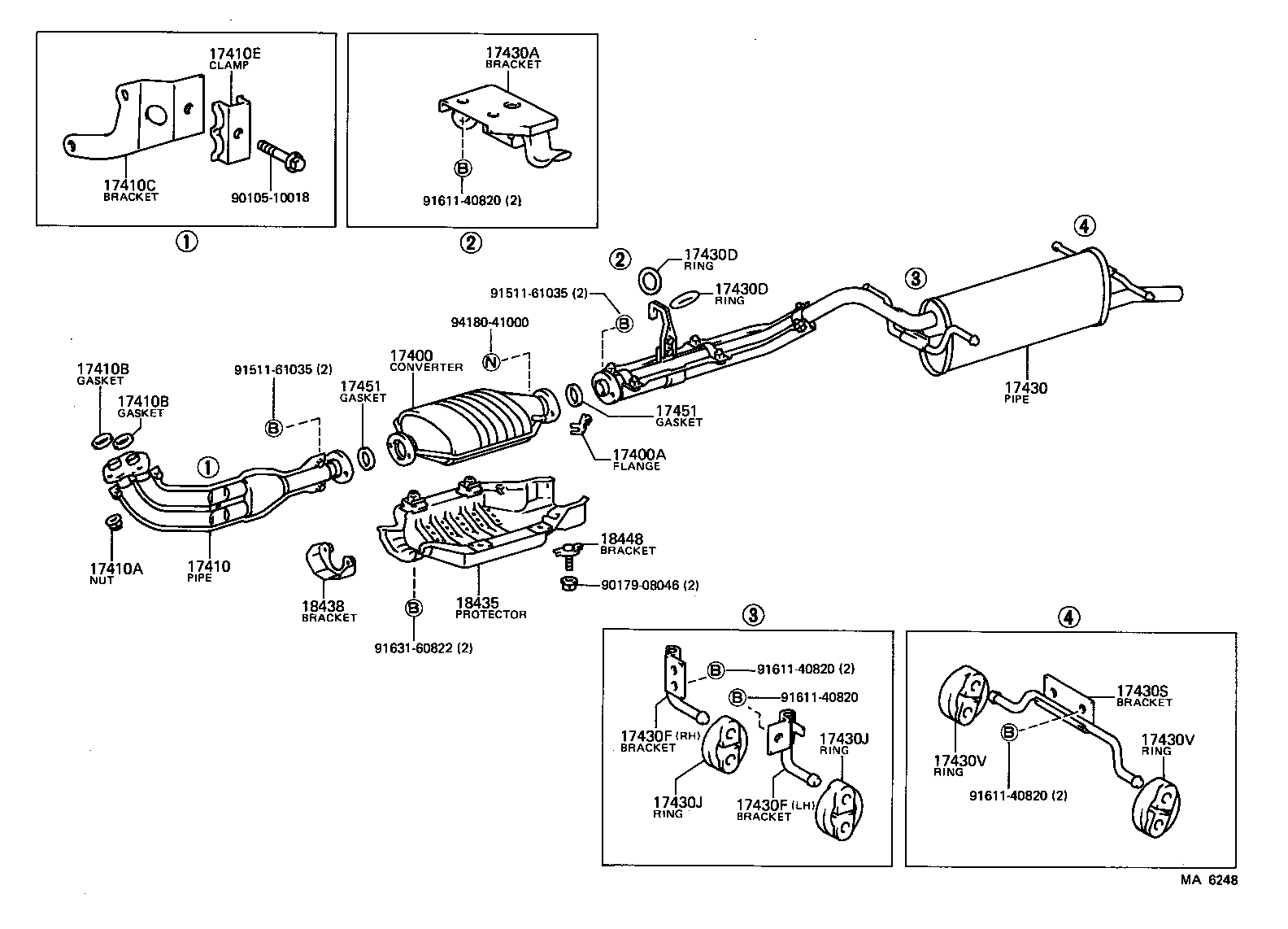

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-72011 |
2YU..YM21 |
1 | ||
| 17400A - FLANGE, THERMOSENSER INLET | ||||
| 18491-28010 |
2YU..YM21 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-72010 |
2YU..YM21 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10010 |
13TU,1C,4KJ,1YJ,2YU..CM2#,KM2#,TM20,YM2# |
3 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-72010 |
1YJ,2YU..YM2# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-72030 |
2YU..YM21 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17507-72010 |
2YU..YM21 |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90301-34207 |
13TU,2YU..TM20,YM21 |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90301-34207 |
13TU,2YU..TM20,YM21 |
2 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17566-72010 |
2YU..YM21 LH |
1 | ||
| 17562-72020 |
2YU..YM21 RH |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17566-72010 |
2YU..YM21 LH |
1 | ||
| 17562-72020 |
2YU..YM21 RH |
1 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17565-15010 |
2YU..YM21 |
2 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17565-15010 |
2YU..YM21 |
2 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17564-72010 |
2YU..YM21 |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-15010 |
2YU..YM21 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-15010 |
2YU..YM21 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
2YU..YM21 RR |
1 | ||
| 90917-06023 |
2YU..YM21 FR |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
2YU..YM21 RR |
1 | ||
| 90917-06023 |
2YU..YM21 FR |
1 | ||
| 18435 - PROTECTOR, CATALYTIC CONVERTER | ||||
| 18407-28011 |
2YU..YM21 |
1 | ||
| 18438 - BRACKET, CONNECTOR PROTECTOR, FRONT | ||||
| 17582-72010 |
2YU..YM21 |
1 | ||
| 18448 - BRACKET, CONVERTER PROTECTOR, CENTER | ||||
| 18448-43010 |
2YU..YM21 |
2 | ||
| Common parts | ||||
| 90105-10018 | ||||
| 90179-08046 | ||||
| 91511-61035 | ||||
| 91611-40820 | ||||
| 91631-60822 | ||||
| 94180-41000 | ||||
