YM21G-MXZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 2YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8508)V,WG

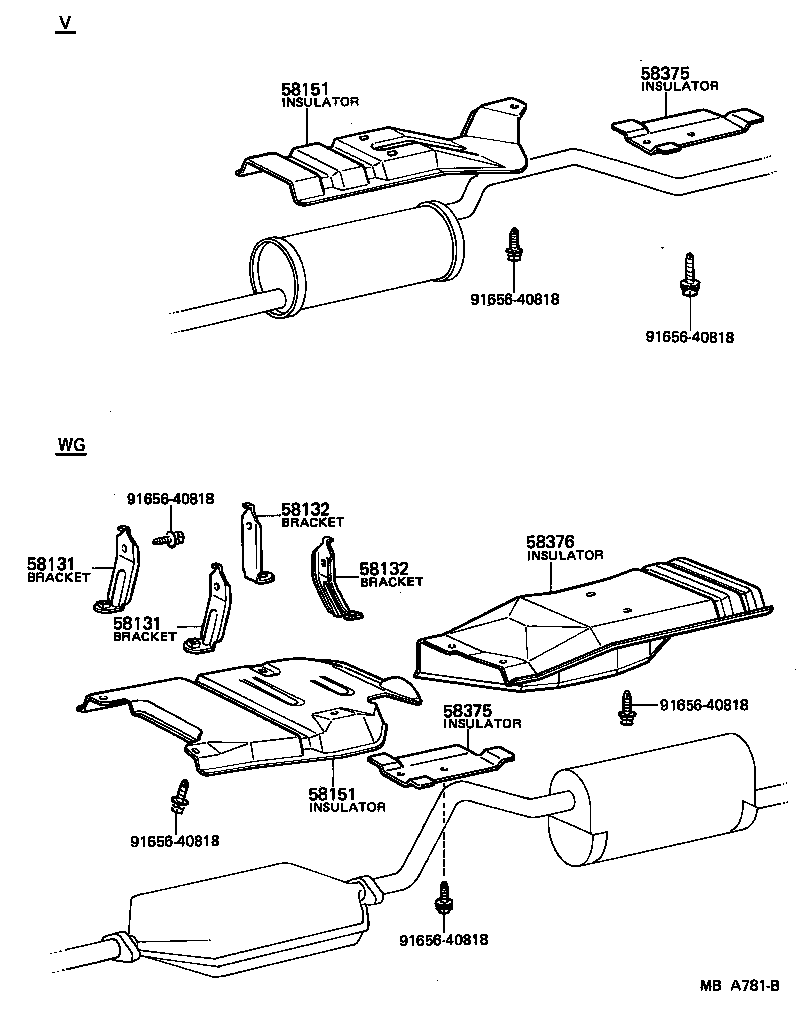

Click highlighted areas on diagram

diagram 58131 58131 58132 58132 58151 58151 58375 58375 58376 9165640818 9165640818 9165640818 9165640818 9165640818 9165640818
Part # Description Qty Price
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58708-95A00

TM20,YM21

 2
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58708-95A00

TM20,YM21

 2
58132 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58708-95A00

YM21

LH

 1
58132 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58708-95A00

YM21

LH

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58711-95704

YM21

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58711-95704

YM21

 1
58375 - INSULATOR, REAR FLOOR HEAT, NO.1
58713-95701

YM21

 1
58375 - INSULATOR, REAR FLOOR HEAT, NO.1
58713-95701

YM21

 1
58376 - INSULATOR, REAR FLOOR HEAT, NO.2
58712-95700

TM20,YM21

 1
Common parts
91656-40818
