YM21G-MX (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 2YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

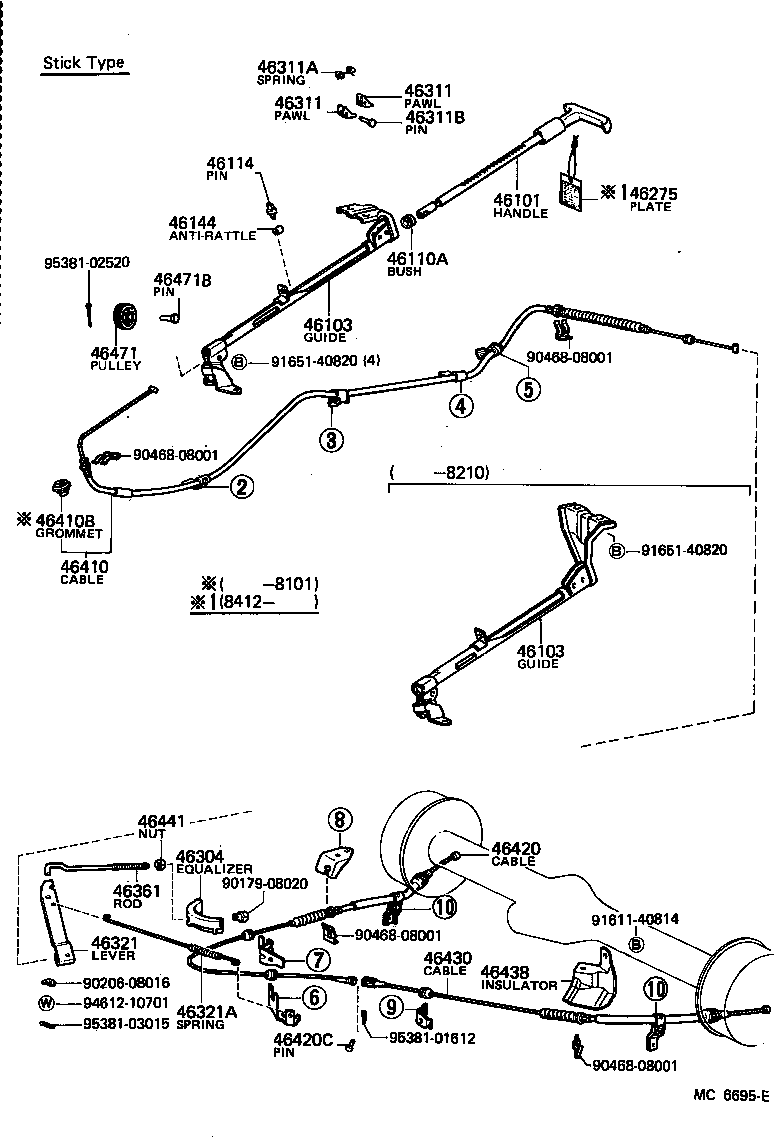

ILLUST NO. 1 OF 2(7910-8508)V,WG..MTM..ST

Click highlighted areas on diagram

diagram 46101 46103 46103 46110A 46114 46144 46275 46304 46311 46311 46311A 46311B 46321 46321A 46361 46410 46410B 46420 46420C 46430 46438 46441 46471 46471B 9017908020 9020608016 9046808001 9046808001 9046808001 9046808001 9161140814 9165140820 9165140820 9461210701 9538101612 9538102520 9538103015
Part # Description Qty Price
46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46101-26030

CM2#,KM2#,TM20,YM2#..MTM

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-12048

CM2#,KM2#,TM20,YM2#..MTM

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

CM2#,KM2#,TM20,YM2#..MTM

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-20010

CM2#,KM2#,TM20,YM2#..MTM

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-27010

CM20,KM21,YM20,21..V,WG

 1
46311 - PAWL, PARKING BRAKE
46311-30041

CM2#,KM2#,TM20,YM2#..MTM

 2
46311 - PAWL, PARKING BRAKE
46311-30041

CM2#,KM2#,TM20,YM2#..MTM

 2
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-08106

CM2#,KM2#,TM20,YM2#..MTM

 1
46311B - PIN, PARKING BRAKE PAWL PIVOT
46313-40010

CM2#,KM2#,TM20,YM2#..MTM

 2
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-27062

CM20,KM21,YM20,21..(V,WG)..MTM..ST

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-27051

CM20,KM21,YM20,21..(V,WG)..ST

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-06032

CM20,KM2#,TM20,YM20,21

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-27051

CM20,KM21,YM20,21..(V,WG)..ST

 1
46441 - NUT, WIRE ADJUSTING, NO.1
94120-40800

CM20,KM2#,TM20,YM20,21..MTM

 1
46471 - PULLEY, WIRE
46471-20010

CM2#,KM2#,TM20,YM2#..MTM

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08017

CM2#,KM2#,TM20,YM2#..MTM

 1
Common parts
90179-08020
90206-08016
90468-08001
91611-40814
91651-40820
94612-10701
95381-01612
95381-02520
95381-03015
