YM21G-MSZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 2YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )KM21,YM2#

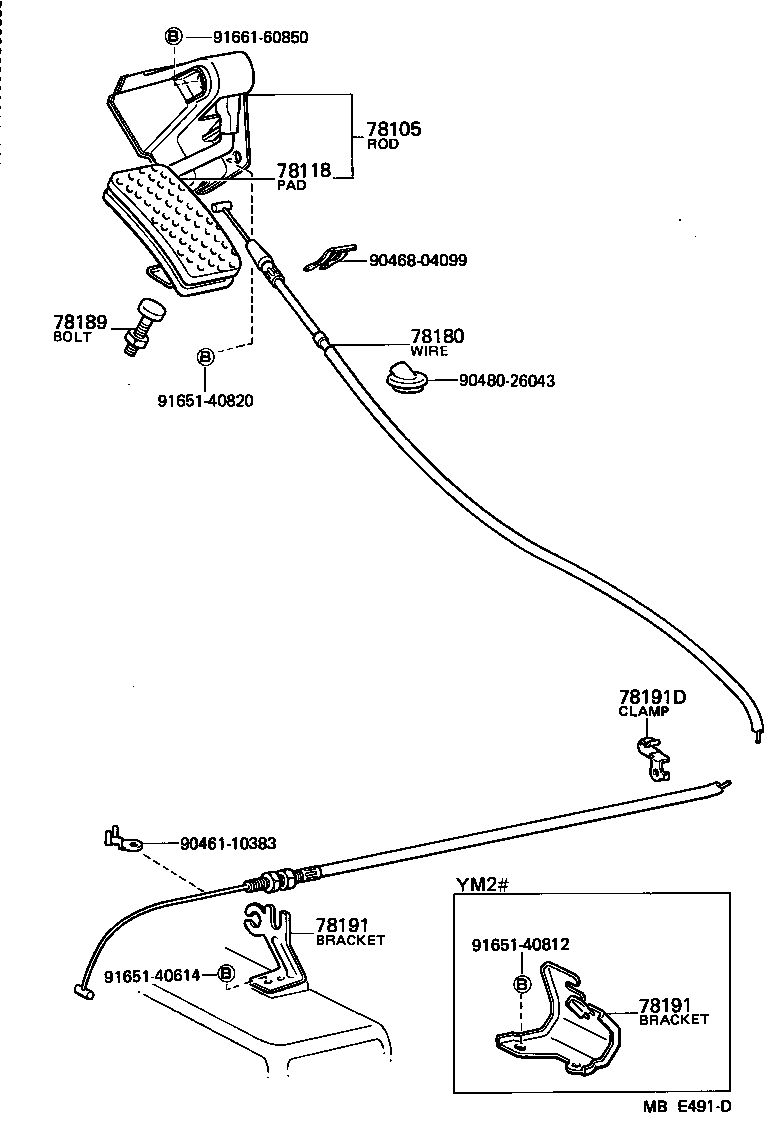

Click highlighted areas on diagram

diagram 78105 78118 78180 78189 78191 78191 78191D 9046110383 9046804099 9048026043 9165140614 9165140812 9165140820 9166160850
Part # Description Qty Price
78118 - PAD, ACCELERATOR PEDAL
78119-95700

CM2#,KM2#,TM20,YM2#

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95713

YM2#

 1
78150-95717

YM20,21

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78107-95A00

CM20,KM2#,TM20,YM20,21..V,WG

 1
78191D - CLAMP, ACCELERATOR CONTROL CABLE
78183-95702

YM20,21

 1
Common parts
90461-10383
90468-04099
90480-26043
91651-40614
91651-40812
91651-40820
91661-60850
