YM21G-MSZ (1982)
Toyota Lite/Townace Truck

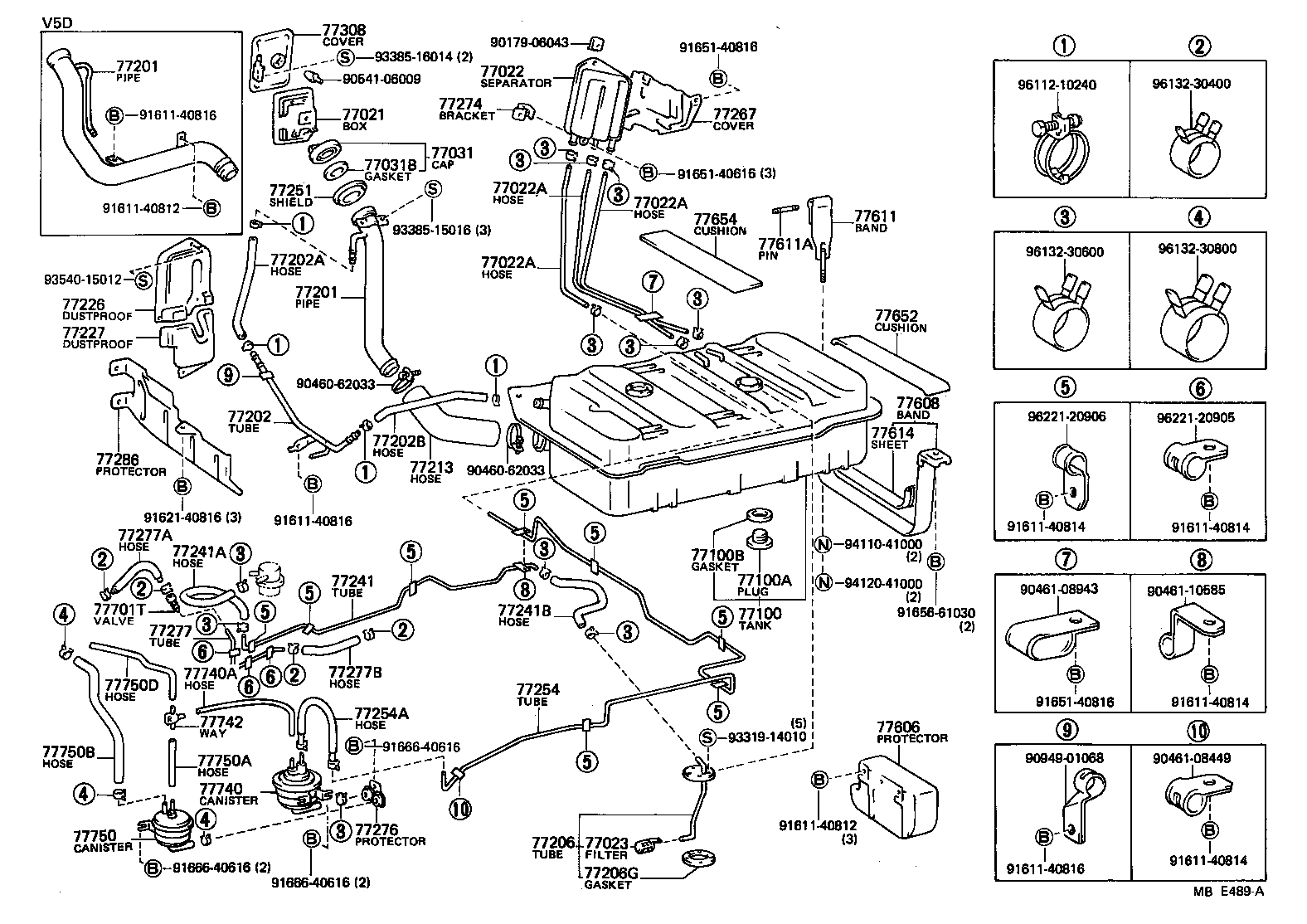

(8210-8501)KM21,YM20,21..V,WG..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 77301-95700 |
CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77271-28011 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-27110 |
YM20,21 L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-27110 |
YM20,21 L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-27110 |
YM20,21 L=600 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
KM21,YM20,21..V,WG |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-27051 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77001-27180 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20006 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-27101 |
CM20,YM21..WG;CM20,KM21,YM20..V4D..ST |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-27101 |
CM20,YM21..WG;CM20,KM21,YM20..V4D..ST |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77203-27100 |
YM21;KM21,YM20..V4D..ST |
1 | ||
| 77203-27110 |
YM21;KM21,YM20..V4D..ST |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 90445-24022 |
CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D..ST |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-27050 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77259-27020 |
CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D..ST |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-27041 |
YM21;KM21,YM20..V4D..ST |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
YM20,21 *H,L=180 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
KM21,YM20,21..(V,WG)..ST *H,L=300 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-10010 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-27021 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77279-27010 |
KM21,YM20,21..V,WG L=420 |
1 | ||
| 77267 - COVER, FUEL EVAPORATIVE TUBE | ||||
| 77267-95700 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
1 | ||
| 77274 - BRACKET, FUEL EVAPORATIVE SEPARATOR | ||||
| 77274-27010 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-27010 |
KM21,YM20,21..V,WG |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-27220 |
YM21;KM21,YM20..V4D..ST |
1 | ||
| 77255-27050 |
YM21;KM21,YM20..V4D..ST |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-04040 |
YM20,21 *H,L=320 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04020 |
YM21;KM21,YM20..V4D..ST *H,L=150 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77310-95700 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-27010 |
CM20,KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-27013 |
CM20,KM21,YM20,21..(V,WG)..ST |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-27020 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77614-36040 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
2 | ||
| 77681-27020 |
CM20,KM21,YM20,21..(V,WG)..ST |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-27020 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
2 | ||
| 77651-27100 |
CM20,KM21,YM20,21..(V,WG)..ST |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-27030 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
1 | ||
| 77651-27090 |
CM20,KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-27070 |
YM20,21 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-10630 |
YM20,21 *H,L=300,ﾏｰｸ=#6 |
1 | ||
| 77742 - WAY, 3(FOR CANISTER) | ||||
| 90413-04005 |
TM20,YM2# |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77740-27060 |
YM20,21 |
1 | ||
| Common parts | ||||
| 90179-06043 | ||||
| 90460-62033 | ||||
| 90461-08449 | ||||
| 90461-08943 | ||||
| 90461-10585 | ||||
| 90541-06009 | ||||
| 90949-01068 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91621-40816 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91656-61030 | ||||
| 91666-40616 | ||||
| 93319-14010 | ||||
| 93385-15016 | ||||
| 93385-16014 | ||||
| 93540-15012 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 96112-10240 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96221-20905 | ||||
| 96221-20906 | ||||

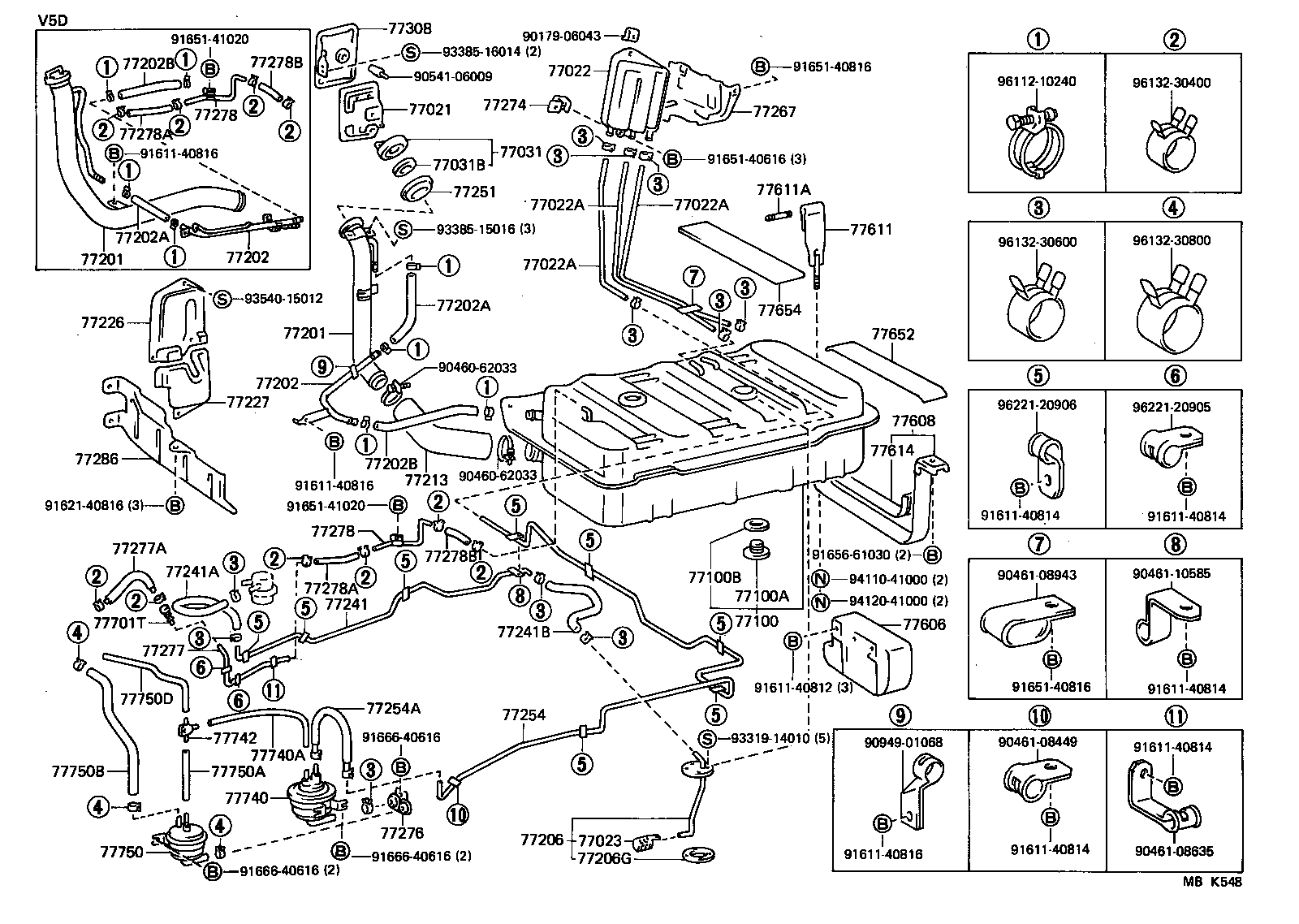

(8501-8508)KM21,YM20,21..V,WG..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 77301-95700 |
CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77271-28011 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-27110 |
YM20,21 L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-27110 |
YM20,21 L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-27110 |
YM20,21 L=600 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
KM21,YM20,21..V,WG |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-27051 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77001-27180 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20006 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-27101 |
CM20,YM21..WG;CM20,KM21,YM20..V4D..ST |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-27101 |
CM20,YM21..WG;CM20,KM21,YM20..V4D..ST |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77203-27100 |
YM21;KM21,YM20..V4D..ST |
1 | ||
| 77203-27110 |
YM21;KM21,YM20..V4D..ST |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77203-27100 |
YM21;KM21,YM20..V4D..ST |
1 | ||
| 77203-27110 |
YM21;KM21,YM20..V4D..ST |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 90445-24022 |
CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D..ST |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 90445-24022 |
CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D..ST |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-27050 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77259-27020 |
CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D..ST |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-27041 |
YM21;KM21,YM20..V4D..ST |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
YM20,21 *H,L=180 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
KM21,YM20,21..(V,WG)..ST *H,L=300 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-10010 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-27021 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77279-27010 |
KM21,YM20,21..V,WG L=420 |
1 | ||
| 77267 - COVER, FUEL EVAPORATIVE TUBE | ||||
| 77267-95700 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
1 | ||
| 77274 - BRACKET, FUEL EVAPORATIVE SEPARATOR | ||||
| 77274-27010 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-27010 |
KM21,YM20,21..V,WG |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-27220 |
YM21;KM21,YM20..V4D..ST |
1 | ||
| 77255-27050 |
YM21;KM21,YM20..V4D..ST |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-04040 |
YM20,21 *H,L=320 |
1 | ||
| 77278 - TUBE, FUEL RETURN, NO.2 | ||||
| 77207-27010 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77278 - TUBE, FUEL RETURN, NO.2 | ||||
| 77207-27010 |
KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-04020 |
KM21,YM20,21..(V,WG)..ST *H,L=200 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-04020 |
KM21,YM20,21..(V,WG)..ST *H,L=200 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95332-04010 |
KM21,YM20,21..(V,WG)..ST *H,L=90 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95332-04010 |
KM21,YM20,21..(V,WG)..ST *H,L=90 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77310-95700 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-27010 |
CM20,KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-27013 |
CM20,KM21,YM20,21..(V,WG)..ST |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-27020 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77614-36040 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
2 | ||
| 77681-27020 |
CM20,KM21,YM20,21..(V,WG)..ST |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-27020 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
2 | ||
| 77651-27100 |
CM20,KM21,YM20,21..(V,WG)..ST |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-27030 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
1 | ||
| 77651-27090 |
CM20,KM21,YM20,21..(V,WG)..ST |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-27070 |
YM20,21 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-10630 |
YM20,21 *H,L=300,ﾏｰｸ=#6 |
1 | ||
| 77742 - WAY, 3(FOR CANISTER) | ||||
| 90413-04005 |
TM20,YM2# |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77740-27060 |
YM20,21 |
1 | ||
| Common parts | ||||
| 90179-06043 | ||||
| 90460-62033 | ||||
| 90461-08449 | ||||
| 90461-08635 | ||||
| 90461-08943 | ||||
| 90461-10585 | ||||
| 90541-06009 | ||||
| 90949-01068 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91621-40816 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-41020 | ||||
| 91656-61030 | ||||
| 91666-40616 | ||||
| 93319-14010 | ||||
| 93385-15016 | ||||
| 93385-16014 | ||||
| 93540-15012 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 96112-10240 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96221-20905 | ||||
| 96221-20906 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
