YM21G-MSZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 2YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)FXV,GXL,MTP,S

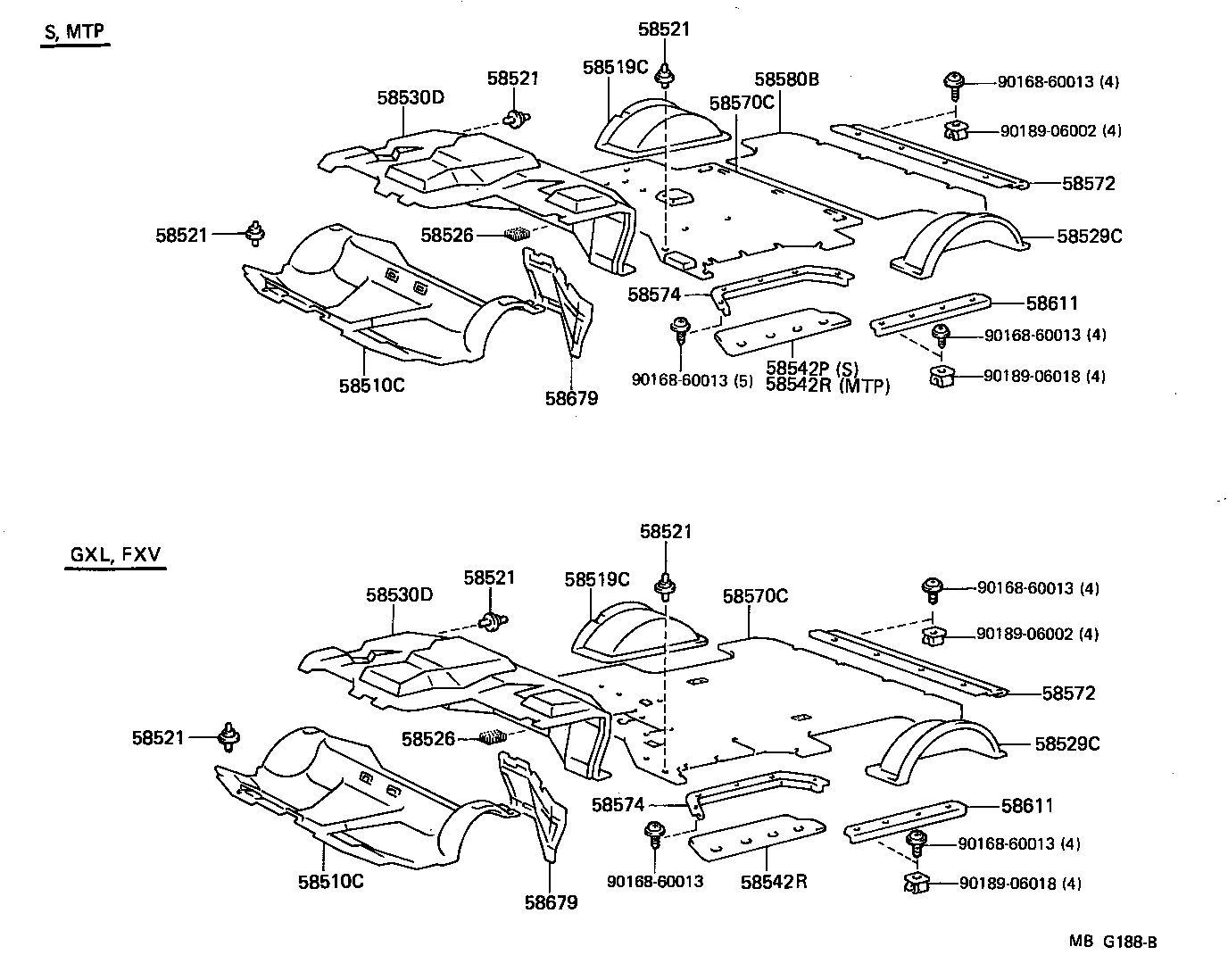

Click highlighted areas on diagram

diagram 58510C 58510C 58519C 58519C 58521 58521 58521 58521 58521 58521 58526 58526 58529C 58529C 58530D 58530D 58542P 58542R 58542R 58570C 58570C 58572 58572 58574 58574 58580B 58611 58611 58679 58679 9016860013 9016860013 9016860013 9016860013 9016860013 9016860013 9018906002 9018906002 9018906018 9018906018
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58501-9578004

CM20,YM21..5F..(MTP,S,XL)

BLUE GRAY,BLUE

 1
58501-9578006

CM20,YM21..5F..(MTP,S,XL)

BROWN,BROWN

 1
58501-9578003

YM21..S

SHADOW GRAY,GRAY

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58501-9578004

CM20,YM21..5F..(MTP,S,XL)

BLUE GRAY,BLUE

 1
58501-9578006

CM20,YM21..5F..(MTP,S,XL)

BROWN,BROWN

 1
58501-9578003

YM21..S

SHADOW GRAY,GRAY

 1
58519C - CARPET, REAR WHEEL HOUSE, RH
62613-9570704

CM20,YM21..MTP,S,XL

BLUE GRAY,BLUE

 1
62613-9570706

CM20,YM21..MTP,S,XL

BROWN,BROWN

 1
62613-9570703

YM21..S

SHADOW GRAY,GRAY

 1
58519C - CARPET, REAR WHEEL HOUSE, RH
62613-9570704

CM20,YM21..MTP,S,XL

BLUE GRAY,BLUE

 1
62613-9570706

CM20,YM21..MTP,S,XL

BROWN,BROWN

 1
62613-9570703

YM21..S

SHADOW GRAY,GRAY

 1
58526 - HOOK, MALE, NO.2
90530-25002

CM20,YM21..CS7,FXV,GXL,MTP,S,XL

 1
58526 - HOOK, MALE, NO.2
90530-25002

CM20,YM21..CS7,FXV,GXL,MTP,S,XL

 1
58529C - CARPET, REAR WHEEL HOUSE, LH
62614-9570706

CM20,YM21..MTP,S,XL

BROWN,BROWN

 1
62614-9570703

YM21..S

SHADOW GRAY,GRAY

 1
62614-9570704

CM20,YM21..MTP,S,XL

BLUE GRAY,BLUE

 1
58529C - CARPET, REAR WHEEL HOUSE, LH
62614-9570706

CM20,YM21..MTP,S,XL

BROWN,BROWN

 1
62614-9570703

YM21..S

SHADOW GRAY,GRAY

 1
62614-9570704

CM20,YM21..MTP,S,XL

BLUE GRAY,BLUE

 1
58530D - CARPET, FRONT FLOOR, REAR
58505-9577506

YM21..MTP,S

BROWN,BROWN

 1
58505-9577504

YM21..MTP,S

BLUE GRAY,BLUE

 1
58505-9577503

YM21..S

SHADOW GRAY,GRAY

 1
58530D - CARPET, FRONT FLOOR, REAR
58505-9577506

YM21..MTP,S

BROWN,BROWN

 1
58505-9577504

YM21..MTP,S

BLUE GRAY,BLUE

 1
58505-9577503

YM21..S

SHADOW GRAY,GRAY

 1
58542P - MAT, STEP, LH
58544-9571404

CM20,YM21..CS7,S,XL

BLUE GRAY,BLUE

 1
58544-9571406

CM20,YM21..WG..(CS7,DLX,S,STD,XL)

BROWN,BROWN

 1
58544-9571403

YM21..S

SHADOW GRAY,GRAY

 1
58542R - CARPET, STEP, LH
58509-9570804

YM21..MTP

BLUE GRAY,BLUE

 1
58509-9570816

YM21..MTP

BROWN,BROWN

 1
58542R - CARPET, STEP, LH
58509-9570804

YM21..MTP

BLUE GRAY,BLUE

 1
58509-9570816

YM21..MTP

BROWN,BROWN

 1
58570C - CARPET ASSY, REAR FLOOR
58503-9577204

YM21..MTP,S,XL

W/*SS,BLUE GRAY,BLUE

 1
58503-9577203

YM21..S

W/*SS,SHADOW GRAY,GRAY

 1
58503-9577206

YM21..MTP,S,XL

W/*SS,BROWN,BROWN

 1
58570C - CARPET ASSY, REAR FLOOR
58503-9577204

YM21..MTP,S,XL

W/*SS,BLUE GRAY,BLUE

 1
58503-9577203

YM21..S

W/*SS,SHADOW GRAY,GRAY

 1
58503-9577206

YM21..MTP,S,XL

W/*SS,BROWN,BROWN

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58633-95700

CM20,KM21,YM20,21..(V,WG)..ST

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58633-95700

CM20,KM21,YM20,21..(V,WG)..ST

 1
58574 - SET PLATE, REAR FLOOR MAT SIDE, FRONT LH
58631-95701

CM20,TM20,YM21..WG..(CS7,DLX,MTP,S,STD,XL)

 1
58574 - SET PLATE, REAR FLOOR MAT SIDE, FRONT LH
58631-95701

CM20,TM20,YM21..WG..(CS7,DLX,MTP,S,STD,XL)

 1
58580B - MAT ASSY, REAR FLOOR, REAR
58508-9570004

CM20,YM21..MTP,S,XL

BLUE GRAY,BLUE

 1
58508-9570006

CM20,YM21..MTP,S,XL

BROWN,BROWN

 1
58508-9570003

YM21..S

SHADOW GRAY,GRAY

 1
58611 - PLATE, REAR FLOOR MAT SET, SIDE
67917-95700

CM20,TM20,YM21..WG..(CS7,DLX,MTP,S,STD,SW,XL)

 1
58611 - PLATE, REAR FLOOR MAT SET, SIDE
67917-95700

CM20,TM20,YM21..WG..(CS7,DLX,MTP,S,STD,SW,XL)

 1
58679 - SILENCER, HEADER PANEL
58469-95708

YM20,21..ST

 1
58679 - SILENCER, HEADER PANEL
58469-95708

YM20,21..ST

 1
Common parts
90168-60013
90189-06002
90189-06018
